ATV630D15N4

2-year Warranty

Same Day Shipping

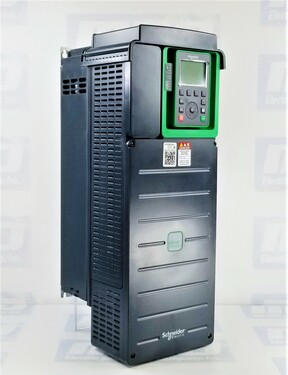

Schneider Electric ATV630D15N4

ALTIVAR 630 ATV630 VARIABLE SPEED DRIVE 15 KW 20 HP 380 TO 480 VOLT IP21

Select Condition

Refurbished

Request Quote

New

2 in stock

$2,179.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
Part NumberATV630D15N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
RangeAltivar Process ATV600
CategoryATV600
DescriptionVariable speed drive
VersionStandard
DestinationAsynchronous motors Synchronous motors
Supply Voltage380...480 V
CoolingForced convection
ApplicationProcess and utilities
ProtectionIP21IEC 61800-5-1 IP21IEC 60529
Supply Frequency50...60 Hz - 5...5 %
Max Horse Power20 hp normal duty 15 hp heavy duty
Prospective Line Isc50 kA
Output Frequency0.1…500 Hz
Switching Frequency4 kHz
CommunicationEthernet Modbus serial Modbus TCP
SafetySTO (safe torque off) SIL 3
MountingWall mount
Phase3 phase
InterfaceEthernet 2-wire RS 485
Transmission Rate10, 100 Mbits 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV630D15N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV630D15N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV630D15N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 37lbs

Want it shipped tomorrow?

  • Order within the next 23 hours and 31 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV630D15N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV630D15N4 Overview

Schneider Electric ATV630D15N4

The Schneider Electric ATV630D15N4 variable speed drive, part of the Altivar Process ATV600 series, is designed for a wide range of process and utility applications. With a power rating of 15 kW (20 hp) and a voltage range of 380 to 480V, this drive offers efficient and reliable control for asynchronous and synchronous motors.

Key Features:

Product Specific Application: Tailored for process and utilities, ensuring optimized performance in various industrial settings.

Integrated EMC Filter: Equipped with integrated EMC filters compliant with EN/IEC standards, ensuring electromagnetic compatibility and reducing interference.

IP21 Protection: The drive is rated IP21 according to IEC standards, offering protection against solid objects and providing a degree of protection against water ingress.

UL Type 1: Certified to UL 508C standards, ensuring safety and compliance with regulatory requirements.

Forced Convection Cooling: Utilizes forced convection cooling for efficient heat dissipation and thermal management.

Wide Voltage Range: Supports a rated supply voltage range of 380 to 480V, catering to different industrial power systems.

Variable Torque and Constant Torque Control: Offers control profiles for both variable torque and constant torque applications, enhancing versatility.

Safety Functions: Incorporates Safe Torque Off (STO) functionality up to SIL 3 level, ensuring safe operation.

Communication Options: Supports various communication protocols including Ethernet, Modbus serial, and Modbus TCP, enabling seamless integration into industrial networks.

Option Card Slots: Provides flexibility for additional communication modules or extension modules for digital and analog I/O.

Compact Wall Mount Design: Designed for wall mounting, saving space, and facilitating installation in industrial environments.

Comprehensive Protection: Offers extensive protection features including thermal protection for motor and drive, safe torque off, overcurrent protection, and more.

User-Friendly Interface: Features LEDs for local diagnostics and communication status, ensuring ease of monitoring and operation.

Dimensions: With dimensions of 8.31 x 21.50 x 9.13 inches (211 x 546 x 232 mm) and a net weight of 29.98 lbs (13.6 kg), it's relatively compact and lightweight for easy handling and installation.

Certifications and Standards: Compliant with various international standards including UL, EN/IEC, and ATEX, ensuring reliability and safety in diverse operating environments.

Regulation Loop: Adjustable PID regulator for precise control and regulation of motor speed.

Low Noise and Pollution: Operates at a noise level of 59.5 dB and complies with pollution degree 2 standards, minimizing environmental impact.

FAQ (Frequently Asked Questions)

What is the main application of the Schneider Electric ATV630D15N4 variable speed drive?

The ATV630D15N4 is specifically designed for process and utilities applications, offering tailored control for various industrial processes and utilities.

What is the voltage range supported by this variable speed drive?

The ATV630D15N4 supports a rated supply voltage range of 380 to 480V, making it compatible with a wide range of industrial power systems.

Does the ATV630D15N4 come with built-in protection features?

Yes, the variable speed drive incorporates extensive protection features including thermal protection for both the motor and the drive, safe torque off, overcurrent protection, and more, ensuring safe and reliable operation.

What communication options are available with the ATV630D15N4?

The ATV630D15N4 supports various communication protocols including Ethernet, Modbus serial, and Modbus TCP, enabling seamless integration into industrial networks.

Can additional communication modules be added to the ATV630D15N4?

Yes, the variable speed drive comes with option card slots, providing flexibility for adding communication modules or extension modules for digital and analog I/O as per the application requirements.

Is the ATV630D15N4 suitable for compact installations?

Yes, the ATV630D15N4 is designed for wall mounting, featuring a compact design and lightweight construction, making it suitable for space-constrained installations in industrial environments.

What certifications does the ATV630D15N4 hold?

The ATV630D15N4 is certified to various international standards including UL, EN/IEC, ATEX, TÜV, CSA, DNV-GL, ensuring reliability and compliance with regulatory requirements.

What is the noise level of the ATV630D15N4 during operation?

The variable speed drive operates at a noise level of 59.5 dB, ensuring minimal disruption to the surrounding environment.

Can the ATV630D15N4 be used for both constant torque and variable torque applications?

Yes, the ATV630D15N4 offers control profiles for both constant torque and variable torque applications, providing versatility to cater to different industrial needs.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
