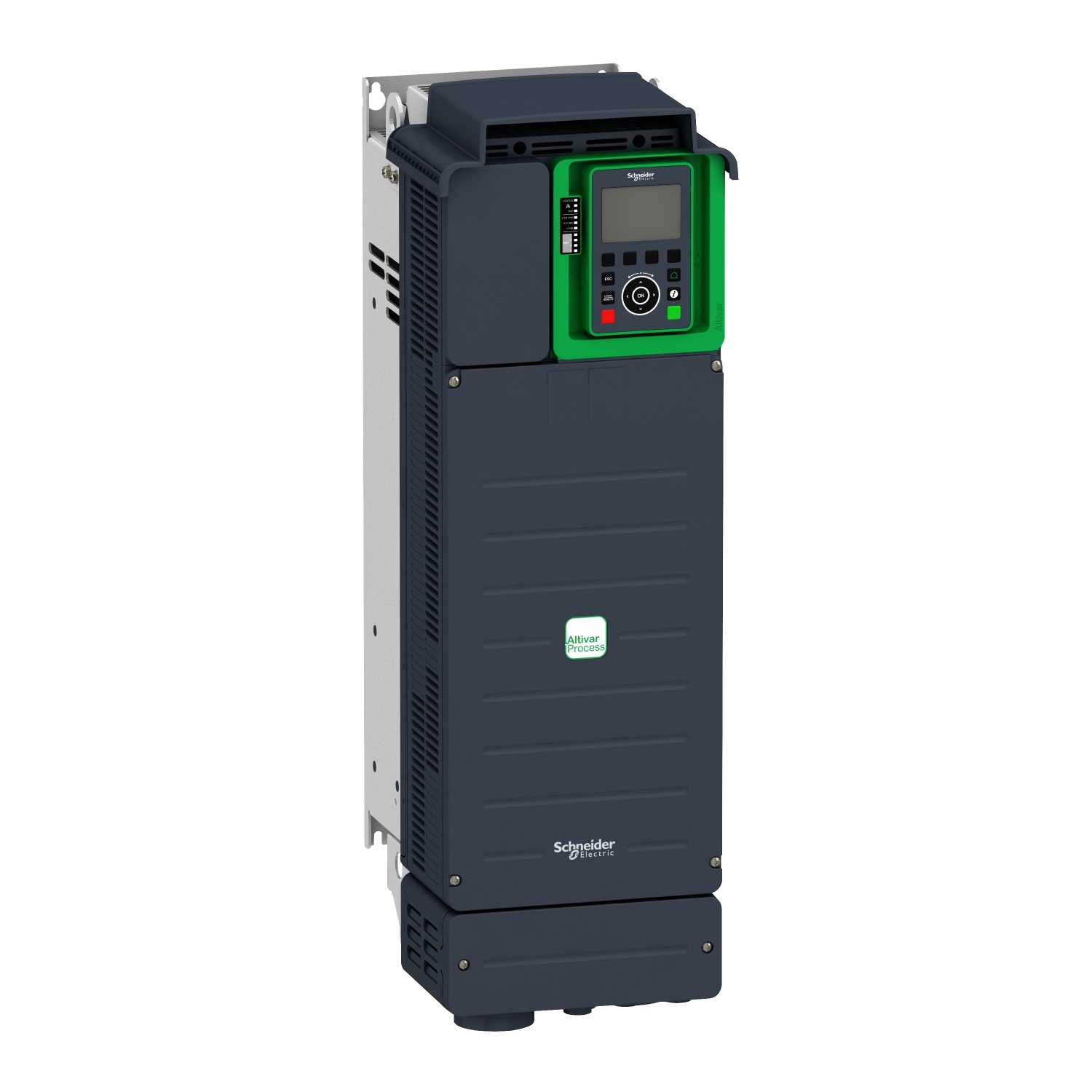

ALTIVAR Process 630 VARIABLE SPEED DRIVE, 22KW/30HP, 200/240V, IP21/UL TYPE 1
| Part Number | ATV630D22M3 |
| Manufacturer | Schneider Electric |
| Type | Drives |
| MRO Warranty | 2 Year |
| Range | Altivar |
| Category | ATV630 |
| Description | Variable Speed Drive |
| Power rating | 22 KW / 30 HP |
| Supply | 200-240 VAC (50/60 HZ) |
| Current | 92.6 AMP OUTPUT |
| Output Frequency | 0.1-500 HZ |
| Mount | Wall mount |
| Protection | IP21 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV630D22M3 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year MRO warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV630D22M3 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV630D22M3, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV630D22M3 for credit when ordering from MRO Electric
The Schneider Electric ATV630D22M3 is a high-performance variable speed drive from the Altivar Process series, designed to provide reliable motor control and energy efficiency for industrial applications. With a 22 kW (30 HP) power rating, this drive is well-suited for medium-duty operations in sectors such as manufacturing, water treatment, HVAC, and material handling.
The ATV630D22M3 supports a 3-phase input at 200–240 VAC (50/60 Hz), delivering up to 92.6 amps output current and an adjustable 0.1–500 Hz output frequency. This flexibility ensures compatibility with a wide range of motors and industrial processes, allowing precise speed control and optimized system performance.
One of the standout features of the Schneider Electric ATV630D22M3 is its Altivar Process platform, engineered for connectivity, reliability, and energy efficiency. By integrating advanced monitoring and diagnostic tools, this drive enables operators to reduce downtime, enhance process control, and lower operating costs.
The IP21 / UL Type 1 protection rating ensures reliable performance in standard industrial environments, offering protection against dust and incidental contact. Combined with its wall-mount construction, the ATV630D22M3 is easy to install in existing control systems and panels without requiring extensive modifications.
This drive also includes built-in motor protection features, helping prevent damage from overload, overheating, or short circuits. With robust design and integrated safety functions, the ATV630D22M3 delivers consistent performance even in demanding industrial applications.
The ATV630D22M3 is specifically engineered to reduce energy consumption by precisely adjusting motor speed to match application demands. This not only lowers utility costs but also extends the lifespan of motors and mechanical components.
With its wide frequency range of 0.1–500 Hz, the drive supports applications requiring high dynamic performance as well as constant torque. The versatility makes it suitable for fans, pumps, compressors, conveyors, and other industrial equipment that benefit from variable speed operation.
Backed by a 2-year MRO warranty from MRO Electric, the ATV630D22M3 ensures peace of mind and dependable long-term performance. Immediate availability and free shipping make it an excellent choice for facilities that require quick replacement or expansion of automation systems.
When combined with Schneider Electric's engineering expertise and the proven reliability of the Altivar series, the ATV630D22M3 stands out as a durable and energy-efficient drive solution for industrial automation needs.
What is the power rating of the Schneider Electric ATV630D22M3?
The ATV630D22M3 has a power rating of 22 kW, equivalent to 30 HP, making it ideal for medium-duty applications.
What input voltage does the ATV630D22M3 support?
This model supports a 3-phase input voltage of 200–240 VAC at 50/60 Hz.
What output current does the ATV630D22M3 provide?
The drive delivers up to 92.6 amps of output current, ensuring compatibility with a wide range of motor applications.
What output frequency range is available with the ATV630D22M3?
The Schneider Electric ATV630D22M3 provides an output frequency range of 0.1–500 Hz.
What enclosure rating does the ATV630D22M3 offer?
The drive has an IP21 / UL Type 1 rating, protecting against dust and incidental contact.
What mounting method is used for the ATV630D22M3?
The drive is designed for wall-mount installation, making it simple to integrate into existing systems.
Which industries commonly use the ATV630D22M3?
The ATV630D22M3 is widely used in water treatment, HVAC, manufacturing, and process industries.
How does the ATV630D22M3 improve energy efficiency?
By adjusting motor speed to match load requirements, the drive reduces energy usage and extends motor life.
What warranty is included with the ATV630D22M3?
A 2-year MRO warranty from MRO Electric and Supply backs the drive.
Why choose the ATV630D22M3 for automation needs?
The ATV630D22M3 offers reliable performance, advanced monitoring features, and long-term cost savings in industrial environments.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year MRO warranty from MRO Electric. We also carry Drives from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV630D22M3, take a look at more from our Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV630D22M3 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
