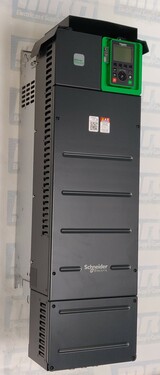

ALTIVAR 630 ATV630 VARIABLE SPEED DRIVE 55 KW 75 HP 380 TO 480 VOLT IP21
| Part Number | ATV630D55N4 |
| Manufacturer | Schneider Electric |
| Type | AC Drives |
| Warranty | 2 Year |
| Range | ATV600 |
| Product | Variable speed drive |
| Application | Process and utilities |
| Output voltage | <= power supply voltage |
| Output frequency | 0.0001...0.5 kHz |
| Mounting | Wall mount |
| Supply Frequency | 50...60 Hz - 5...5 % |
| Phases | 3 Phases |
| Prospective line Isc | 50 kA |
| Variant | Standard version |
| Destination | Asynchronous motors Synchronous motors |
| EMC filter | Integrated EN/IEC 61800-3 category C3 150 m |
| Degree of protection | UL type 1 UL 508C |
| Cooling | Forced convection |
| Supply Voltage | 380...480 V - 15...10 % |
| Motor power kW | 55 kW normal duty 45 kW heavy duty |
| Motor power hp | 75 hp normal duty 60 hp heavy duty |
| Maximum transient current | 116.6 A 60 s normal duty 132 A 60 s heavy duty |
| Line current | 97.2 A 380 V normal duty 84.2 A 480 V normal duty 81.4 A 380 V heavy duty 71.8 A 480 V heavy duty |
| Nominal switching frequency | 2.5 kHz |
| Safety function | STO (safe torque off) SIL 3 |
| Height | 922 mm |
| Width | 290 mm |
| Depth | 323 mm |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV630D55N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV630D55N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV630D55N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV630D55N4 for credit when ordering from MRO Electric
The Schneider Electric ATV630D55N4 is a versatile and reliable variable speed drive from the ATV600 range, designed specifically for process and utility applications. Known for its robust performance and advanced control features, this AC drive offers a flexible and efficient solution for managing motor speed and torque, making it ideal for use in various industrial environments.
The ATV630D55N4 is engineered to deliver superior performance for both asynchronous and synchronous motors. It operates with a supply voltage range of 380 to 480 V and supports three-phase input. This drive can manage a wide range of motor powers, with 55 kW (75 hp) ratings for normal duty and 45 kW (60 hp) for heavy-duty operations. Its maximum transient current is 116.6 A for 60 seconds on normal duty and 132 A for 60 seconds on heavy-duty, ensuring it can handle demanding startup conditions and operational requirements.
The Schneider Electric ATV630D55N4 offers a nominal switching frequency of 2.5 kHz and an output frequency range from 0.0001 to 0.5 kHz. These features provide precise control over motor speed, making it suitable for applications that require fine adjustments and consistent performance. The drive integrates an EMC filter conforming to EN/IEC 61800-3 category C3 standards for up to 150 meters, ensuring minimal electromagnetic interference and compliance with global regulations.
This AC drive is designed for durability and long-term reliability. It features a UL type 1 protection rating (UL 508C), ensuring it is well-protected against dust, light, and non-corrosive environments. The drive's cooling is managed through forced convection, maintaining optimal operating temperatures even under heavy loads. The compact form factor, with 922 mm in height, 290 mm in width, and 323 mm in depth, allows easy integration into existing systems and straightforward wall mounting.
Safety is a critical priority in industrial applications, and the ATV630D55N4 AC drive is equipped with a Safe Torque Off (STO) function, certified to SIL 3 standards. This safety feature prevents unintended motor startup, protecting personnel and equipment from harm. Additionally, the drive is designed to withstand a prospective line short-circuit current (Isc) of up to 50 kA, enhancing safety and resilience against electrical faults.
The Schneider Electric ATV630D55N4 AC drive significantly saves energy by optimizing motor speed and torque according to process demands. This results in reduced energy consumption and lower operational costs, which are crucial for industries looking to improve efficiency and sustainability. Furthermore, it comes with a 2-year warranty from MRO Electric and Supply and is available with free shipping, ensuring both cost savings and peace of mind.
The ATV630D55N4 is suitable for controlling pumps, fans, compressors, and other machinery that require variable speed operation and is designed for a wide range of applications in the process and utility sectors. Its versatility, robust construction, and advanced control features make it an excellent choice for industries such as water treatment, HVAC, material handling, and more.
1. What is the primary use of the Schneider Electric ATV630D55N4 AC Drive?
The ATV630D55N4 is a variable-speed drive that controls motors' speed and torque in process and utility applications. It is suitable for use with both asynchronous and synchronous motors, making it ideal for applications such as pumps, fans, compressors, and other machinery that require variable speed control.
2. What motor types are compatible with this AC drive?
This AC drive is compatible with both asynchronous (induction) and synchronous motors, providing flexibility for various applications.
3. What are the power ratings for the ATV630D55N4 in normal and heavy-duty modes?
The AC drive supports up to 55 kW (75 hp) on normal duty and up to 45 kW (60 hp) on heavy duty, allowing it to handle various load requirements effectively.
4. What safety features are included in this drive?
The drive includes a Safe Torque Off (STO) function certified to SIL 3 standards. This function prevents unintended motor startup and enhances safety for personnel and equipment.
5. What is the operating voltage range for this AC drive?
The ATV630D55N4 AC drive operates within a supply voltage range of 380 to 480 V, with a -15% to +10% tolerance. It supports a three-phase power supply.
6. Does the ATV630D55N4 have an integrated EMC filter?
Yes, this drive has an integrated EMC filter that complies with EN/IEC 61800-3 category C3 standards, suitable for installations up to 150 meters to reduce electromagnetic interference.
7. How is the cooling of the AC drive managed?
The AC drive uses forced convection cooling to maintain optimal operating temperatures, ensuring reliable performance even under heavy loads.
8. What is the degree of protection offered by this AC drive?
The ATV630D55N4 is rated for UL type 1 protection by UL 508C standards. This makes it suitable for environments free from corrosive elements and requiring essential protection against dust and light.
9. Can the ATV630D55N4 handle high short-circuit currents?
Yes, the AC drive is designed to withstand a prospective line short-circuit current (Isc) of up to 50 kA, enhancing its resilience against electrical faults.
10. What is the warranty period for the Schneider Electric ATV630D55N4 AC Drive?
MRO Electric and Supply offers a 2-year warranty on the AC drive.
11. Is free shipping available for this AC drive?
Yes, when purchased from MRO Electric and Supply, free shipping is provided for the ATV630D55N4.
12. What are the dimensions of the ATV630D55N4 AC Drive?
The AC drive has a compact design with a height of 922 mm, a width of 290 mm, and a depth of 323 mm, making it easy to install in various setups.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV630D55N4, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV630D55N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
