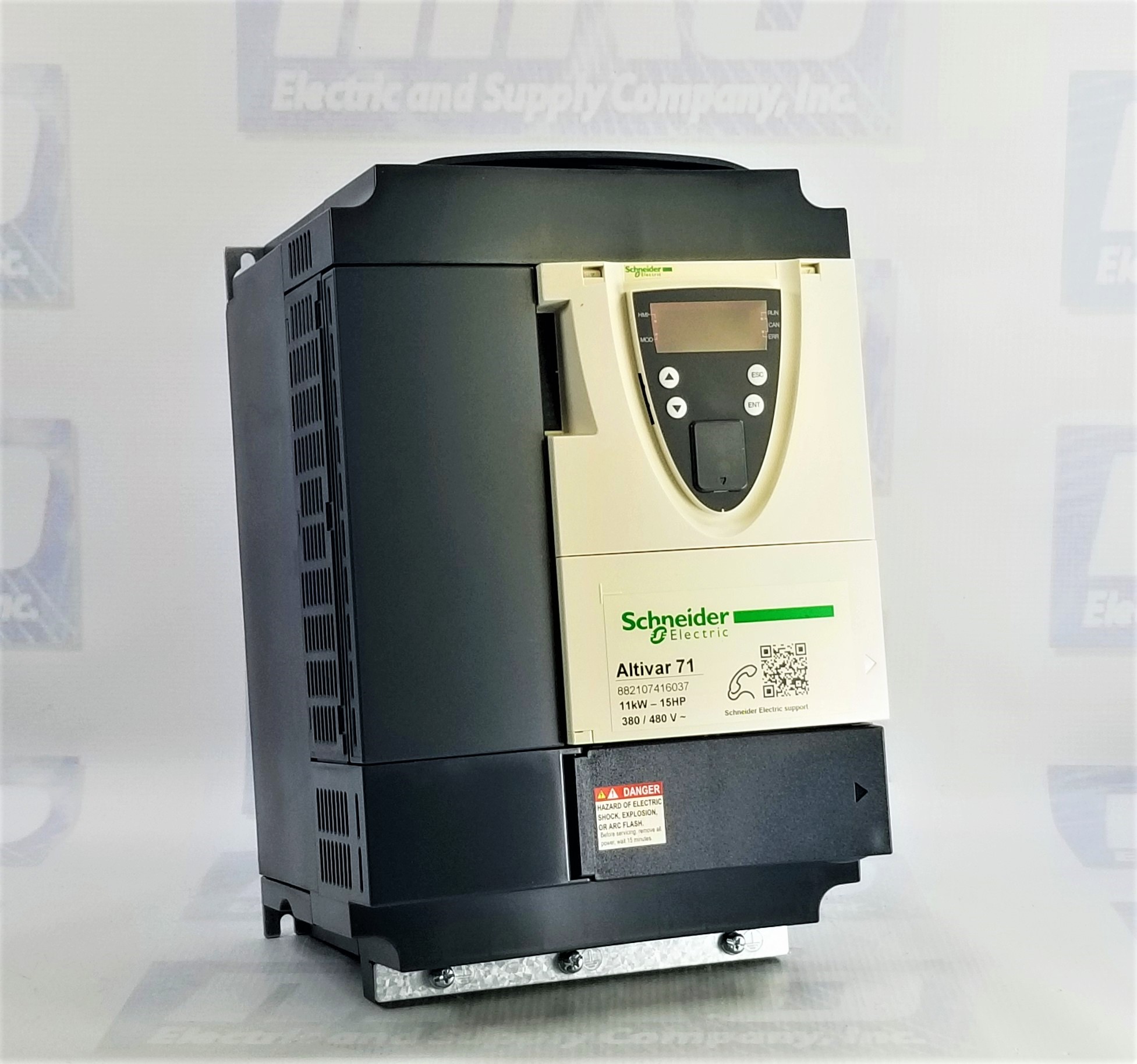

ATV71HD11N4

Schneider Electric ATV71HD11N4

Rated 5/5 on 4 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: ATV71 11 kW 15 HP 480 Volt EMC Filter

PRODUCT TYPE INFO: Altivar 71 Variable Speed Drive



5 in stock


2 Year warranty

Part NumberATV71HD11N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Motor power 11 kW
Horsepower15 hp
Cable cross section6 in mm², 10 AWG
Max line supply input36.6 A @ 380 V, 30 A @ 480 V
Max. prospective line Isc22 kA
Apparent power24.5 kVA
Max. inrush current93.4 A
Max. available nominal current In27.7 A
Max. transient current41.6A/60s, 45.7 A/2s

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV71HD11N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HD11N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV71HD11N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 26lbs

Want it shipped tomorrow?

  • Order within the next 21 hours and 46 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV71HD11N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV71HD11N4 Overview

The ATV71HD11N4 module is a variable speed drive for synchronous and asynchronous motors is manufactured by Schneider Electric as a part of their Altivar 71 line of drives. The motor power for the three-phase module (supply voltage: 380…480 V 50/60 Hz) ATV 71 ATV71HD11N4 is 11 kW, 15 hp with cable cross-section of 6 in mm², 10 AWG. The max line supply input for the Schneider Electric ATV71HD11N4 is 36.6 A at 380 V and 30 A at 480 V. Twenty-two kA is the max. prospective line Isc. The apparent power for this unit is 24.5 kVA with a maximum inrush current of 93.4 A. The maximum available nominal current In is 27.7 A and the maximum transient current is 41.6A/60s and 45.7 A/2s. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

Features of the Schneider Electric ATV71HD11N4

The dimensions of the ATV71HD11N4 are 8.27" across the front, 8.39 inches deep and 11.61 tall. The Schneider Electric ATV71HD11N4 weighs 15.43 pounds.

Made for three-phase motors, the ATV71HD11N4 variable speed drive is in the complex machine category of ATV drives. It has an IP protection rating of IP 20.

Which cooling method does the Schneider Electric ATV71HD11N4 use? The ATV71HD11N4 module uses an integrated heat sink for cooling or base plate or a water-cooled system.

What are the communication modalities for the variable speed drive module ATV71HD11N4? There are two communication modes integrated on the ATV71HD11N4. The first is Modbus and the second is CANopen.

Are there optional communication modes available for the ATV71HD11N4? Yes, the ATV71HD11N4 can utilize several communication networks. These communication networks are Modbus TCP Daisy Chain, Modbus/Uni-Telway, EtherNet/IP (RSTP), DeviceNet, PROFIBUS DP V0 and V1, Interbus, CC-Link, Profinet, EtherCAT, and POWERLINK.Optional cards used with this module are Interface cards for incremental, resolver, SinCos, SinCos Hiperface®, EnDat® or SSI encoders, I/O extension cards, and the Controller Inside the programmable card.

The number of functions for this module is > 150 with 16 preset speeds available.

Analog inputs: 2…4

Logic inputs: 6…20

Analog outputs: 1…3

Logic outputs: 0…8

Relay outputs: 2…4

Asynchronous drive control for the ATV71HD11N4 flux vector control with or without sensor Voltage/frequency ratio (2 or 5 points) ENA System. For synchronous motor control, the ATV71HD11N4 uses vector control with or without speed feedback. The transient over-torque is 220% of the nominal motor torque for 2 seconds and 170% for 60 seconds.

How to use the ATV71HD11N4

Once you receive the Schneider Electric ATV71HD11N4 the drive should be inspected for damage. Next, the line voltage should be checked for compatibility with the drive’s voltage range. After these two tasks are performed this drive module may be vertically mounted at ± 10° away from heating elements. Space for air circulation from top to bottom is necessary as well as front space.  Any option modules may then be installed on the drive module. The next step is to wire the drive connecting the motor making sure the connections correspond to the voltage. When the power is off, connect the line supply the control and the speed reference.
