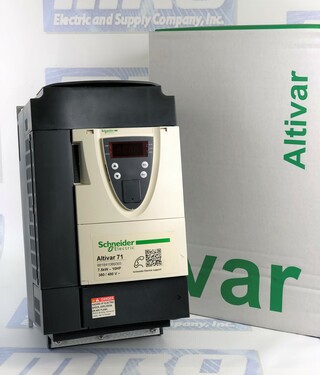

ATV71HU75N4

ATV71HU75N4

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: ATV71 Variable Speed Drive 7.5 kW 10 HP 480 Volt EMC Filter

PRODUCT TYPE INFO: Altivar 71

3 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

Part NumberATV71HU75N4
ManufacturerSchneider Electric
SeriesAltivar 71
Model #ATV71HU75N4
TypeAC Drives
Warranty2 Year
Component typeVariable speed drive
Phases3 Phases
Motor power 7.5 KW, 3 phases at 380...480 V
Max motor cable length50 M shielded cable 100 M unshielded cable
Motor power hp10 Hp, 3 phases at 380...480 V
Rated supply voltage380...480 V - 15...10 %
EMC filterIntegrated
Apparent power17.8 KVA at 380 V 3 phases 7.5 kW / 10 hp
Prospective line Isc22 KA for 3 phases
Output frequency0.1…599 Hz
Switching frequency1...16 kHz adjustable 4...16 kHz with derating factor
Line current22.2 A for 480 V 3 phases 7.5 kW / 10 hp 27 A for 380 V 3 phases 7.5 kW / 10 hp

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV71HU75N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HU75N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV71HU75N4, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 13lbs

Want it shipped today?

  • Order within the next 10 hours and 5 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV71HU75N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Schneider Electric ATV71 HU75N4 Overview

The Altivar 71 variable speed drive ATV71 HU75N4 is manufactured by Schneider Electric for use with three-phase motors. The ATV 71 series is engineered for complex machines. The power range for 50…60 Hz (kW/HP) line supply is 0.37…630/0.5...700. Single-phase 200…240 V (kW/HP) 0.37…5.5/0.5...7.5. Three-phase 200…240 V (kW/HP) 0.37…75/0.5...100. Three-phase 380…480 V (kW/HP) 0.75…500/1...700. Three-phase 500…600 V (kW/HP 1.5…7.5/2...10, and Three-phase 500…690 V (kW/HP) 1.5…630/2...700.

Features of the ATV71 HU75N4

There are three types of cooling for the ATV71 HU75N4 variable speed drive. The three cooling options are Heatsink, base plate, or water-cooled system.

The output frequency for the ATV 71 drive module is 0.1…500 Hz, and 0.1…599 Hz up to 37 kW/50 HP at 200…240 V ˜ and 380…480 V ˜. The asynchronous motor control for this unit is Flux vector control with or without a sensor.

Manufactured for use with demanding drive systems, the Schneider Electric Altivar 71 drive line offers torque and speed accuracy at notably low speed plus high dynamic performance with Flux Vector Control either with or without a sensor. The Schneider Electric drive series ATV 71 also allows an extended frequency range for high-speed motors.  Using the voltage / frequency ratio, you have the ability to connect special drives and can connect parallel motors.  The variable frequency drive provides static speed accuracy as well as energy-saving for open-loop synchronous motors. You will enjoy smooth flexibility for unbalanced machines with Schneider Electric’s adaptation of the ENA (Energy Adaptation) System.

The Schneider Electric variable speed drive line ATV 71 utilizes a wide voltage range for a 690 V a line supply. The Altivar 71 drive ATV71 HU75N4 uses state-of-the-art functions to boost performance your levels in the industrial setting.  This helps to achieve making your machines more versatile so they can be used for a greater number of applications.

Advantages

The ATV71 HU75N4 variable speed drive by Schneider Electric is manufactured to bring energy savings to your industrial platform.  Energy efficiency translates into savings for you, so the Altivar drive line is designed to make the most of your industrial processes. How does Schneider Electric do this with the Altivar 71 line of drives? It accomplishes this by offering optional modules that help you attain a reduction in line interference. Optional units that can reduce line interference include DC chokes, line chokes, passive filters, and Active Front End (AFE).

Schneider Electric also has in mind Eco-friendly materials when manufacturing the ATV 71 drive and the entire Altivar line. The units are made with 90% recyclable materials.  This is a RoHS-compliant feature. It is also compliant with environmental standard ISO 14040.

How to use an Altivar 71

The Altivar 71 range of variable speed drives covers a wide range of motor power ratings from 0.37 kW/0.5 HP to 2000 kW with 500 V three-phase, 90 kW/125 HP to 500 kW/700 HP power supply.

Mounting for the ATV71 is allowed in several variations based on use and integration in various devices.

The Schneider Electric ATV71 HU75N4 variable speed drive comes with a two-year warranty.

Product Description

The ATV71HU75N4 is a ATV71 Variable Speed Drive 7.5 kW 10 HP 480 Volt E... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the altivar-71 line come with a 2 year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
