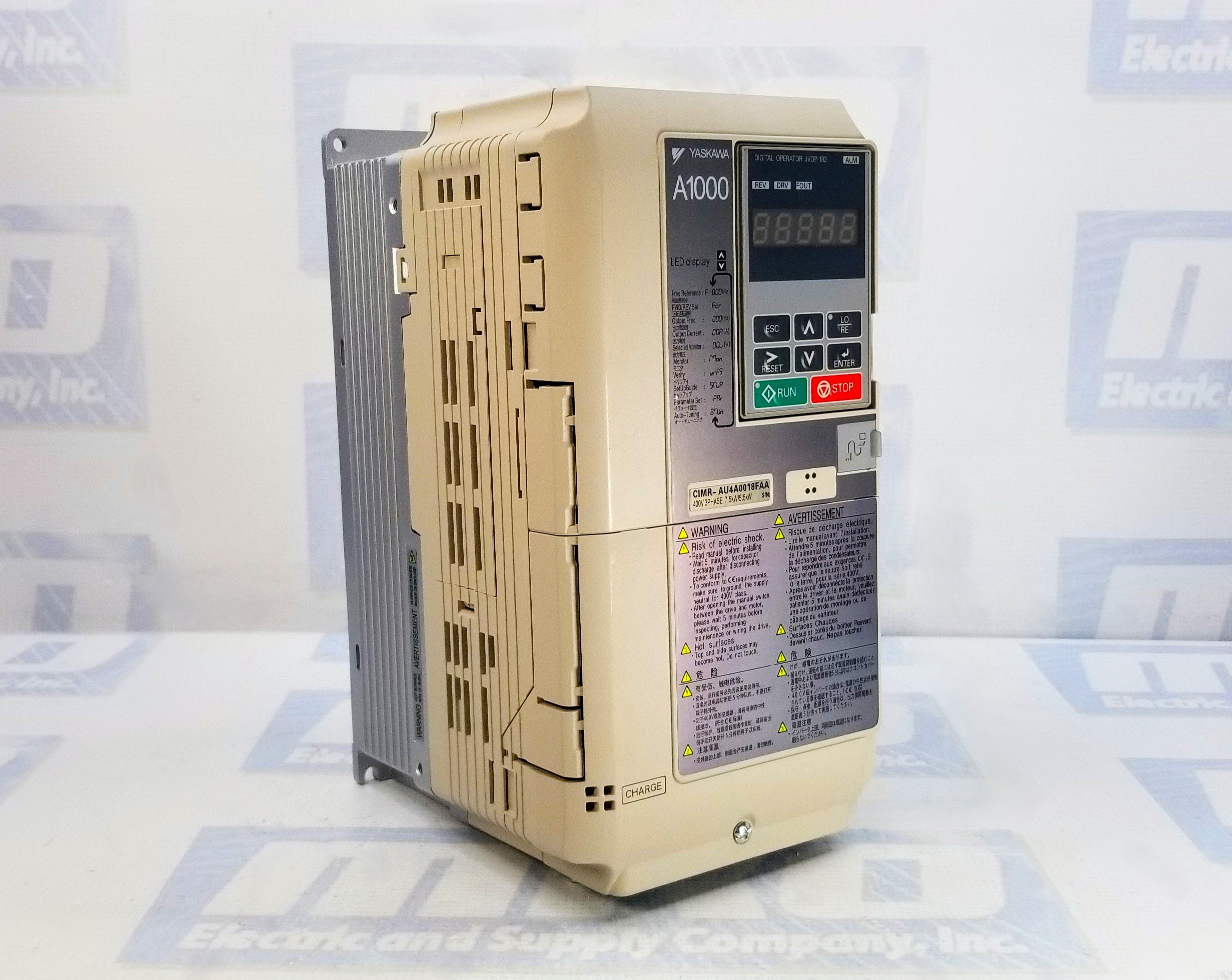

Yaskawa CIMR-AU4A0018FAA

Yaskawa CIMR-AU4A0018FAA A1000 AC Drive – High Performance and Versatility

Introduction to the A1000 Series

The Yaskawa CIMR-AU4A0018FAA is part of the acclaimed A1000 series, engineered to deliver exceptional control, reliability, and performance in demanding industrial environments. Known for its advanced motor control features, the A1000 is a standard-setting variable frequency drive (VFD) that supports various industry applications. This model supports regular and heavy-duty applications, making it suitable for precise, efficient motor control in complex automation setups.

Power and Performance Specifications

The CIMR-AU4A0018FAA model is designed for operation on a 3-phase 480V AC power supply and is rated for 7.5 horsepower in constant torque (CT) mode with a current rating of 14.8 amps, and up to 10 horsepower in variable torque (VT) mode with a current rating of 17.5 amps. It combines impressive torque handling with energy-efficient operation, ensuring high performance even under demanding load conditions. Its voltage and amperage capacity make it a versatile drive for motors in fan, pump, conveyor, and processing applications.

Compact and Durable Design

Measuring 11.81 inches in height, 5.51 inches in width, and 6.57 inches in depth, the drive features a compact footprint allowing easy integration into control panels or tight industrial enclosures. Despite its compact size, it does not compromise on durability. Built with industrial-grade components, the A1000 is engineered to withstand environmental stressors, providing long-term operational reliability. The drive also includes built-in overload protection and conforms to global safety and quality standards.

Advanced Control Capabilities

Yaskawa's A1000 series drives stand out for their high-level control precision. The CIMR-AU4A0018FAA offers sensorless vector control and complete closed-loop vector control, delivering outstanding torque response and speed regulation. This allows operators to achieve accurate motor performance even under fluctuating loads. Additionally, the drive supports a wide range of programmable features, enabling custom control schemes for complex machinery. It is also compatible with various motor types, including induction and permanent magnet motors.

Ease of Use and Integration

Installation and configuration are easy with user-friendly setup wizards and integrated display functions. The drive includes standard communication interfaces and supports network protocols such as Modbus and optional connectivity to Ethernet/IP, DeviceNet, and PROFIBUS. This makes the A1000 CIMR-AU4A0018FAA drive suitable for integrating existing and new systems. Remote monitoring and parameter setting are also available, allowing for convenient system management and reduced downtime.

Warranty and Availability

A 2-year warranty from MRO Electric and Supply covers the Yaskawa CIMR-AU4A0018FAA. It is available for immediate shipping at no additional cost, ensuring quick deployment for urgent repair or system upgrade needs. This fast availability and Yaskawa's industry-trusted performance make the A1000 a solid investment for long-term industrial efficiency.

Frequently Asked Questions

What is the input voltage for the CIMR-AU4A0018FAA?

It operates on a 3-phase 480V AC input.

What is the horsepower rating for this drive?

It supports 7.5 HP in constant torque mode and 10 HP in variable torque mode.

Is the drive compatible with permanent magnet motors?

Yes, it supports both induction and permanent magnet motors.

Can the drive be networked with PLC systems?

It supports communication protocols like Modbus and optional Ethernet/IP, PROFIBUS, and others.

What type of control does the drive offer?

It features sensorless vector control and complete closed-loop vector control for high precision.

What are the physical dimensions of this drive?

It measures 11.81" high, 5.51" wide, and 6.57" deep.

Is there built-in overload protection?

Yes, the drive includes overload and fault protection features.

How easy is the drive to configure?

The A1000 drive includes user-friendly wizards and an intuitive keypad interface for easy setup.

What industries use this drive most commonly?

It's widely used in HVAC, manufacturing, material handling, and pumping systems.

Is the drive available for immediate delivery?

Yes, MRO Electric offers immediate shipping and a 2-year warranty.

Yaskawa products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Schneider Electric and KUKA.
