Yaskawa CIMR-JU4A0005BAA

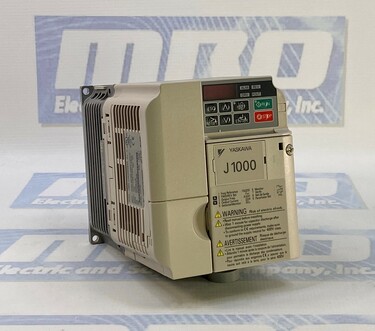

Yaskawa CIMR-JU4A0005BAA AC Drive

Overview

The Yaskawa CIMR-JU4A0005BAA is a high-performance AC drive from the renowned J1000 series, designed to deliver reliable and efficient motor control in various industrial applications. This drive is engineered to provide precise speed and torque control for three-phase AC motors, enhancing performance and operational efficiency. With its robust design and versatile features, the CIMR-JU4A0005BAA is an excellent choice for applications requiring dependable motor control in demanding environments.

Design and Specifications

The CIMR-JU4A0005BAA operates on a three-phase power supply with an input voltage range of 380-480 VAC, accommodating standard industrial voltage levels. This flexibility ensures compatibility with a wide range of electrical systems. The drive supports a rated frequency of 50/60 Hz, making it suitable for global applications with different frequency standards. With an output current rating of 5.4 amps (for 380V) and 4.8 amps (for 480V), the drive can effectively handle a variety of motor sizes and types, providing the necessary power for optimal performance.

Protection and Durability

Featuring an IP20 protection rating, the CIMR-JU4A0005BAA is designed to offer reliable protection against dust and accidental contact with internal components. While the IP20 rating indicates that the drive is suitable for use in environments with moderate dust exposure and where direct contact with electrical parts is limited, it must be installed in a controlled environment or within an enclosure that provides additional protection. This design enhances the drive's longevity and ensures dependable operation in various industrial settings.

Performance and Efficiency

The Yaskawa CIMR-JU4A0005BAA is engineered for high efficiency and performance. It incorporates advanced control algorithms to provide smooth acceleration and deceleration, precise speed control, and reliable torque management. These features contribute to reduced energy consumption and improved overall system efficiency. The drive's design minimizes power losses and enhances motor performance, making it an excellent choice for applications where energy efficiency and precise control are critical.

Applications and Benefits

This AC drive is ideal for various industrial applications, including pumps, fans, conveyors, and other machinery requiring reliable motor control. The CIMR-JU4A0005BAA is well-suited for applications where variable speed control is necessary to match process requirements or to improve operational efficiency. Its compact design and flexible mounting options make it easy to integrate into existing systems, providing enhanced control without occupying excessive space.

Warranty and Support

The CIMR-JU4A0005BAA comes with a two-year MRO Electric and Supply warranty. This warranty reflects MRO's commitment to quality and customer satisfaction, providing users with peace of mind and assurance of the drive’s reliability and performance. Additionally, MRO Electric and Supply offers free shipping on this model, adding further customer value and convenience.

FAQs for Yaskawa CIMR-JU4A0005BAA AC Drive

Q1: What is the Yaskawa CIMR-JU4A0005BAA used for?

A1: The Yaskawa CIMR-JU4A0005BAA is an AC drive designed to control the speed and torque of three-phase AC motors. It is suitable for various industrial applications, including pumps, fans, conveyors, and other machinery that require reliable motor control and variable speed operation.

Q2: What is the input voltage range for the CIMR-JU4A0005BAA?

A2: The CIMR-JU4A0005BAA operates with an input voltage range of 380-480 VAC. This range allows it to be compatible with standard industrial power supplies and provides flexibility for use in different regions with varying voltage levels.

Q3: What is the output current rating of this AC drive?

A3: The drive's output current rating is 5.4 amps when operating at 380V and 4.8 amps at 480V. This rating determines the maximum current the drive can deliver to the motor, supporting a range of motor sizes and applications.

Q4: What is the protection rating of the CIMR-JU4A0005BAA?

A4: The CIMR-JU4A0005BAA has an IP20 protection rating. This rating indicates that the drive is protected against dust and accidental contact with internal components. It is suitable for use in controlled environments or an enclosure, providing additional protection.

Q5: What frequency range does the CIMR-JU4A0005BAA support?

A5: The CIMR-JU4A0005BAA supports a rated frequency of 50/60 Hz. This makes it compatible with global frequency standards and ensures reliable operation in various regions.

Q6: What are the key benefits of using the CIMR-JU4A0005BAA AC drive?

A6: The key benefits include precise motor speed and torque control, enhanced energy efficiency, and reliable performance. The drive's advanced control algorithms help achieve smooth acceleration and deceleration, reduce energy consumption and improve overall system efficiency.

Q7: Is the CIMR-JU4A0005BAA suitable for harsh industrial environments?

A7: While the CIMR-JU4A0005BAA is designed with an IP20 protection rating, it is best suited for controlled environments with moderate dust exposure. Additional protective enclosures may be necessary for harsher environments to safeguard the drive from dust, moisture, and other contaminants.

Q8: What is the warranty period for the CIMR-JU4A0005BAA?

A8: The CIMR-JU4A0005BAA comes with a two-year MRO Electric and Supply warranty.

Q9: Does MRO Electric and Supply offer additional benefits with the purchase?

A9: MRO Electric and Supply offers free shipping on the CIMR-JU4A0005BAA, adding convenience and cost savings for customers. This benefit, along with the two-year warranty, enhances the overall value of the purchase.

Q10: How can I integrate the CIMR-JU4A0005BAA into my existing system?

A10: The CIMR-JU4A0005BAA is designed for easy integration into existing systems. Its compact design allows for straightforward installation and is compatible with various motor types and configurations. Ensure that the drive's specifications match your system requirements, and consult the installation manual for detailed guidance on wiring and configuration.
