Yaskawa CIMR-VU4A0005GAA

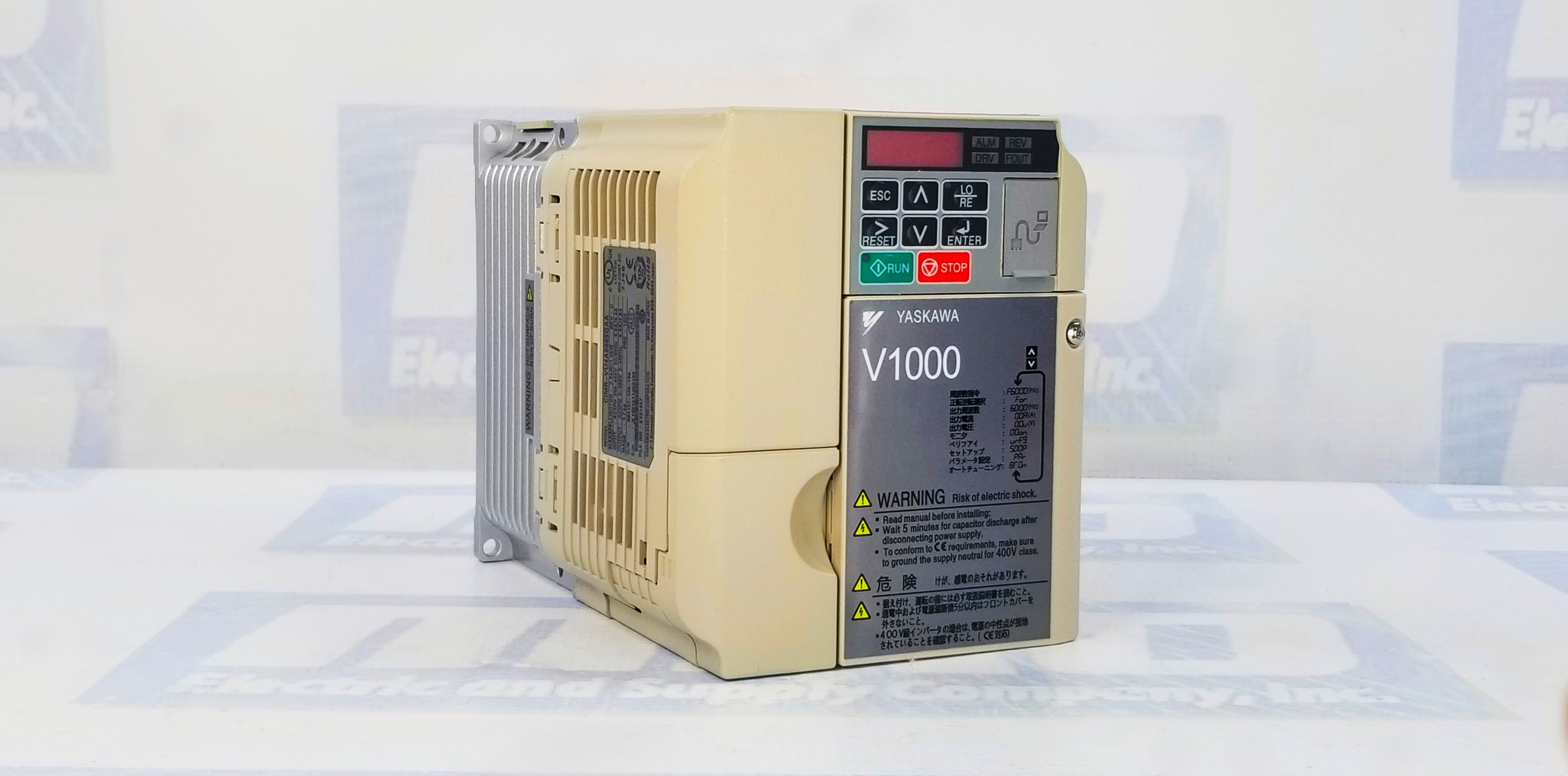

Yaskawa CIMR-VU4A0005GAA V1000-4X Drive

Overview

The Yaskawa CIMR-VU4A0005GAA is a robust and versatile AC drive from the V1000-4X series, designed for reliable motor control in challenging industrial environments. This standard drive supports a power rating of 2 HP (1.5 kW) and operates on 380–480 volts, three-phase input, making it suitable for a broad range of medium-duty applications. The V1000-4X model features a rugged NEMA 4X enclosure, protecting against dust, water, and corrosion, which allows installation in harsh indoor and outdoor environments.

Performance and Specifications

The CIMR-VU4A0005GAA delivers an input current of 4.8 amps under constant torque (CT) conditions and 5.4 amps for variable torque (VT) applications. Its compact dimensions of approximately 10.04 inches in height, 7.36 inches in width, and 7.28 inches in depth make it a space-efficient solution for control panels with limited room. Designed for both CT and VT loads, it offers precise speed and torque control, ensuring smooth motor operation and reduced mechanical wear.

Applications

Ideal for pumps, fans, compressors, conveyors, and other industrial equipment, this drive excels in environments requiring both robust protection and consistent performance. The NEMA 4X enclosure rating means it can withstand exposure to moisture, dust, and corrosive elements, making it well-suited for applications in food processing, wastewater treatment, and outdoor equipment.

Energy Efficiency and Control

The V1000-4X drive enables energy savings by adjusting motor speed to match the actual load requirements. This reduces unnecessary power consumption and lowers operating costs. Its advanced control algorithms deliver smooth acceleration and deceleration, minimizing stress on the motor and connected machinery while improving process efficiency.

Ease of Use and Installation

Yaskawa designed the CIMR-VU4A0005GAA for straightforward installation and operation. The user-friendly interface and programmable parameters allow quick setup and easy tuning for specific application needs. Its NEMA 4X enclosure also simplifies installation in environments where additional protective housings would otherwise be required.

Durability and Reliability

Constructed with high-quality components and backed by Yaskawa's industry reputation, this drive is built to provide long-lasting, dependable service. The NEMA 4X enclosure adds an extra layer of durability, protecting the drive against environmental factors that can lead to premature failure.

Availability and Warranty

MRO Electric and Supply offers the Yaskawa CIMR-VU4A0005GAA with free shipping, immediate availability, and a 2-year warranty, ensuring customers receive fast delivery and long-term support.

Frequently Asked Questions

What is the horsepower rating?

The drive is rated for 2 HP (1.5 kW).

What is the input voltage range?

It operates at 380–480 VAC, three-phase.

What are the input currents for CT and VT loads?

It draws 4.8 amps for constant torque and 5.4 amps for variable torque.

What is the enclosure rating?

It has a NEMA 4X enclosure, suitable for harsh environments.

What are the physical dimensions?

Approximately 10.04"H x 7.36" W x 7.28"D.

Which applications is it best suited for?

Ideal for pumps, fans, compressors, conveyors, and outdoor or washdown environments.

Is it energy efficient?

Yes, it adjusts motor speed to optimize energy consumption.

Is it easy to install and program?

Yes, it offers a user-friendly interface and simple setup.

Does it come with a warranty?

Yes, it includes a 2-year warranty from MRO Electric.

Is it immediately available?

Yes, it ships immediately with free shipping.

Yaskawa products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Schneider Electric and KUKA.
