CIMR-VUBA0018FAA

2-year Warranty

Same Day Shipping

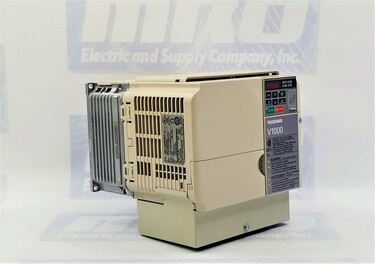

Yaskawa CIMR-VUBA0018FAA

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: YASKAWA

DESCRIPTION:  Drive, AC, 5HP, 240V, 1PH, 17.5A, CT, N1 5HP, 17.5A, VT 6.02"Hx6.69"Wx7.09"D

PRODUCT TYPE INFO: V1000 DRIVE

2 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberCIMR-VUBA0018FAA
ManufacturerYaskawa
TypeAC Drives
Model #CIMRVUBA0018FAA
Warranty2 Year
RangeV1000
Description AC DRIVE
Rated200-240V 1-PHASE
Voltage rating240V
Current Rating17.5/17.5A
Single phase5 HP @200-240 V
Power rating3.7 KW
OperatorDigital keypad
Display5-digit
MonitoringLED status display
Ambient temp14°F to 104°F

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed CIMR-VUBA0018FAA to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this CIMR-VUBA0018FAA we also repair a wide range of other Yaskawa products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty CIMR-VUBA0018FAA, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 10lbs

Want it shipped today?

  • Order within the next 14 hours and 45 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty CIMR-VUBA0018FAA for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Yaskawa CIMR-VUBA0018FAA Overview

The Yaskawa V1000 AC Drive CIMRVUBA0018FAA is a high-performance and compact current vector drive that sets a new standard in the industry. It is designed to meet the increasing demands for efficient production and better maintainability in a globally competitive market. Yaskawa drives are known for their exceptional performance, functionality, and quality. These products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Schneider Electric and KUKA.

Features

The V1000 AC Drive comes with a range of impressive features and specifications. It is rated for 1/8 to 5 HP at 200-240 VAC in single-phase, making it suitable for a variety of applications. It also has an overload capacity of 150% for 60 seconds under heavy-duty conditions and 120% for 60 seconds under normal-duty conditions. This ensures the drive can handle demanding loads effectively.

Control

The V1000 offers multiple control methods, including V/f control, open-loop current vector control, PM open-loop current vector control, and simple closed-loop speed control. It also features DC injection braking, ramp-to-stop functionality, electronic reversing, and adjustable acceleration and deceleration times ranging from 0.01 to 6000 seconds.

With a controlled speed range of 40:1 to 100:1, the V1000 provides precise speed regulation. It offers a displacement power factor of 0.98 and an adjustable output frequency range from 0 to 400 Hz. The frequency resolution is 0.01 Hz with digital reference and 0.06/60 Hz with analog reference. The drive ensures accurate frequency control with a frequency accuracy of 0.01% with digital commands and 0.5% with analog commands.

Design

The design of the V1000 AC Drive incorporates dual microprocessor logic, a digital keypad operator with a 5-digit display, and an LED status display for easy operation and monitoring. It has 7 multifunction digital inputs, 3 multifunction digital outputs, and a programmable form C output contact for customer use. The drive is also equipped with a variety of protection features such as current limit, stall prevention, motor and drive overload protection, overvoltage prevention, short circuit protection, and ground fault protection.

The V1000 AC Drive is designed to withstand various service conditions. It has an ambient service temperature range of -10°C to 40°C (14°F to 104°F) for NEMA 1 enclosure and -10°C to 50°C (14°F to 122°F) for open chassis. The humidity tolerance is up to 95% non-condensing, and it can operate at altitudes up to 3300 ft with derating. The input voltage ranges from -15% to +10%, and the input frequency has a tolerance of +/-5% at 50/60 Hz.

Options

There are several options and accessories to enhance the functionality of the V1000 AC Drive. These include a dynamic braking resistor, remote LCD with full-text display, various communication options such as Profibus-DP and DeviceNet, software tools like DriveWizard Plus and CASE, mounting kits, external heatsink kits, and control power units.

Standards

The V1000 AC Drive complies with several international standards, including UL 508C, CSA 22.2 No. 14-95, UL, cUL, CE, RoHS, EN 50178, EN 50081-2, EN 50082-2 (EMC), EN 954-1, Category 3 Safety Standard, EN 61800-3, IEC 529, 146, FCC CFR 47 Part 15 Subpart B (w/ External Filter), TUV.
