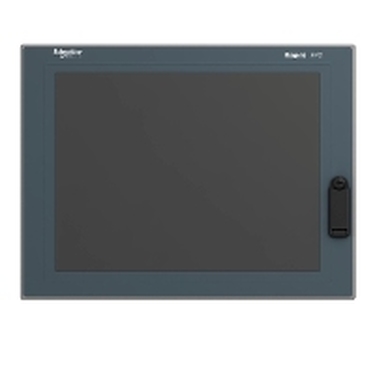

Schneider Electric HMIPPH6A2701


Panel PC Performance - Hard Disk - 12'' - AC - 2 slots - fan
2 year warranty

Instant Price Quote


Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means cheaper prices and better service for you. For more products like HMIPPH6A2701, take a look at more from our Modicon Magelis line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.


ManufacturerSchneider Electric
SeriesModicon Magelis
Product weight4.2 kg
Range of productMagelis iPC
Product or component typePC panel
Terminal typeTouchscreen display
Processor nameIntel i3 dual core 3rd generation 3217UE 3 MB - cache memory
Chipset typeIntel BD82QM77
Data storage equipment>= 500 GB enterprise hard disk
Display size12 inch
Display typeActive matrix colour TFT LCD with LED backlight
Display resolution1024 x 768 pixels XGA
Display colour16 million colours
Luminance375 cd/m²
Backlight lifespan50000 hours at 25 °C
View angle horizontal x vertical80 x 80°
Touch panelAnalogue resistive
Memory type4 GB, expandable to 16 GB RAM DDR3
Drive typeDVD-RW
Video controller typeIntel HD Graphics 4000
Type of coolingFan
Integrated connection type2 Ethernet port - RJ45
COM1 serial link - male SUB-D 9 - RS232C (rate: 115 kbit/s) bottom
COM2 serial link - male SUB-D 9 - RS232C (rate: 115 kbit/s) bottom
Port Ethernet10BASE-T/100BASE-T/1000BASE-T
Number of slots1 PCI express 2 Gbit/s
Operating systemWindows 7 64 bits Ultimate multi-language
Software packageVijeo Designer run time demo
[Us] rated supply voltage100...240 V AC power supply
Network frequency45...65 Hz
[In] rated current0.6...2 A
Inrush current< 20 A
Bezel materialAluminium alloy
MaterialDie cast aluminium
Display materialPolyethylene sheet
Fixing modeFasteners included enclosure door by fixing kit
Type of installationIndoor
Control typePush-button for reset
ON/OFF push-button for equipment ON and OFF
Local signallingLED multi-colour for power
LED for link status
LED orange for accessing hard disk (DISK)
Function availableRAID (Redundant Array of Independent Disks)
Width313 mm
Height239 mm
Depth135 mm
Cut-out dimensions301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) x 1.6...9 mm
