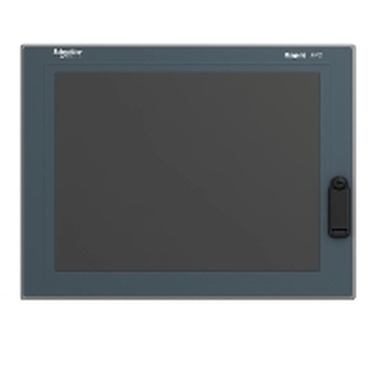

Schneider Electric HMIPUF6D0701


Panel Pc Universal - Flash Disk Ssd - 12’’ - DC - 0 Slot - Fanless
2 year warranty
Call (800) 691-8511 for pricing
Click for Quote


Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like HMIPUF6D0701, take a look at more from our Modicon Magelis line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.


ManufacturerSchneider Electric
SeriesModicon Magelis
Product weight4 kg
Range of productMagelis iPC
Product or component typePC panel
Terminal typeTouchscreen display
Processor nameIntel icore 3rd generation 827E 3 MB - cache memory
Chipset typeIntel BD82HM76
Data storage equipment>= 60 GB Flash disk SSD with MLC technology 2000000 h mtbf
Display size12 inch
Display typeActive matrix colour TFT LCD with LED backlight
Display resolution1024 x 768 pixels XGA
Display colour16 million colours
Luminance375 cd/m²
Backlight lifespan50000 hours at 25 °C
View angle horizontal x vertical80 x 80°
Touch panelAnalogue resistive
Memory type2 GB, expandable to 16 GB RAM DDR3
Video controller typeIntel HD Graphics 3000
Type of coolingFanless
Integrated connection type2 Ethernet port - RJ45
Port Ethernet10BASE-T/100BASE-T/1000BASE-T
Operating systemWindows 7 64 bits Ultimate multi-language
Software packageVijeo Designer run time demo
[Us] rated supply voltage24 V DC (tolerance:+/- 25 %) power supply
Inrush current7...60 A
Power consumption130 W
Bezel materialAluminium alloy
MaterialDie cast aluminium
Display materialPolyethylene sheet
Fixing modeFasteners included enclosure door by fixing kit
Type of installationIndoor
Control typePush-button for reset
ON/OFF push-button for equipment ON and OFF
Local signallingBuzzer
LED multi-colour for power
LED for link status
LED orange for accessing Flash disk SSD (DISK)
Width313 mm
Height239 mm
Depth60 mm
Cut-out dimensions301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) x 1.6...9 mm
