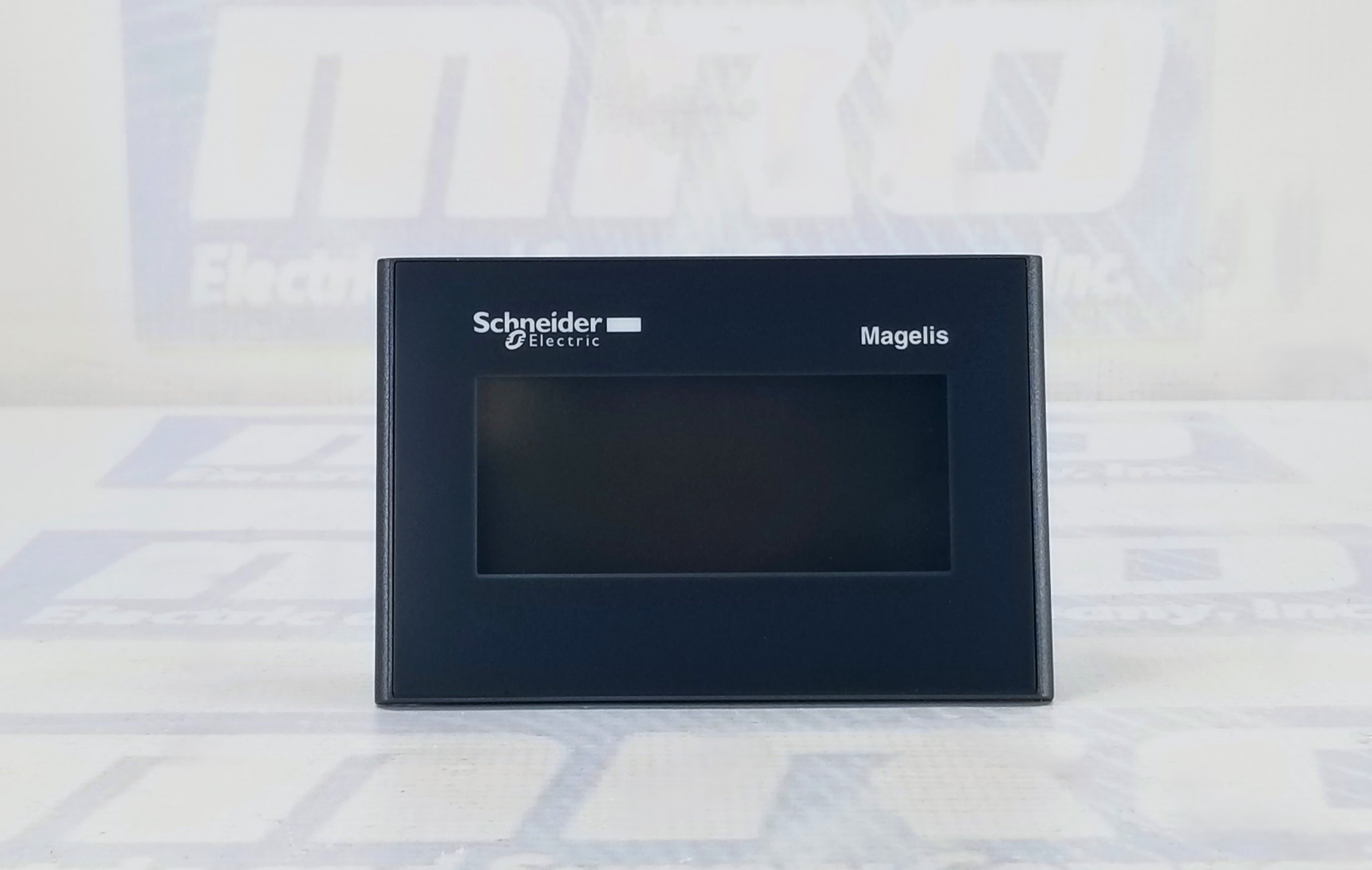

TOUCH PANEL SCREEN 3’’4 MONOCHROME W/P/R
| Part Number | HMISTO512 |
| Manufacturer | Schneider Electric |
| Type | HMIs |
| Warranty | 2 Year |
| Depth | 36.5 mm |
| Range of product | Magelis STO & STU |
| Product or component type | Touch panel screen |
| Software designation | Vijeo Designer |
| Operating system | Magelis |
| Processor name | CPU RISC |
| Display size | 3.4 inch |
| Display type | Backlit monochrome STN LCD |
| Background colour | Red |
| White | |
| Pink | |
| Display resolution | 200 x 80 pixels |
| Touch panel | Analogue |
| Backlight lifespan | 10000 hours with red |
| 50000 hours with pink | |
| 50000 hours with white | |
| Brightness | 8 levels |
| Contrast | 16 levels via touch panel |
| Character font | ASCII |
| Chinese (simplified Chinese) | |
| Japanese (ANK, Kanji) | |
| Korean | |
| Taiwanese (traditional Chinese) | |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Inrush current | <= 30 A |
| Local signalling | 1 LED with green for normal operation |
| Power consumption | 5 W |
| Number of pages | Limited by internal memory capacity |
| Processor frequency | 333 MHz |
| Memory description | Application memory, 16 MB |
| Integrated connection type | 1 USB 2.0 type mini B |
| 1 USB 2.0 type A | |
| Removable screw terminal block connector power supply | |
| Female RJ45 connector COM1 serial link with RS232C/RS485 interface at <= 115.2 kbits/s | |
| Supply | External source |
| Realtime clock | Access to the PLC real-time clock |
| Downloadable protocols | Modbus |
| Third party protocols | |
| Uni-TE | |
| Fixing mode | By 2 spring clips on 1.6...5 mm thick panel |
| Enclosure material | PPT |
| Marking | CE |
| Height | 77.5 mm |
| Width | 116.5 mm |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed HMISTO512 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this HMISTO512 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty HMISTO512, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty HMISTO512 for credit when ordering from MRO Electric
The HMISTO512, manufactured by Schneider Electric, is a compact and durable Human Machine Interface (HMI) designed to support industrial automation systems. This touch panel screen is part of the Magelis STO & STU range, renowned for its efficient performance in space-limited environments. Ideal for small machinery or compact installation panels, the HMISTO512 offers a user-friendly interface for operators and maintenance personnel.
The HMISTO512 features a sleek and compact form factor, measuring 116.5 mm in width, 77.5 mm in height, and just 36.5 mm in depth. Its lightweight yet robust enclosure, made from high-quality PPT material, is engineered for panel installation using two spring clips compatible with panels ranging from 1.6 mm to 5 mm thick. Despite its compact size, this device is competent, offering intuitive control and reliable data visualization in various industrial applications.
Equipped with a 3.4-inch backlit monochrome STN LCD, the HMISTO512 supports multiple background color options, including red, white, and pink. The brightness can be adjusted across eight levels, and the contrast is customizable with 16 levels via the touch panel itself. The screen resolution is 200 x 80 pixels, ensuring clear visibility of essential information. With a backlight lifespan of up to 50,000 hours for pink and white colors and 10,000 hours for red, this display is efficient and long-lasting.
The touch panel uses analog technology for precise user input. Character font support is extensive, accommodating ASCII and several Asian character sets, including simplified and traditional Chinese, Japanese (ANK and Kanji), and Korean, allowing for global usability. The application memory of 16 MB ensures smooth performance for various operational tasks.
Powered by a 333 MHz RISC CPU, the HMISTO512 provides reliable processing power for HMI operations. The unit operates on a 24 V DC power supply with a tolerance of ±20% and consumes just 5 watts. It includes a real-time clock, accessible via a connected PLC, to help maintain accurate time-based operations. The device features a variety of integrated connection options: one USB 2.0 type A, one USB 2.0 type mini B, a female RJ45 COM1 serial link supporting RS232C/RS485 at speeds of up to 115.2 kbit/s, and a removable screw terminal block for power supply.
The HMISTO512 is fully compatible with Schneider Electric’s Vijeo Designer software, allowing seamless configuration and interface customization. It supports various downloadable communication protocols, including Modbus, Uni-TE, and other third-party protocols, and offers excellent versatility when connecting to diverse PLC and automation systems.
When purchased from MRO Electric and Supply, this product comes with a 2-year warranty, offering peace of mind for long-term usage. Additionally, free shipping is available, making it a convenient and cost-effective choice for industrial automation projects.
