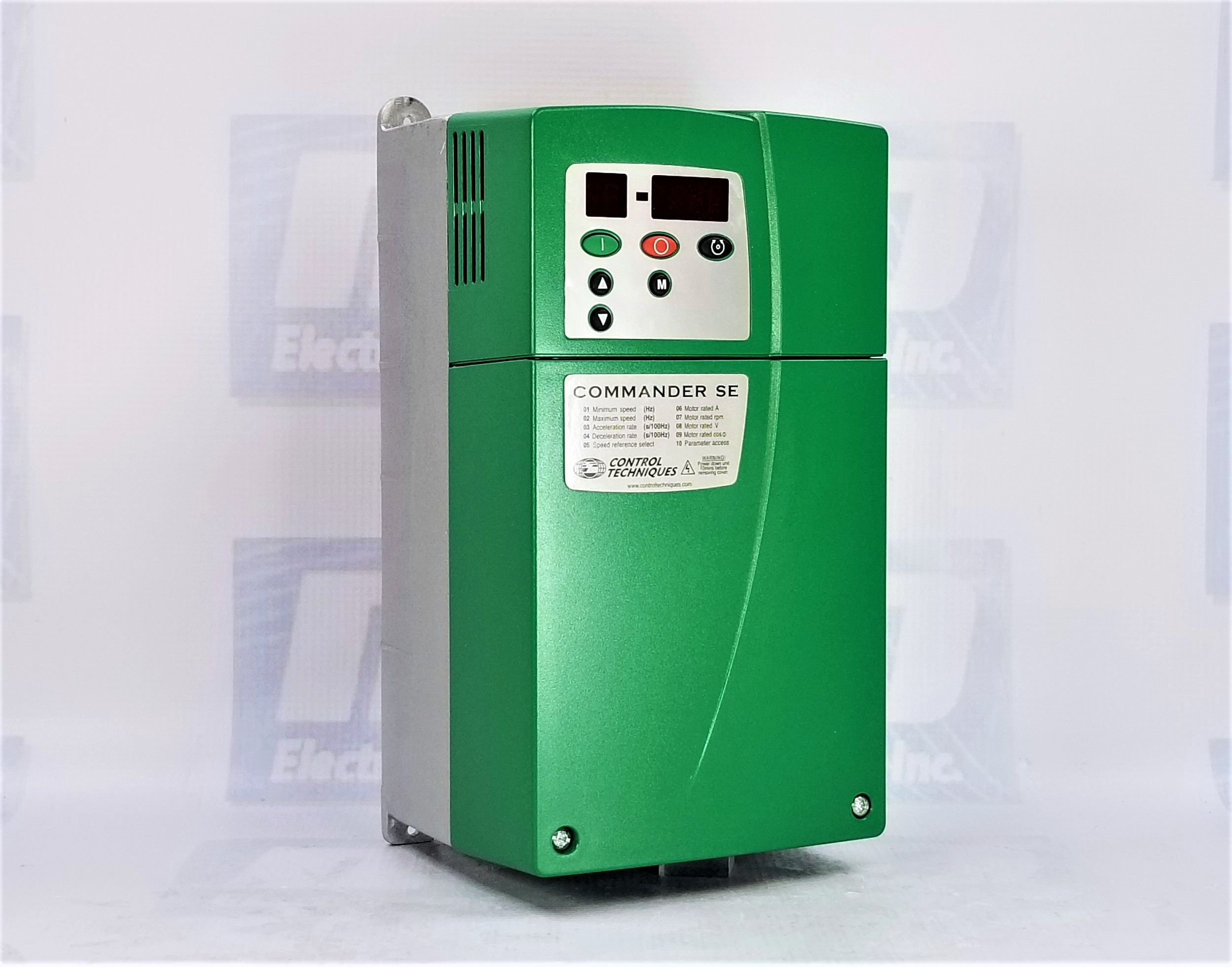

Control Techniques SE23400220

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Control Techniques

DESCRIPTION: AC DRIVE 380-480 SUPPLY VOLTS 2.2kW 3HP 5.8-8.7 AMP

PRODUCT TYPE INFO: Commander SE

6 in stock


Free Shipping

2 Year warranty

Part NumberSE23400220
ManufacturerControl Techniques
TypeAC Drives
Warranty2 Year
Range Commander SE
CategoryAC Drive
Voltage rating input380-480 V
Frequency output1-1000 Hz
Current rating output5.8 A
Voltage out0-480 V
Current rating input9.3 A
Frequency input50/60 Hz
