Yaskawa SGDB-15ADG

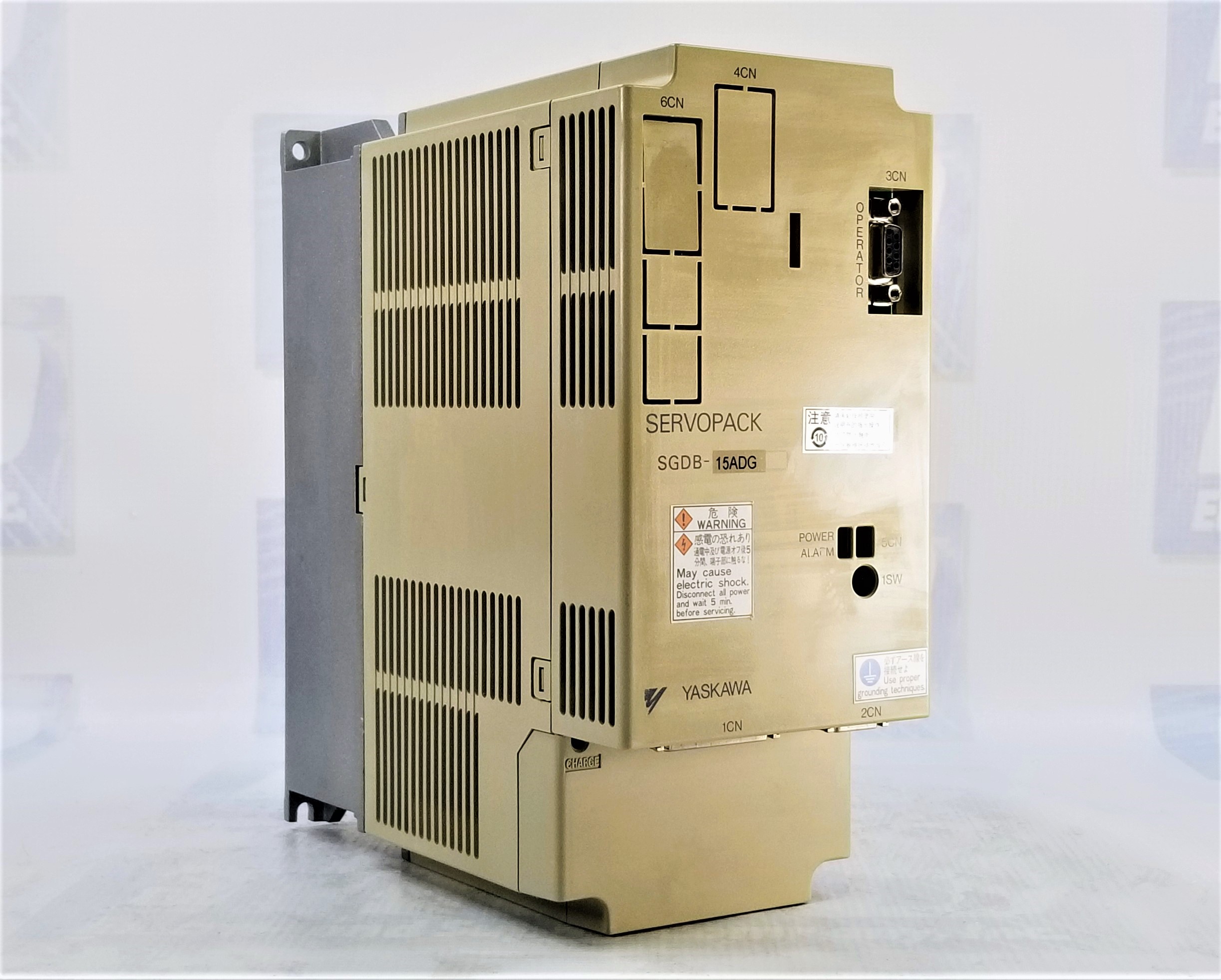

Yaskawa SGDB15ADG Servo Drive SGDB15ADG

Specifications:

The Yaskawa SGDB15ADG Servo Drive boasts impressive specifications, featuring an INPUT of 10 AMPS 3 PHASE 200-230 VAC 50/60 HZ and delivering an OUTPUT of 10.7 AMPS 3 PHASE 0-230 VAC, providing a substantial power output of 1.3 kW (kilowatts) or 1.74 HP (horsepower).

Power Supply Essentials:

• Utilize a 200VAC power supply.
• Avoid direct connection to the power frequency supply to prevent servomotor damage.

Pairing and Motor Compatibility:

• Always use the SGDB15ADG with the SGMj servomotor in correct motor series combinations.
• Verify and adjust parameter Cn-2A (motor selection) to prevent motor damage.

Safety Precautions:

• Turn the power OFF and wait for the CHARGE lamp to go OFF before maintenance.
• Be cautious of residual voltage and electric charge even after power is OFF.

Installation Guidelines:

Heat Dissipation and Environment:

• Install the SERVOPACK to allow for proper heat dissipation.
• Ensure an environment free from condensation, vibration, and shock.

Noise Reduction and Grounding:

• Properly perform noise reduction and grounding to prevent interference, vibration, or malfunction.
• Separate high-voltage and low-voltage cables, use short cables, and ground the SERVOPACK.

Voltage Resistance Test:

• Conduct a voltage resistance test under specific conditions to ensure safety.
• Use a fast-response type ground-fault interrupter designed for PWM inverters.

Operational Considerations:

Start and Stop Practices:

• Avoid frequent power ON/OFF; use reference pulses for starting or stopping the servomotor.
• Prevent internal circuit element deterioration caused by continuous ON/OFF cycling.

Frequently Asked Questions

Q1: What is the recommended power supply for the SGDB15ADG Servo Drive?

Answer: The SGDB15ADG Servo Drive requires a 200VAC power supply for optimal performance. Ensure the correct voltage and avoid direct connection to the power frequency supply to prevent damage.

Q2: Can I use a different servomotor with the SGDB15ADG?

Answer: It is recommended to always use the SGDB15ADG with the specified SGMj servomotor. Ensure the correct motor series combination and verify parameter Cn-2A (motor selection) after any changes to prevent potential motor damage.

Q3: What precautions should be taken during maintenance?

Answer: Turn the power OFF before any maintenance activities. Wait for the CHARGE lamp to go OFF to ensure there is no residual voltage or electric charge, minimizing the risk of electric shock.

Q4: How should I handle heat dissipation during installation?

Answer: Install the SGDB15ADG to allow for proper heat dissipation. Ensure the environment is free from condensation, vibration, and shock to maintain optimal performance.

Q5: What is the significance of the voltage resistance test?

Answer: The voltage resistance test is essential for safety. Conduct this test under specified conditions to ensure the integrity of the system, including voltage, current limit, frequency, and voltage application points.

Q6: Can I use a time-delay type ground-fault interrupter?

Answer: No, it is recommended to use a fast-response type ground-fault interrupter designed for PWM inverters. Avoid using a time-delay type for optimal safety.

Q7: Why is it important to avoid continuous operation under an overhanging load?

Answer: Continuous operation under overhanging load is not recommended as regenerative braking by the SERVOPACK can only be applied for a short period, such as motor deceleration time.

Q8: What is the significance of using reference pulses for starting or stopping the servomotor?

Answer: Frequent power ON/OFF can lead to internal circuit element deterioration. To prevent this, it is advised to start or stop the servomotor using reference pulses instead of continuous ON/OFF cycling.
