SGDH-02AE

2-year Warranty

Same Day Shipping

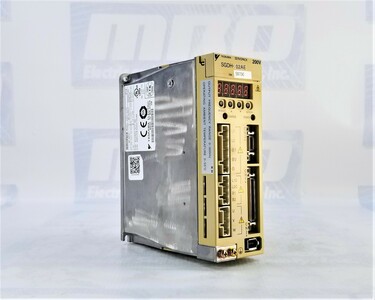

Yaskawa SGDH-02AE

SIGMA 2 DRIVES SIGMA 2 - SERVO MOTOR
5/5
2 ratings

Select Condition

Refurbished

1 in stock

New

2 in stock

$699.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberSGDH-02AE
ManufacturerYaskawa
TypeAC Drives
Model #SGDH02AE
Warranty2 Year
RangeSigma II
CategoryServopack
DescriptionServo drive
InputPulse/ Analog
AC input1phase 200-230 V
Input frequency50/60 Hz
Current rating3.4 A
Ambient temp0-55˚C
AC output3 Phase 0-230 V
Output frequency0-300 Hz
Current rating out2.1 A
Power rating0.2 kW

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed SGDH-02AE to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this SGDH-02AE we also repair a wide range of other Yaskawa products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty SGDH-02AE, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 6lbs

Want it shipped tomorrow?

  • Order within the next 20 hours and 22 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty SGDH-02AE for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Yaskawa SGDH-02AE Overview

Yaskawa SGDH-02AE Servo Drive: Precision and Efficiency in Motion Control

The Yaskawa SGDH-02AE belongs to the Sigma II series, representing a high-performance servo pack designed to meet the demanding requirements of industrial motion control applications. As a servo drive, it plays a crucial role in providing precise and efficient control over servomotors, contributing to the overall accuracy and reliability of automated systems.

Key Specifications:

Range: Sigma II

The Sigma II series is renowned for its advanced features and robust performance, making it a preferred choice for applications that demand precision and speed in motion control.

Category: Servopack

The SGDH-02AE falls under the category of Servopacks, indicating its role in driving and controlling servomotors. Servopacks play a vital role in converting control signals into precise and dynamic movements of the connected motor.

Description: Servo Drive

As a servo drive, the SGDH-02AE is responsible for amplifying control signals and providing the necessary power to the connected servomotor. It ensures that the motor responds accurately to the input commands, enabling precise motion in various industrial processes.

Input: Pulse/Analog

The SGDH-02AE supports both Pulse and Analog input signals, offering flexibility in terms of control options. This versatility allows users to choose the most suitable control method based on the specific requirements of their application.

AC Input: 1-phase 200-230 V

The servo drive operates on a single-phase AC input with a voltage rating of 200-230 V. This input configuration makes it compatible with common power sources found in industrial settings.

Input Frequency: 50/60 Hz

The SGDH-02AE accommodates input frequencies of 50/60 Hz, providing compatibility with different power systems and ensuring adaptability to varying operational environments.

Current Rating: 3.4 A

With a current rating of 3.4 A, the SGDH-02AE delivers the necessary power to drive the connected servomotor effectively. This current rating reflects the capability of the servo drive to handle specific loads with precision.

Ambient Temperature: 0-55˚C

The operational efficiency of the SGDH-02AE is maintained in a wide range of ambient temperatures, from 0 to 55 degrees Celsius. This temperature tolerance ensures reliable performance in diverse industrial conditions.

AC Output: 3 Phase 0-230 V

The servo drive produces a three-phase AC output with a voltage range of 0-230 V. This output configuration is suitable for driving three-phase servomotors commonly used in industrial automation.

Output Frequency: 0-300 Hz

The SGDH-02AE supports output frequencies ranging from 0 to 300 Hz. This wide frequency range enables the drive to generate a diverse range of motion profiles, making it versatile for different applications.

Current Rating Output: 2.1 A

The output current rating of 2.1 A indicates the drive's capability to supply the required current to the connected servomotor for efficient operation.

Power Rating: 0.2 kW

With a power rating of 0.2 kW, the SGDH-02AE delivers a balanced combination of power and precision, suitable for various applications where controlled and accurate motion is critical.

Frequently Asked Questions (FAQs) - Yaskawa SGDH-02AE Servo Drive

Q1: What is the Sigma II series, and what distinguishes the SGDH-02AE within this series?

A1: The Sigma II series is a line of advanced servo packs from Yaskawa known for their high-performance features. The SGDH-02AE is a specific model within this series, offering precise control over servomotors with its pulse and analog input capabilities, 3.4 A current rating, and a power rating of 0.2 kW.

Q2: What types of control signals does the SGDH-02AE support?

A2: The SGDH-02AE supports both Pulse and Analog input signals, providing users with flexibility in choosing the most suitable control method for their specific application requirements.

Q3: What is the significance of the 3.4 A current rating for the SGDH-02AE?

A3: The 3.4 A current rating indicates the drive's capability to supply the required power to the connected servomotor. This current rating is crucial for ensuring precise and efficient motion control in various industrial applications.

Q4: Can the SGDH-02AE operate in different ambient temperature conditions?

A4: Yes, the SGDH-02AE has an operational ambient temperature range of 0 to 55 degrees Celsius. This wide temperature tolerance makes it suitable for deployment in diverse industrial environments.

Q5: What types of servomotors are compatible with the SGDH-02AE?

A5: The SGDH-02AE is designed for use with the SGM series of Yaskawa servo motors. It is advisable to refer to the compatibility documentation to ensure the correct pairing with the applicable servomotor models.

Q6: How is the SGDH-02AE configured for different control modes?

A6: The SGDH-02AE can be configured for different control modes through its configurable and predefined fallback modes. Users can adapt the drive to specific operational requirements based on their application needs.

Q7: Does the SGDH-02AE offer any diagnostic indicators for channel status?

A7: Yes, the SGDH-02AE features LED indicators for channel diagnostics, providing visual feedback on the status of each channel. This aids in monitoring and troubleshooting potential issues in real-time.

Q8: What is the purpose of the 0.2 kW power rating of the SGDH-02AE?

A8: The 0.2 kW power rating signifies the drive's capacity to deliver a balanced combination of power and precision, making it suitable for applications where controlled and accurate motion is essential.

Q9: Is the SGDH-02AE suitable for single-phase power supply?

A9: Yes, the SGDH-02AE is designed to operate with a single-phase 200-230 V AC power supply, making it compatible with commonly available power sources in industrial settings.

Q10: How can users recalibrate the SGDH-02AE if needed?

A10: The SGDH-02AE comes factory-calibrated for optimal performance. Recalibration may not be necessary under normal operating conditions. However, if calibration is required, users should refer to the product documentation for specific instructions.

Yaskawa products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Schneider Electric and KUKA.
