SGDH-05AE

SGDH-05AE

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Yaskawa

DESCRIPTION: Servo Motor

PRODUCT TYPE INFO: Sigma 2

3 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

Part NumberSGDH-05AE
ManufacturerYaskawa
SeriesSigma 2 Drives
Model #SGDH05AE
TypeAC Drives
Warranty2 Year
Power Consumption0.5 max. W
Dimensions (W × H × D)20mm × 142mm × 128mm
ProtectionFully closed encoder open circuit detection
PhaseThree phase
Voltage Input200-230 VAC
Input Watts500 W
Input Hz50-60 Hz
Input Amps4 Amps
DestinationServo motor
Ambient temp (operation)0-55° C
Output AC0-230 V
Output Hz50-60 Hz
Output Amps3.8 A

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed SGDH-05AE to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this SGDH-05AE we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty SGDH-05AE, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 4lbs

Want it shipped today?

  • Order within the next 10 hours and 12 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty SGDH-05AE for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Yaskawa SGDH-05AE Overview

The Σ-II Series SGDH SERVOPACK drive module SGDH-05AE is a servo amp manufactured by Yaskawa for use with applicable servo motor modules. The SGDH-05AE module is a three-phase 200 V SERVOPACK module that can be used in areas such as CNC machining, robotics, and automation as well as other areas.

Features of the SGDH-05AE

Power supply and power losses for the Yaskawa servo pack SGDH-05AE

The Yaskawa SGDH-05AE module is a three-phase 200 V SERVOPACK unit that has an AC Input three-phase 200-230 V 50 / 60 Hz 4 A unit. The AC output for this unit is 3 phase 0- 230 V, 0- 300 Hz, 3.8 A., and 0.5 kW. The ambient operating temperature for this drive unit is 0-55°

The main circuit power loss rating for the three-phase 200 V drive module is 27 W with a total power loss rating of 54 W.

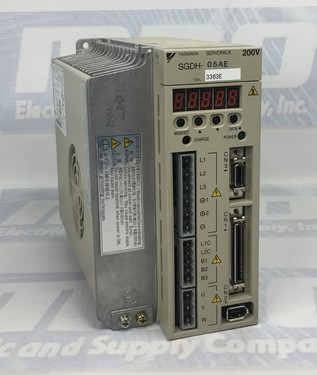

The front top right of the Yaskawa SGDH-05AE drive unit is a CN5 analog monitor connector. Located beneath the CN5 analog monitor connector is the panel display. The Servo pack’s panel display is a 5-digit, 7-segment LED. The panel display is used to display several aspects of SERVOPACK SGDH-05AE. It displays status, alarm status, and other values when parameters are input. The panel display is located within the panel operator which also contains the panel keys which is used to set parameters.

The two indicators located beneath the panel operator are the charge indicator and the power ON indicator. The charge indicator lights when the main circuit power supply is on. It continues to remain ON as long as the main circuit power supply capacitor keeps a charge. Be aware that the power supply may be disconnected while the charge remains within the unit. Touching the Yaskawa SERVOPACK SGDH-05AE drive unit is hazardous as long as the charge indicator is ON.

Regenerative resistor and the SGDH-05AE SERVOPACK

The regenerative resistor module can work with the SGDH-05AE SERVOPACK. The regenerative resistor is either internally mounted or externally mounted to the Yaskawa SGDH-05AE module.

Power returning to the servo amp side when the servo motor operates in generator mode is described as regenerative power. How is the regenerative power is absorbed? It is absorbed by charging the smoothing capacitor. In the case when the capacitor has exceeded its charging limit, the regenerative resistor reduces the regenerative power.

What are the conditions in which the Yaskawa servo motor is driven in regeneration mode? The three areas are:

-Decelerating to stop during acceleration/deceleration process

-With load on vertical axis

-During continuous operation with the servo motor driven from the load side

The built-in regenerative resistor on the servo amp is only used for a short-term operation like the deceleration stop period. It is unable to be operated under a negative load. An external regenerative resistor should be installed when the regenerative power is too great for the processing capacity of the servo amp.

The Σ-II Series SGDH SERVOPACK drive module SGDH-05AE comes with a two-year warranty.

Product Description

The SGDH-05AE is a Servo Motor that is manufactured by Yaskawa. These products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. All of the products in the sigma-2-drives line come with a 2 year warranty from MRO Electric. We also carry Servo Amplifiers from other manufacturers such as Schneider Electric and KUKA.
