SGDM04ADA

SGDM04ADA

Yaskawa Sigma-II Servopack - 1 Phase - 5.5A, 200V, 400W, 0.54HP

Available - call for stock

Free 2 Day Shipping
1 year warranty

Categories

Part NumberSGDM04ADA
ManufacturerYaskawa
SeriesSigma 2 Drives
Weight4lbs
TypeAC Drives
Warranty1 year

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed SGDM04ADA to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 12-month warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this SGDM04ADA we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty SGDM04ADA, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

This product weighs 4lbs. Want it shipped today?

  • Order within the next 10 hours and 20 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty SGDM04ADA for credit when ordering from MRO Electric

Additional Information

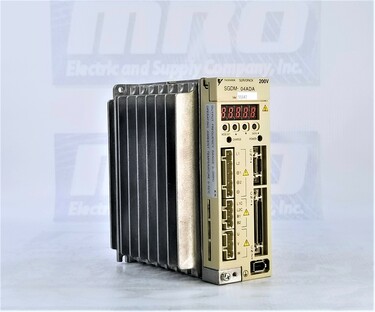

The Yaskawa SGDM-04ADA Servopack is high-performance, easy-to-use servo drive.  It has shortened settling time with its upgraded control algorithms that use model follow-up and vibration suppression.  It also touts high accuracy, high speed, and smooth operation that reduces motor speed ripples. The SGDM-04ADA can support a wide range of motor specifications, including 100VAC motors, single-phase from 0.03 to 0.2kW; 200VAC motors, single phase from 0.3 to 0.4kW; and 200VAC three-phase motors from 0.45 to 7.5kW.

The SGDM-04ADA also is built for easy set up and maintenance. With its online-autotuning feature, all a user needs to do is plug in and let the Servopack run. The unit’s enhanced inertia matching precision gets rid of the need for servo gain adjustment. The use of the serial encoder allows for the SGDM-04ADA to automatically sense motor capacity and type, which lets it automatically set motor parameters. The module also has built-in cumulative load factor monitoring and regenerative load ratio monitoring. It can connect to standard PC interfaces to allow for waveform display monitors, and can also be controlled through a digital operator, even without inputting speed commands.

SGDM-04ADA Wiring Configuration
SGDM-04ADA Wiring Diagram

There are a few precautions to take before putting your SGDM-04ADA into operation. Firstly, never connect a 3-phase power supply to the U, V, or W output terminals as this could result in injury or fire. It is also crucial that users never touch the power terminals on their Servopack for at least 5 minutes after turning the power Off since high voltages could still be present. One should also install the battery at either the host controller or the Servopack of the encoder. If both batteries are installed simultaneously, there will be a loop circuit between the batteries.

Check out the rest of our Yaskawa product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like SGDM04ADA, take a look at more from our Sigma 2 Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
