SGM7G-1EAFA61

2-year Warranty

Same Day Shipping

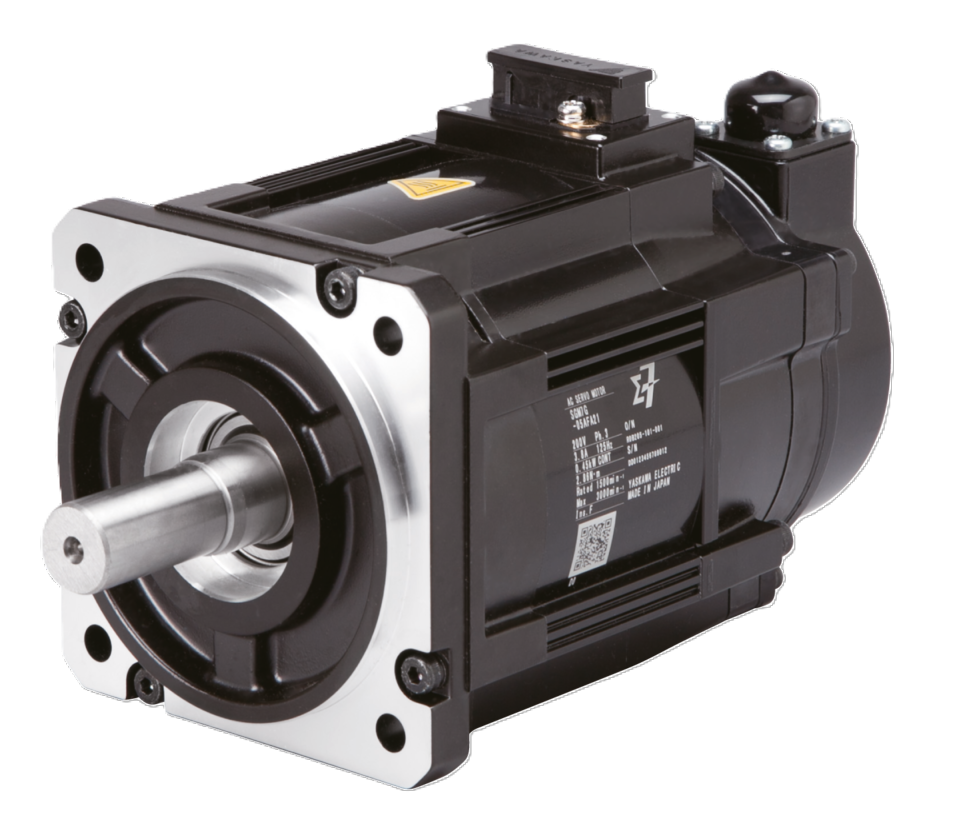

Yaskawa SGM7G-1EAFA61

Servo Motor, Flange compatible with Sigma-5, 24-bit high-resolution encoder installed

Available


Free Shipping

2 Year warranty

Part NumberSGM7G-1EAFA61
ManufacturerYaskawa
TypeServo Motors
Model #SGM7G1EAFA61
Warranty2 Year
RangeSigma 7
CategoryMotion control
DescriptionRotary servo motor
Shaft Straight with key and tap
Shaft End Length110 mm
Input power 200 V
Encoder Incremental
Rated output15 kW
Rated motor speed1500 1/min
Max torque224 Nm
Max motor speed3000 1/min
Rated torque95.4 Nm
Encoder resolution24 bit
Motor Moment of Inertia303 x10⁻⁴ kg·m²
Flange Dimension220 mm
Flange Diameter235 mm
Shaft End Diameter55 mm
Height260 mm
Width220 mm
Depth509 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed SGM7G-1EAFA61 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this SGM7G-1EAFA61 we also repair a wide range of other Yaskawa products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty SGM7G-1EAFA61, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 7 hours and 46 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty SGM7G-1EAFA61 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Yaskawa SGM7G-1EAFA61 Overview

Yaskawa SGM7G-1EAFA61 Servo Motor: Power and Precision in One

The Yaskawa SGM7G-1EAFA61 servo motor stands at the forefront of motion control technology, offering robust performance, unmatched precision, and exceptional reliability. Belonging to the Sigma-7 series, this rotary servo motor is designed for high-end industrial applications where accuracy, responsiveness, and efficiency are essential. With a focus on next-generation automation needs, this model seamlessly integrates into demanding systems, delivering consistent results in dynamic environments. Whether in manufacturing, robotics, or automated assembly, the SGM7G-1EAFA61 is built to exceed expectations with its superior engineering and long-lasting performance.

Technical Excellence and Powerful Performance

This servo motor features a rated output of 15 kW, making it suitable for high-torque and high-speed operations. With a rated torque of 95.4 Nm and the ability to deliver up to 224 Nm of maximum torque, it easily handles challenging workloads. The motor operates efficiently at a rated speed of 1500 RPM, with a maximum speed of 3000 RPM, enabling flexibility in various industrial applications. It's a straight shaft with key and tap configuration, along with a shaft end diameter of 55 mm and a length of 110 mm, ensuring a secure fit and precise alignment within machinery.

Dimensional Precision and Integration Flexibility

The SGM7G-1EAFA61 is designed with thoughtful attention to size and structure. It features a flange dimension of 220 mm and a flange diameter of 235 mm, supporting firm mounting and structural integrity. The overall dimensions—height of 260 mm, width of 220 mm, and depth of 509 mm—make it compact enough for space-conscious applications while still delivering high power output. Its motor moment of inertia (303 x10⁻⁴ kg·m²) contributes to stable and responsive performance during acceleration and deceleration phases.

Advanced Feedback with High-Resolution Encoder

Equipped with a 24-bit incremental encoder, the motor offers ultra-precise positioning and feedback for applications requiring fine motion control. The high-resolution encoder ensures smooth rotation and consistent responsiveness, enhancing performance in systems where accuracy is paramount. Combined with the motor's low inertia and advanced control, it provides outstanding synchronization in multi-axis systems.

Reliable and Supported for Long-Term Use

The Yaskawa SGM7G-1EAFA61 comes with a 2-year MRO Electric and Supply warranty, offering peace of mind and assurance of long-term reliability. Its build quality and rugged design reduce the need for frequent maintenance, making it a cost-effective choice over time. The Sigma-7 range is recognized globally for durability and innovation, making this model a trusted component in sophisticated automation systems.

Frequently Asked Questions (FAQs)

What is the rated power output of the SGM7G-1EAFA61?

The motor has a rated output of 15 kW, making it suitable for demanding industrial applications.

What type of encoder does this motor use?

It features a 24-bit incremental encoder for high-resolution feedback and precise motion control.

Is the shaft keyed?

Yes, the shaft is straight with a key and tap for secure mechanical integration.

What is the maximum torque this motor can provide?

The motor can deliver up to 224 Nm of maximum torque.

What is the rated motor speed?

The rated speed is 1500 RPM, with a maximum motor speed of 3000 RPM.

What is the warranty period?

It comes with a 2-year warranty from MRO Electric and Supply.

What are the motor's physical dimensions?

It has a height of 260 mm, a width of 220 mm, and a depth of 509 mm.

Can it be used in multi-axis motion control systems?

Its high-resolution encoder and stable performance make it ideal for multi-axis synchronization.

What input voltage does it require?

The motor operates on a 200 V input power supply.

What applications is this motor suited for?

It's ideal for robotics, CNC machinery, automated assembly lines, and other precision-driven industrial tasks.
