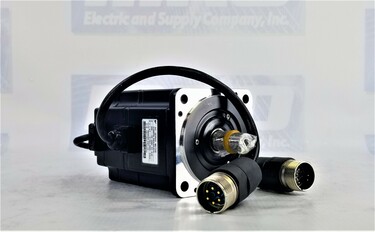

SIGMA SERIES SGMPH MOTOR. 200V 400W INCR. BRAKE 24V
| Part Number | SGMPH-04AAE4CD |
| Manufacturer | Yaskawa |
| Type | AC Motors |
| Model # | SGMPH04AAE4CD |
| Warranty | 2 Year |
| Description | SERVO MOTOR |
| Range | SIGMA-II |
| Configuration | CUBE TYPE |
| Power Rating | 0.4 KW |
| Power supply | 230 VAC |
| Encoder | 13-BIT INCREMENTAL |
| Protection | SGMPH (IP67) |
| Connection | STRAIGHT KEY |
| Brake | 24 V |
| (SGMAH SGMPH) | HYPERTAC CONNECTOR |
| Rated A | 2.6 Amp |
| r/min | 3000 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed SGMPH-04AAE4CD to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this SGMPH-04AAE4CD we also repair a wide range of other Yaskawa products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty SGMPH-04AAE4CD, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty SGMPH-04AAE4CD for credit when ordering from MRO Electric
The Yaskawa SGMPH-04AAE4CD is a high-performance AC servo motor for precision control and advanced automation systems. It belongs to the renowned Sigma-II series, known for its efficiency, accuracy, and reliability in industrial applications. With a compact cube-type configuration, the SGMPH-04AAE4CD is suitable for many uses where space constraints and precise motion control are critical. This servo motor is built to deliver exceptional performance, featuring a robust design that ensures long-term operational stability. It is backed by a 2-year warranty from MRO Electric and Supply, providing users with peace of mind and free shipping for added convenience.
The Yaskawa SGMPH-04AAE4CD operates with a power rating of 0.4 kW, making it suitable for medium-power applications in robotics, material handling, and machine tools. This servo motor runs on a 230 VAC power supply, offering compatibility with standard industrial voltage levels. Its high torque-to-size ratio ensures efficient power conversion, enabling machines to achieve faster speeds and smoother performance without consuming excessive energy. With a rated speed of 3000 RPM, this motor is optimized for rapid, high-precision motion control tasks, making it ideal for applications requiring dynamic movement and fine-tuned positioning.
One of the standout features of the Yaskawa SGMPH-04AAE4CD is its 13-bit incremental encoder, which enhances the motor's precision and feedback capabilities. The encoder provides 8192 unique positions per revolution, allowing accurate movement, positioning, and speed control. This level of precision is crucial in applications that require exact positioning, such as CNC machines, robotic arms, and automated manufacturing systems. The servo motor’s ability to deliver precise control improves overall system accuracy and efficiency.
Designed for harsh industrial environments, the Yaskawa SGMPH-04AAE4CD servo motor features durable construction that ensures long-lasting performance. It comes equipped with IP67-rated protection, completely resisting dust and water ingress. This makes it suitable for applications that involve exposure to moisture, dust, and other challenging conditions. The motor's rugged design, combined with its straight critical shaft connection, ensures reliable mechanical coupling and reduces the risk of slippage or misalignment during operation.
The SGMPH-04AAE4CD also has a built-in 24V brake, adding extra safety and control to its operation. The brake ensures the motor can stop instantly and hold its position when needed, preventing accidental movement during power loss or in emergencies. This feature is essential in applications where safety is paramount, such as automated machinery handling heavy or sensitive loads.
This Yaskawa servo motor utilizes the HyperTAC connector system, which provides a robust and secure connection between the motor and its control systems. The HyperTAC connector is known for its high reliability in demanding environments, ensuring consistent electrical connections and minimizing the risk of signal loss or interference. This ensures smooth communication between the motor and its controller, allowing for efficient and reliable operation over extended periods.
What is the power rating of the Yaskawa SGMPH-04AAE4CD?
The Yaskawa SGMPH-04AAE4CD servo motor has a power rating of 0.4 kW, making it suitable for medium-power industrial applications such as robotics, CNC machinery, and automated systems.
What type of encoder does the SGMPH-04AAE4CD use?
This servo motor has a 13-bit incremental encoder, providing 8192 unique positions per revolution for high-precision control and feedback. This enhances the accuracy of motion control in demanding applications.
What is the rated speed of the SGMPH-04AAE4CD motor?
The Yaskawa SGMPH-04AAE4CD's rated speed is 3000 RPM. This speed allows for fast and efficient operations in systems requiring quick, precise movements.
What protection level does the SGMPH-04AAE4CD offer?
The SGMPH-04AAE4CD is rated IP67, which means it is fully protected against dust and can withstand short immersion in water up to 1 meter. This makes it suitable for use in challenging industrial environments.
What is the operating voltage for the Yaskawa SGMPH-04AAE4CD?
The SGMPH-04AAE4CD operates with a power supply of 230 VAC, compatible with standard industrial electrical systems.
Does the SGMPH-04AAE4CD have a built-in brake?
Yes, this motor comes with a 24V built-in brake. The brake enhances safety by ensuring that the motor can stop and hold its position immediately, which is particularly useful in emergencies or during power loss.
What is the current rating of the SGMPH-04AAE4CD motor?
The SGMPH-04AAE4CD has a rated current of 2.6 A. This rating helps ensure efficient power consumption and optimal performance for medium-duty applications.
What type of connection is used in the SGMPH-04AAE4CD?
The motor uses a straight critical connection for the shaft, ensuring a reliable mechanical coupling with a low risk of slippage during operation. Additionally, it features a HyperTAC connector, known for its secure and dependable electrical connections in demanding environments.
What is the warranty on the Yaskawa SGMPH-04AAE4CD?
When purchased from MRO Electric and Supply, this servo motor comes with a 2-year warranty.
Is free shipping available for the SGMPH-04AAE4CD?
Yes, MRO Electric and Supply offer free shipping on the Yaskawa SGMPH-04AAE4CD, which provides cost savings and convenience for customers purchasing this servo motor.
What industries commonly use the SGMPH-04AAE4CD servo motor?
Due to its precision, reliability, and compact design, the Yaskawa SGMPH-04AAE4CD is commonly used in industries such as robotics, CNC machining, packaging, material handling, and various forms of automated manufacturing.
What is the configuration of the SGMPH-04AAE4CD?
This model is configured as a cube-type servo motor designed to fit into compact spaces while delivering high torque and precision.
