Control Techniques SKBD200150

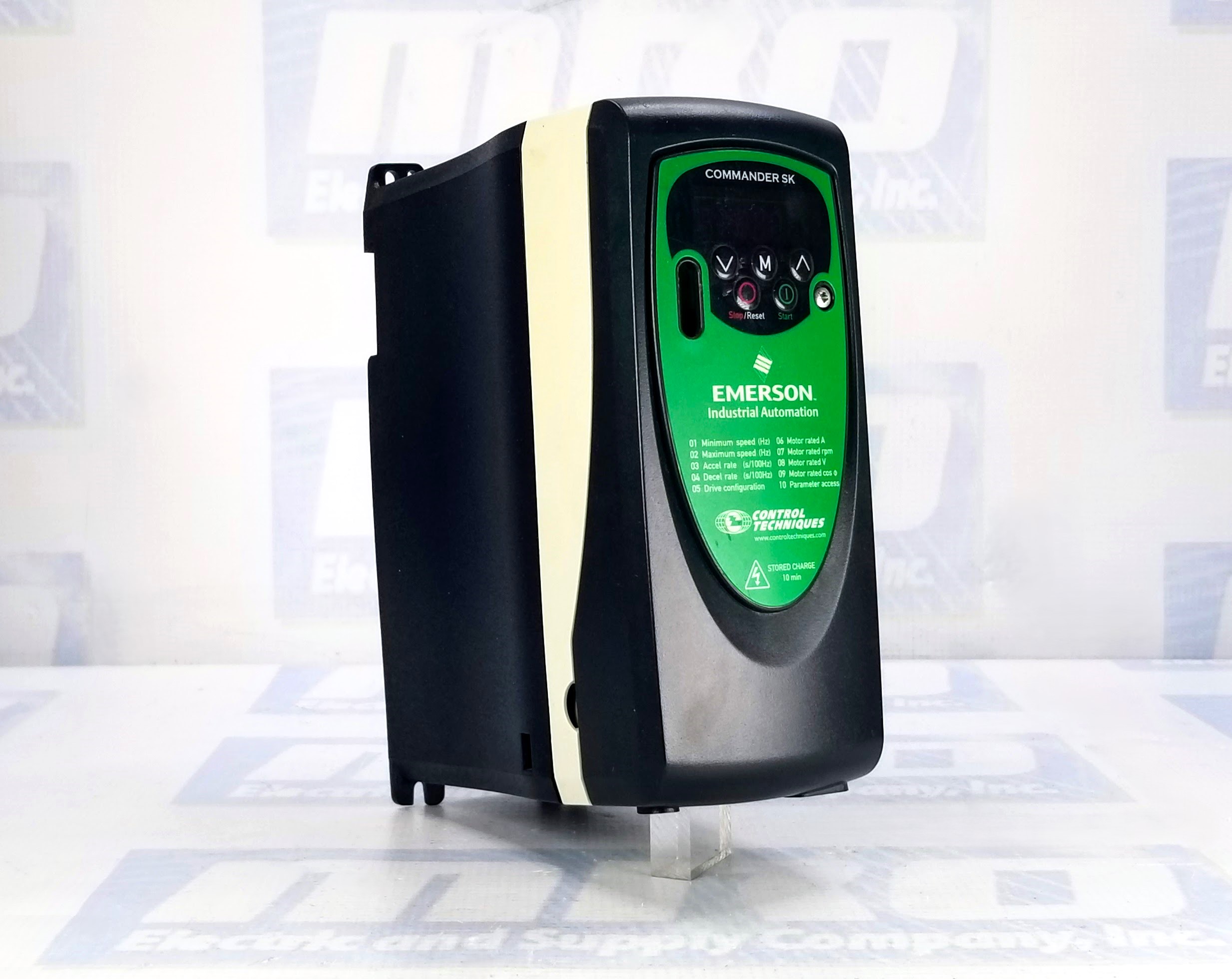

Control Techniques SKBD200150 – Commander SK Drive Inverter for Precision Motor Control

The Control Techniques SKBD200150 is a versatile and compact variable frequency drive (VFD) from the reliable Commander SK series. It is designed to provide efficient, accurate, and user-friendly motor control in a wide range of industrial applications. With a power rating of 1.5 kW, this drive inverter is suitable for small—to medium-sized motors and processes that require dependable speed regulation and energy efficiency. It is built to perform in dynamic environments, offering intelligent motor control with the flexibility to handle complex load conditions.

Robust Electrical Specifications for Industrial Demands

This drive inverter operates with an input voltage range of 200 to 240 VAC at 50/60 Hz and supports single-phase and three-phase input configurations. It draws 17.4 amps on single-phase and 8.7 amps on three-phase input, making it adaptable to various power setups in industrial and commercial systems. The output is delivered as a three-phase signal, rated at seven amps, with voltage up to 240 VAC and frequency output ranging from 0 to 1500 Hz. This wide output frequency range makes the SKBD200150 ideal for applications requiring precise speed control or specialized motor operation profiles.

Flexible Motor Control with High Performance

The Commander SK series is engineered with control techniques and long-standing expertise in motor control technology. The SKBD200150 allows for smooth acceleration and deceleration, fine speed adjustments, and high-starting torque performance. It can support open-loop vector control and V/Hz (volts per hertz) modes, enabling efficient operation of both standard induction and permanent magnet motors. This drive suits conveyors, fans, pumps, mixers, and other applications where energy savings and process control are critical.

Compact and User-Friendly Design

The SKBD200150 features a space-saving, compact form factor simplifying integration into control cabinets or machinery. It includes an intuitive keypad interface and supports parameter configuration via PC software or remote terminals, allowing for easy setup and monitoring. The unit's design ensures that wiring, commissioning, and diagnostics can be performed efficiently, minimizing downtime and maintenance overhead. Advanced protection features are also built to safeguard against overloads, overvoltage, under-voltage, short-circuits, and over-temperature conditions.

Reliability in Harsh Operating Conditions

This drive is built to withstand the rigors of demanding industrial environments. With proper enclosure protection, the SKBD200150 can be used in dusty, humid, or high-vibration conditions, ensuring reliable operation over extended lifecycles. It is also designed to maintain performance across a wide temperature range, supporting uninterrupted operation in challenging factory and field installations. As part of the Commander SK series, this drive benefits from proven engineering and high-quality automation.

FAQs – Control Techniques SKBD200150

What is the power rating of the SKBD200150?

It has a power rating of 1.5 kW, ideal for small to medium industrial motors.

What input voltage does this drive support?

It accepts 200–240 VAC, single-phase or three-phase, at 50/60 Hz.

What is the maximum output frequency?

The drive provides output frequencies from 0 to 1500 Hz for high-speed motor applications.

What is the output current of this inverter?

It delivers up to 7 amps of three-phase output current.

Can it control both induction and permanent magnet motors?

Yes, it supports both types using open-loop vector or V/Hz control.

Is the drive easy to program?

Yes, it includes a built-in keypad and supports PC-based software configuration.

What protections are included?

It features protection against overloads, short circuits, voltage issues, and over-temperature.

Is it suitable for fan and pump control?

It is commonly used in fans, pumps, conveyors, and mixers.

Can it be used in harsh environments?

Yes, it performs reliably with proper enclosure in dusty, humid, and high-vibration settings.

Is it part of a larger product family?

Yes, it's part of Control Techniques' Commander SK series, which is known for robust and versatile drives.
