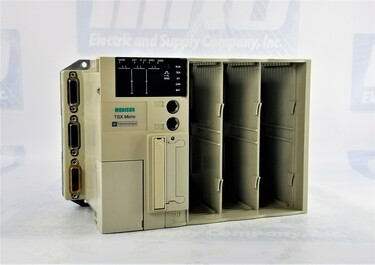

| Part Number | TSX3722001 |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | TSX-372-2001 |
| Warranty | 2 Year |
| Electromagnetic compatibility | Electrostatic discharge IEC 1000-4-2 level 3 |
| Electromagnetic field immunity test IEC 1000-4-3 level 3 | |
| Resistance to fast transient IEC 1000-4-4 level 3 | |
| Immunity to impulse waves IEC 1000-4-5 | |
| Damped oscillatory wave IEC 1000-4-12 | |
| Immunity to electromagnetic interference IEC 61131-2 | |
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 100...240 V 90...264 V AC |
| Input current | 2 mA < 60 A |
| Immunity to microbreaks | < 20 ms |
| Output current | 0.5 A |
| Number of slots | 3 |
| Analogue input type | 0...10 V 8 |
| Analogue output type | 0...10 V 1 |
| Counting input type | Discrete incremental counter 1 10 Hz |
| Incremental 1 10 Hz | |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s |
| 1 Modbus Modbus RTU 19.2 kbit/s | |
| Realtime clock | With |
| Memory description | Internal RAM 20 Kwords data |
| Internal RAM (with PCMCIA card) 128 Kwords program and data | |
| Internal RAM 128 Kwords data storage | |
| Flash 15 Kwords data |
| Maximum size of object areas | 256 %Mi |
| 1 %MWi internal words | |
| 128 %KWi constant words | |
| Execution time for 1 K instruction | 5.88 100 % Boolean without PCMCIA card |
| 0.27 65 % Boolean and 35 % numerical without PCMCIA card | |
| 4 100 % Boolean with PCMCIA card | |
| 0.266 65 % Boolean and 35 % numerical with PCMCIA card | |
| Application structure | 1 fast task |
| 1 master task | |
| 16 event tasks | |
| System overhead | 2.3 ms master task |
| Protection type | Overload protection |
| Network frequency | 50...60 Hz |
| Total useful secondary power | 24 W |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSX3722001 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSX3722001 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSX3722001, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TSX3722001 for credit when ordering from MRO Electric
The Schneider Electric TSX3722001 is a testament to innovation and reliability in industrial automation. As a modular base controller, it forms the backbone of the Modicon TSX Micro automation platform, offering unmatched performance and versatility for various applications.
Equipped with advanced electromagnetic compatibility features, the TSX3722001 ensures reliable operation even in challenging electrical environments. It meets stringent standards for electrostatic discharge, electromagnetic field immunity, resistance to fast transient, immunity to impulse waves, damped oscillatory waves, and electromagnetic interference, ensuring uninterrupted performance in demanding industrial settings.
Designed for seamless integration into industrial automation systems, the TSX3722001 boasts a modular design and robust construction. Its primary voltage range of 100 to 240 V AC accommodates various power inputs, while its compact footprint and 3-slot configuration make it suitable for space-constrained environments.
The TSX3722001 offers comprehensive input and output capabilities to meet the diverse needs of industrial applications. It features eight analog input channels ranging from 0 to 10 V, 1 analog output channel, and a discrete incremental counter for precise counting tasks. Additionally, it supports various communication protocols, including Uni-Telway and Modbus RTU, for seamless integration into existing networks.
With a robust memory architecture, the TSX3722001 provides ample storage space for programs and data. It boasts internal RAM of 20 K words for data storage, 128 K words with a PCMCIA card for program and data, and Flash memory for additional data storage. This ensures efficient operation and quick access to critical information.
The TSX3722001 delivers optimized performance with fast execution times for industrial applications. With a maximum execution time of 5.88 ms for 1 K instruction without a PCMCIA card and 4 ms with a PCMCIA card, it ensures rapid response and seamless operation, even in high-speed environments.
Equipped with overload protection and efficient power management capabilities, the TSX3722001 prioritizes system reliability and safety. It features a total useful secondary power of 24 W, ensuring stable operation and protection against power surges and fluctuations.
Q: What is the Schneider Electric TSX3722001?
A: The Schneider Electric TSX3722001 is a modular base controller that is a fundamental component of the Modicon TSX Micro automation platform.
Q: What are the key features of the TSX3722001?
A: The TSX3722001 boasts advanced electromagnetic compatibility, a modular design, comprehensive input/output capabilities, enhanced memory and processing power, optimized performance, reliable protection, and efficient power management.
Q: What is the primary voltage range supported by the TSX3722001?
A: The TSX3722001 supports a primary voltage range of 100 to 240 V AC, making it compatible with various power inputs commonly found in industrial settings.
Q: What communication protocols does the TSX3722001 support?
A: The TSX3722001 supports communication protocols such as Uni-Telway and Modbus RTU, enabling seamless integration into existing industrial networks.
Q: How does the TSX3722001 ensure reliable operation in challenging environments?
A: The TSX3722001 meets stringent standards for electromagnetic compatibility, including electrostatic discharge, electromagnetic field immunity, resistance to fast transient, impulse waves, damped oscillatory waves, and electromagnetic interference, ensuring uninterrupted performance in demanding industrial environments.
Q: What memory architecture does the TSX3722001 feature?
A: The TSX3722001 features internal data storage RAM, additional memory options with a PCMCIA card and Flash memory, and ample storage space for programs and data.
Q: What is the execution time for instructions on the TSX3722001?
A: The TSX3722001 offers fast execution times, with maximum execution times ranging from 5.88 ms to 4 ms for 1 K instruction, depending on the presence of a PCMCIA card.
Q: How does the TSX3722001 prioritize system reliability and safety? A: The TSX3722001 is equipped with overload protection and efficient power management capabilities to ensure stable operation and protection against power surges and fluctuations, enhancing system reliability and safety.
Q: What applications is the TSX3722001 suitable for?
A: The TSX3722001 is suitable for various industrial applications, including manufacturing, utilities, transportation, and more, thanks to its versatile functionality and robust design.Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
