TSXDSY16R5

2-year Warranty

Same Day Shipping

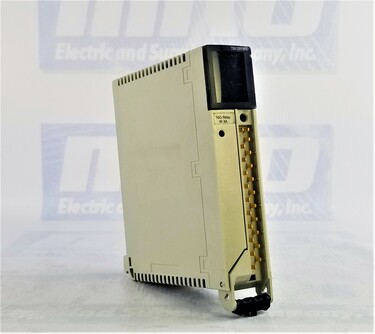

Schneider Electric TSXDSY16R5

MODICON PREMIUM DISCRETE OUTPUT MODULE MODICON PREMIUM - 16 O RELAY

5/5
2 ratings

Select Condition

Refurbished

3 in stock

New

11 in stock

$549.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberTSXDSY16R5
ManufacturerSchneider Electric
TypeBases
Model #TSX-DSY-16R5
Warranty2 Year
Module formatStandard
Product or component typeDiscrete output module
Discrete output number16
Discrete output typeRelay not protected
Discrete output voltage24...240 V AC conforming to EN/IEC 61131-2
20...264 V
12...24 V DC conforming to EN/IEC 61131-2 10...34V
[Ith] conventional free air thermal current3 A
Response time< 8 ms activation
< 10 ms deactivation
Contacts type and composition1 NO
Output overvoltage protectionAC inductive, by RC circuit MOV (ZNO) on each preactuator
DC inductive, by discharge diode on each preactuator
Output overload protection1 external fuse per channel or group of channel fast blow
Short-circuit protection1 external fuse per channel or group of channel fast blow
Isalotion resistance> 10 MOhm 500 V
Power dissipation(0.25 W + 0.2 W x No of outputs at state 1)
Electrical durability700000 cycles AC-12 50 VA 24 V resistive
5000000 cycles AC-15 10 VA 48 V inductive
5000000 cycles AC-15 10 VA 220 V inductive
5000000 cycles AC-15 10 VA 110 V inductive
5000000 cycles AC-14 10 VA 48 V inductive
5000000 cycles AC-14 10 VA 220 V inductive
5000000 cycles AC-14 10 VA 110 V inductive
500000 cycles AC-15 24 VA 24 V inductive
500000 cycles AC-14 24 VA 24 V inductive
500000 cycles AC-12 220 VA 110 V resistive
500000 cycles AC-12 110 VA 48 V resistive
3000000 cycles AC-15 50 VA 220 V inductive
3000000 cycles AC-14 50 VA 220 V inductive
2000000 cycles AC-15 24 VA 48 V inductive
2000000 cycles AC-14 24 VA 48 V inductive
1500000 cycles AC-15 50 VA 110 V inductive
1500000 cycles AC-14 50 VA 110 V inductive
150000 cycles AC-15 110 VA 110 V inductive
150000 cycles AC-14 110 VA 110 V inductive
1000000 cycles AC-15 110 VA 220 V inductive
1000000 cycles AC-14 110 VA 220 V inductive
1000000 cycles AC-12 50 VA 48 V resistive
1000000 cycles AC-12 220 VA 220 V resistive
1000000 cycles AC-12 110 VA 110 V resistive
100000 cycles AC-15 220 VA 220 V inductive
100000 cycles AC-14 220 VA 220 V inductive
300000 cycles DC-12 40 W 24 V resistive
2000000 cycles DC-3 10 W 24 V inductive
1000000 cycles DC-3 24 W 24 V inductive
1000000 cycles DC-12 24 W 24 V resistive
MarkingCE
Electrical connectionScrew terminal block
Current consumption80 mA 5 V DC
135 mA 24 V DC rack

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXDSY16R5 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXDSY16R5 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXDSY16R5, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 15 hours and 13 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXDSY16R5 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXDSY16R5 Overview

Schneider Electric TSXDSY16R5 Discrete Output Module

The Schneider Electric TSXDSY16R5 is a reliable and versatile discrete output module designed to streamline the performance of automation systems. Part of the high-quality Schneider Electric product lineup, this module is engineered to meet industrial standards for durability, flexibility, and efficient operation. It is a relay output base with robust specifications for various control applications, providing essential relay-based switching for automation tasks across multiple voltages. With a 2-year MRO Electric and Supply warranty, the TSXDSY16R5 ensures dependable functionality backed by extensive support.

Output Specifications and Versatile Voltage Compatibility

The TSXDSY16R5 offers 16 discrete relay outputs, making it suitable for applications that demand multiple relay-controlled connections. It is compatible with AC and DC voltages, supporting a range from 24 to 240 V AC and 12 to 24 V DC, in compliance with EN/IEC 61131-2 standards. This versatility enables its integration into various control environments without additional adaptors, simplifying the process for systems handling mixed voltage requirements. The module’s discrete output type is designed as a relay without extra protection, offering direct control for connected devices.

Fast and Reliable Response Times

The TSXDSY16R5 is designed for quick and efficient operation, boasting response times of less than 8 ms for activation and less than 10 ms for deactivation. This rapid response capability is crucial for time-sensitive applications where prompt relay switching can impact system efficiency and safety. The module’s contact composition, with a normally open (NO) configuration, ensures straightforward and reliable switching.

Robust Protection Features

The TSXDSY16R5 includes built-in protection mechanisms to enhance durability and prevent equipment damage. Each output has overvoltage protection: AC inductive loads are safeguarded with RC circuit MOV (ZNO), while DC inductive loads have protection from a discharge diode on each actuator. The module allows for an external fast-blow fuse per channel or channel group for overload and short-circuit scenarios. These safeguards prevent issues affecting the module and connected devices, ensuring operational safety and reliability.

Durable and Long-Lasting Performance

Engineered for endurance, the TSXDSY16R5 can perform up to 5 million switching cycles for specific AC and DC loads. The module’s design ensures high electrical durability, making it ideal for intensive industrial use where repetitive switching is required. For instance, it can perform up to 1 million cycles at 220 V resistive loads (AC-12) and up to 2 million cycles at 24 V DC inductive loads (DC-3). Its extensive electrical durability underscores its suitability for rigorous applications.

Efficient Power Dissipation and Low Consumption

The TSXDSY16R5 is designed for efficient power dissipation with a formula of (0.25 W + 0.2 W x number of active outputs), ensuring it remains cool under load. It also features low current consumption, drawing 80 mA at 5 V DC and 135 mA at 24 V DC, making it a resource-efficient choice for long-term use in power-sensitive environments.

Marking, Connection, and Compliance

This module is CE-marked, assuring compliance with industry standards for quality and safety. It utilizes a screw terminal block for secure and straightforward electrical connections, reducing the risk of loose wiring in critical control applications.

Frequently Asked Questions (FAQs)

1. What types of applications is the TSXDSY16R5 suitable for?

The TSXDSY16R5 is ideal for automation systems requiring discrete relay outputs, including control of motors, actuators, and other electromechanical devices in industrial settings.

2. Can this module handle both AC and DC loads?

Yes, the TSXDSY16R5 supports a range of AC voltages from 24 to 240 V and DC voltages from 12 to 24 V, making it adaptable to various control environments.

3. What protections are built into the TSXDSY16R5?

The module features overvoltage protection for AC and DC inductive loads and the option for external fast-blow fuses for overload and short-circuit protection, ensuring safe operation.

4. How fast is the response time for this module?

The TSXDSY16R5 has a quick response time of less than 8 ms for activation and less than 10 ms for deactivation, suitable for applications requiring rapid switching.

5. How durable is the TSXDSY16R5 for long-term use?

It is highly durable and capable of up to 5 million cycles for specific loads. This durability makes it suitable for applications with repetitive switching needs.

6. What are the power dissipation and current consumption levels?

Power dissipation is calculated as (0.25 W + 0.2 W per active output). It draws 80 mA at 5 V DC and 135 mA at 24 V DC, optimizing power usage for sustained efficiency.
