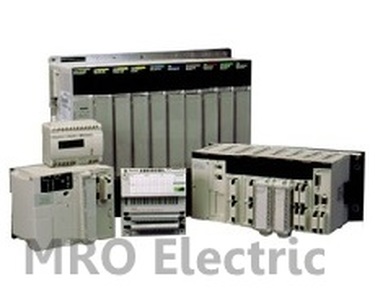

TSXETZ510

TSXETZ510

Ethernet Module - 10/100 Mbps, 56 Kbps - Transparent Ready - 24 V DC Supply
Available

Free Shipping
2 Year warranty

Categories

Part NumberTSXETZ510
ManufacturerSchneider Electric
SeriesModicon Micro
Model #TSXETZ510
Alternate ModelTSX-ETZ-510
TypePLC
Warranty2 Year
Product weight0.28 kg
Range of productFactoryCast Gateway
Product or component typeEthernet module
Kit compositionGateway module
User manual
Web Designer software (CD-ROM)
ConceptTransparent Ready
Type of modemVia radio
Via satellite
Via telephone line
Structure typeHeterogeneous industrial bus Ethernet IEEE 802.3
TopologyStar Ethernet
Tree-structure Ethernet
Transmission rate10/100 Mbit/s Ethernet
56 kbit/s maximum serial link by modem
Web servicesAccess function to the PLC data and variables Data Editor
Communication diagnostics function
Graphic objects editor
IP configuration for TSX ETZ 410/510 module via standard browser
Maximum simultaneous connection of 8 standard browsers
PLC diagnostics system function RackViewer
Web pages defined by the user (8 MB available)
Communication service1 kB client/server requests Uni-Telway
128 byte client/server requests Uni-Telway
128 byte synchronous requests Modbus
Client/Server mode Modbus
Client/Server mode Uni-Telway
[Us] rated supply voltage24 V DC
Communication port protocolEthernet
Serial link by modem
Physical interfaceRTC link RS232 serial link by modem
Exchange modeHalf or full duplex serial link by modem
Transmission support mediumDouble shielded twisted pair of type STP 10BASE-T Ethernet
Ethernet cable category 5 100BASE-T Ethernet
Shielded RS232 cable serial link by modem
Number of devices<= 64 star Ethernet
2 point to point serial link by modem
Cable length100 m between terminal device and hubs Ethernet
Ethernet serviceAdjustment, debugging and modifications to the program
Diagnostics module
Download of Uni-Telway PL7 applications
Inter-PLC communication in Uni-Telway or Modbus TCP/IP
Remote terminal
Scanned inputs/outputs service performed
Supply voltage limits19.2...30 V DC
Maximum overvoltage on input34 V
Power dissipation in W2.4...4 W
Electrical connection1 connector mini DIN for terminal port (TER address)
1 connector RJ45
1 connector RJ45 for Uni-Telway auxiliary port RS485 serial link
1 connector SUB-D 9 for RS232 serial link (Modem)
Screw terminal block for connecting to the external power supply
Local signalling1 LED RUN
1 LED ERR
1 LED RX/TX
Current consumption100 mA 24 V DC
50...200 mA 24 V DC
Mounting supportMounting plate
Width39.83 mm
Height151.5 mm
Depth116.7 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXETZ510 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXETZ510 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXETZ510, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 6 hours and 22 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXETZ510 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The TSXETZ510 is a Ethernet Module - 10/100 Mbps, 56 Kbps - Transpare... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-micro line come with a 2 year warranty from MRO Electric. We also carry TSX from other manufacturers such as Modicon and ABB.
