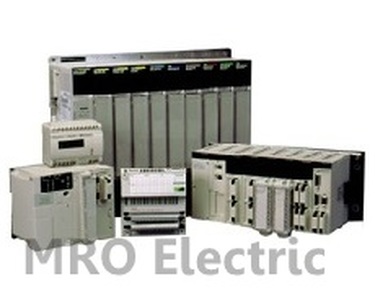

TSXIBY100C

TSXIBY100C

Coated Interbus Bus Module - Industrial Bus - For Premium PLC - 500 Ma At 5 V DC
Available

2 Year warranty

Categories

Part NumberTSXIBY100C
ManufacturerSchneider Electric
SeriesModicon Micro
Model #TSXIBY100C
Alternate ModelTSX-IBY-100-C
TypePLC
Warranty2 Year
Product weight0.32 kg
Range of productModicon Premium Automation platform
Product or component typeInterBus bus module
Product specific applicationFor Premium PLC
Structure typeIndustrial bus
Number of tap-offs<= 16 remote bus
Physical interfaceCombined interface InterBus loop
RS485 remote bus
RS485 with 24 V DC in cable installation remote bus
TTL local bus
Method of accessMaster/Slave generation 4
Mode of transmissionNRZ
Transmission rate500 kbit/s
Transmission support medium2 x 1.5 mm² InterBus loop
Fiber optic remote bus
Infrared remote bus
Rotating collector remote bus
Twisted pair remote bus
Wave guide rail remote bus
Length of segment<= 200 m InterBus loop
<= 400 m remote bus
Cable length<= 1.5 m local bus between 2 bus terminals modules
<= 1.5 m local bus between bus terminal module and first module
<= 10 m InterBus loop between 2 bus terminals modules
<= 10 m local bus between bus terminal module and last module
<= 100 m InterBus loop between bus terminal module and last module
<= 12800 m remote bus between module and last station on the remote bus
<= 20 m InterBus loop between bus terminal module and first module
<= 400 m remote bus between 2 bus terminals modules
<= 400 m remote bus between module and the first bus terminal module
<= 50 m installation remote bus between 2 bus terminals modules
<= 50 m installation remote bus between bus terminal module and last module
<= 50 m between bus terminal module and first module
Number of loops1 InterBus loop
Number of bus terminals module<= 254 remote bus
Number of slave<= 512 remote bus
<= 63 InterBus loop
<= 8 local bus
Input/Output number<= 4096 <= 3872 <= 3872 remote bus
Communication serviceBus operating modes management
Cyclical variable exchange
Logical addressing
PMS messaging
Pre-processing
Segmentation
Implicit exchange of data process 242 %IW 242 %QW
Local signalling6 LEDs
Electrical connection1 connector female SUB-D 9 RS232 CMD tool software support
1 connector female SUB-D 9 RS485 Interbus link
Current consumption500 mA 5 V DC
Module formatStandard
Protective treatmentConformal coating Humiseal 1A33

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXIBY100C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXIBY100C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXIBY100C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 1 hour and 56 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXIBY100C for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The TSXIBY100C is a Coated Interbus Bus Module - Industrial Bus - For ... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-micro line come with a 2 year warranty from MRO Electric. We also carry TSX from other manufacturers such as Modicon and ABB.
