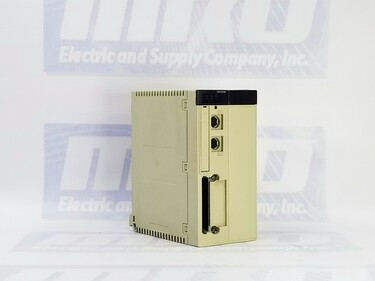

MANUFACTURER: SCHNEIDER ELECTRIC
DESCRIPTION: Unity Processor, 8 Racks (12 Slots), 16 Racks (4/6/8 Slots) - 1180 Ma, 5 V DC
PRODUCT TYPE INFO: MODICON PREMIUM
Part Number | TSXP57304M |
Manufacturer | Schneider Electric |
Model # | TSXP57304M |
Type | CPUs |
Warranty | 2 Year |
Module format | Double |
Product or component type | Unity processor |
Number of racks | 8 12 slots |
16 4/6/8 slots | |
Discrete I/O processor capacity | 1024 I/O |
Analogue I/O processor capacity | 128 I/O |
Number of application specific channel | ≤ 32 |
Number of process control channel | ≤ 15 up to 45 simple loops |
Integrated connection type | Serial link 2 female mini DIN RS485 19.2/115 kbit/s |
Communication module processor | 1 |
3 | |
3 |
8 | |
Memory description | PCMCIA card 16384 kB additional data storage |
Internal RAM (with PCMCIA card) 1792 kB program | |
Internal RAM (with PCMCIA card) 192 kB data | |
Internal RAM (without PCMCIA card) 192 kB program and data | |
Software designation | Unity Pro |
Protective treatment | TC |
Number of slots | ≤ 128 |
Maximum size of object areas | 64 %KWi constant words located internal data |
64 %MWi internal words located internal data | |
64 kB (DFB and EFB function blocks) unlocated internal data | |
64 kB (elementary and derived data) unlocated internal data | |
16384 %Mi located internal bits | |
Application structure | 1 fast task |
1 master task | |
64 event tasks | |
Execution time per instruction | 0.12 µs Boolean without PCMCIA card |
0.17 µs word or fixed-point arithmetic without PCMCIA card | |
0.17 µs Boolean with PCMCIA card | |
0.32 µs word or fixed-point arithmetic with PCMCIA card | |
1.75...3 µs floating points without PCMCIA card | |
1.75...3 µs floating points with PCMCIA card | |
Number of instructions per ms | 3.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card |
4.59 Kinst/ms 100 % Boolean with PCMCIA card | |
5.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | |
6.72 Kinst/ms 100 % Boolean without PCMCIA card | |
System overhead | 0.35 ms fast task |
1 ms master task | |
Marking | CE |
Local signalling | 1 LED green processor running (RUN) |
1 LED red processor or system fault (ERR) | |
1 LED red I/O module or configuration fault (I/O) | |
1 LED yellow activity on TER or AUX terminal port (TER) | |
Current consumption | 1180 mA 5 V DC |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXP57304M to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXP57304M we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXP57304M, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TSXP57304M for credit when ordering from MRO Electric
Additional Information
The TSXP57304M is a Unity Processor, 8 Racks (12 Slots), 16 Racks (4/6... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products come with a 2 year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TSXP57304M, take a look at more from our CPUs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TSXP57304M products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
