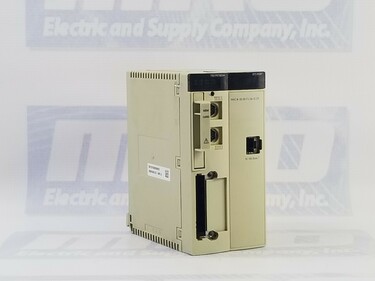

MODICON PREMIUM DOUBLE-FORMAT PL7 PROCESSOR - TRANSPARENT READY - 1360 MA
| Part Number | TSXP573623AM |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | TSX-P57-3623AM |
| Warranty | 2 Year |
| Module format | Double |
| Product or component type | Double-format PL7 processor |
| Software designation | PL7 Junior/Pro |
| Concept | Transparent Ready |
| Number of racks | 8 12 slots |
| 16 4/6/8 slots | |
| Number of slots | <= 128 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of application specific channel | <= 32 |
| Number of process control channel | <= 15 up to 45 simple loops |
| Integrated connection type | Non isolated serial link 2 female mini DIN 19.2/115 kbit/s |
| Ethernet TCP/IP RJ45 10/100 Mbit/s | |
| Communication module processor | 8 AS-Interface bus modules |
| 2 network modules | |
| 2 fieldbus modules | |
| 1 fieldbus modules (1 if CANopen used) | |
| Memory description | PCMCIA card 384 Kwords program |
| PCMCIA card 2688 Kwords additional data storage | |
| Internal RAM (without PCMCIA card) 64 Kwords program and data | |
| Internal RAM (with PCMCIA card) 80 Kwords data | |
| Maximum size of object areas | 32 %KWi constant words located internal data |
| 30.5 %MWi internal words located internal data | |
| 16384 %Mi located internal bits | |
| Application structure | 1 fast task |
| 1 master task | |
| 64 event tasks | |
| Execution time per instruction | 2.6 µs floating points with PCMCIA card |
| 2.5 µs floating points without PCMCIA card | |
| 0.33 µs word or fixed-point arithmetic with PCMCIA card | |
| 0.17 µs word or fixed-point arithmetic without PCMCIA card | |
| 0.17 µs Boolean with PCMCIA card | |
| 0.12 µs Boolean without PCMCIA card |
| Number of instructions per ms | 6.57 Kinst/ms 100 % Boolean without PCMCIA card |
| 4.7 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | |
| 4.49 Kinst/ms 100 % Boolean with PCMCIA card | |
| 3.08 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card | |
| System overhead | 1.15 ms master task |
| 0.29 ms fast task | |
| Marking | CE |
| Local signalling | 1 LED yellow transmission activity (TX) |
| 1 LED yellow reception activity (RX) | |
| 1 LED yellow Ethernet link diagnostics (STS) | |
| 1 LED yellow activity on the terminal port (TER) | |
| 1 LED red processor or system fault (ERR) | |
| 1 LED red I/O module or configuration fault (I/O) | |
| 1 LED red Ethernet TCP/IP port fault (ERR) | |
| 1 LED red collision detection (COL) | |
| 1 LED green processor running (RUN) | |
| 1 LED green Ethernet TCP/IP port ready (RUN) | |
| Current consumption | 1360 mA 5 V DC |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXP573623AM to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXP573623AM we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXP573623AM, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TSXP573623AM for credit when ordering from MRO Electric
The Schneider Electric TSXP573623AM is a high-performance double-format PL7 processor designed to provide reliable and flexible control in industrial automation systems. It belongs to Schneider’s Modicon Premium range and supports the PL7 Junior/Pro software platform, offering advanced programming capabilities for various control tasks. With its high I/O capacity and extensive communication features, this processor is well-suited for applications requiring large-scale automation. Backed by a two-year MRO Electric and Supply warranty, this CPU module ensures reliability and long-term operation in demanding industrial environments.
The TSXP573623AM is a double-format module, providing robust processing power and large memory capacity. It supports a maximum of 8 racks with 12 slots or 16 racks with 4, 6, or 8 slots, allowing for up to 128 slots. This significant capacity enables the processor to handle complex, large-scale industrial automation projects. Additionally, it features a discrete I/O processor capacity of 1024 I/O and an analog I/O processor capacity of 128 I/O, offering excellent versatility in managing various input/output devices.
To enhance system integration, the TSXP573623AM processor features comprehensive communication capabilities. It has a non-isolated serial link with two female mini-DIN ports supporting communication speeds of 19.2 to 115 kbit/s. Moreover, it includes Ethernet TCP/IP connectivity via an RJ45 port, with a 10/100 Mbit/s transmission speed for fast and reliable network communication. For Fieldbus communication, the processor supports 8 AS-Interface bus modules, two network modules, and up to 2 fieldbus modules (or one if CANopen is utilized). This extensive connectivity enables smooth communication and integration with various field devices, making it an ideal choice for industrial applications requiring high connectivity and versatility.
The Schneider Electric TSXP573623AM provides flexible memory options for handling large programs and extensive data storage. It includes an internal RAM of 64 K for programs and data, expandable to 80 K words with an additional PCMCIA card. For larger projects, the processor supports PCMCIA cards with 384 K words for program storage and 2688 K for additional data storage, ensuring ample space for program development and execution.
The TSXP573623AM excels in execution speed, with Boolean instruction execution times as low as 0.12 µs without a PCMCIA card and 0.17 µs with a card installed. This results in impressive overall processing speeds, achieving up to 6.57 Kinst/ms for Boolean instructions and 4.7 Kinst/ms for mixed arithmetic operations.
The TSXP573623AM has multiple LEDs for clear status indication, making diagnostics straightforward. These include yellow LEDs for transmission (TX), reception (RX), Ethernet link diagnostics (STS), and terminal port activity (TER). Additionally, red LEDs indicate processor/system faults (ERR), I/O configuration faults (I/O), Ethernet port faults, and collision detection. Green LEDs indicate when the processor is running (RUN) and the Ethernet TCP/IP port is ready. These visual indicators allow operators to quickly identify issues, streamlining system maintenance and troubleshooting.
This CPU module operates with a current consumption of 1360 mA at 5 V DC, ensuring efficient energy usage. It complies with international standards and carries the CE marking, indicating adherence to safety and electromagnetic compatibility requirements. The Transparent Ready concept further enhances its ease of integration into industrial networks.
Q: What software is supported by the TSXP573623AM processor?
A: The TSXP573623AM supports PL7 Junior/Pro software, allowing advanced programming and application development.
Q: How many I/O points can this processor handle?
A: The discrete I/O capacity is 1024 I/O, and the analog I/O capacity is 128 I/O, offering flexibility for various applications.
Q: What are the memory expansion options for this CPU?
A: The processor supports PCMCIA cards with 384 K words for programs and 2688 K words for additional data storage, expanding the internal RAM capacity.
Q: How does the TSXP573623AM handle communication and connectivity?
A: It features a non-isolated serial link with two female mini-DIN ports, Ethernet TCP/IP connectivity with speeds of 10/100 Mbit/s, and support for AS-Interface, network, and Fieldbus modules.
Q: What diagnostic features are included in this processor?
A: The TSXP573623AM has multiple LEDs indicating transmission/reception activity, Ethernet link diagnostics, terminal port activity, processor/system faults, I/O faults, and more, making it easy to monitor and troubleshoot.
