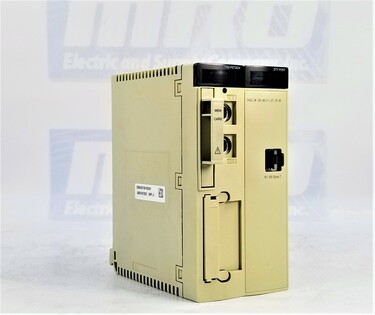

MODICON PREMIUM UNITY PROCESSOR - 8 RACKS (12 SLOTS) / 16 RACKS (4/6/8 SLOTS) - 1900 MA, 5 V DC
| Part Number | TSXP573634M |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | TSX-P57-3634M |
| Warranty | 2 Year |
| Module format | Double |
| Product or component type | Unity processor |
| Number of racks | 8 12 slots |
| 16 4/6/8 slots | |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of application specific channel | ≤ 32 |
| Number of process control channel | ≤ 15 up to 45 simple loops |
| Integrated connection type | Ethernet TCP/IP RJ45 |
| Serial link 2 female mini DIN RS485 19.2/115 kbit/s | |
| Communication module type processor | 1 |
| 2 | |
| 3 | |
| 8 | |
| Memory description | PCMCIA card 16384 kB additional data storage |
| Internal RAM (with PCMCIA card) 1792 kB program | |
| Internal RAM (with PCMCIA card) 192 kB data | |
| Internal RAM (without PCMCIA card) 192 kB program and data | |
| Software designation | Unity Pro |
| Protective treatment | TC |
| Concept | Transparent Ready |
| Number of slots | ≤ 128 |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Maximum size of object areas | 64 %KWi constant words located internal data |
| 64 %MWi internal words located internal data | |
| 64 kB (DFB and EFB function blocks) unlocated internal data | |
| 64 kB (elementary and derived data) unlocated internal data | |
| 16384 %Mi located internal bits | |
| Application structure | 1 fast task |
| 1 master task | |
| 64 event tasks | |
| Execution time per instruction | 0.12 µs Boolean without PCMCIA card |
| 0.17 µs word or fixed-point arithmetic without PCMCIA card | |
| 0.17 µs Boolean with PCMCIA card | |
| 0.32 µs word or fixed-point arithmetic with PCMCIA card |
| 1.75...3 µs floating points without PCMCIA card | |
| 1.75...3 µs floating points with PCMCIA card | |
| Number of instructions per ms | 3.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card |
| 4.59 Kinst/ms 100 % Boolean with PCMCIA card | |
| 5.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | |
| 6.72 Kinst/ms 100 % Boolean without PCMCIA card | |
| System overhead | 0.35 ms fast task |
| 1 ms master task | |
| Marking | CE |
| Local signalling | 1 LED green processor running (RUN) |
| 1 LED red processor or system fault (ERR) | |
| 1 LED red I/O module or configuration fault (I/O) | |
| 1 LED yellow activity on TER or AUX terminal port (TER) | |
| 1 LED green Ethernet TCP/IP port ready (RUN) | |
| 1 LED red Ethernet TCP/IP port fault (ERR) | |
| 1 LED red collision detection (COL) | |
| 1 LED yellow Ethernet link diagnostics (STS) | |
| 1 LED yellow transmission activity (TX) | |
| 1 LED yellow reception activity (RX) | |
| Current consumption | 1900 mA 5 V DC |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXP573634M to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXP573634M we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXP573634M, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TSXP573634M for credit when ordering from MRO Electric
Overview of the TSXP573634M
The Schneider Electric TSXP573634M is a high-performance Unity Processor designed for the Modicon Premium automation platform. This double-format CPU module is crafted for industrial users seeking powerful processing capabilities, robust I/O handling, and seamless integration into Ethernet-based architectures. As a Unity Pro software-compatible unit, the TSXP573634M is part of Schneider's Transparent Ready Concept, enabling open and easy communication in automation networks. The module is ideal for controlling medium to large-scale processes in manufacturing, utilities, and process industries.
The TSXP573634M excels in processing efficiency, supporting up to 1024 discrete I/O points and 128 analog I/O points. It also includes handling up to 32 application-specific channels and up to 15 process control loops, expandable to 45 for simple loops. With support for one fast task, one master task, and up to 64 event tasks, this CPU ensures that even the most complex automation programs run smoothly. Execution speeds are equally impressive—Boolean operations are executed in just 0.12 µs without the PCMCIA card, and up to 0.17 µs with it, while fixed-point arithmetic operations are nearly as fast.
The processor supports both internal RAM and expandable memory via a PCMCIA card. Users can access 192 kB of shared program and data RAM without the card. When the 16,384 kB PCMCIA card is installed, program RAM increases to 1792 kB and dedicated data storage to 192 kB. The memory architecture allows storing and manipulating vast data, including 64% KWi constant words, 64% MWi internal words, 64 kB of unlocated function block data, and over 16,000 located internal bits.
This model includes comprehensive communication options, including an integrated Ethernet TCP/IP RJ45 port with 10BASE-T/100BASE-TX support and two female mini DIN RS-485 serial links supporting up to 115 kbit/s. These interfaces provide flexible connectivity to local and remote devices, ensuring reliable communication across the system. As a Transparent Ready device, the CPU simplifies network design and diagnostics by seamlessly connecting to the rest of your industrial network.
The TSXP573634M includes a full suite of LED indicators for user feedback and diagnostics. These include indicators for processor operation, system faults, I/O faults, communication activity on terminal ports, and Ethernet status. This built-in signaling simplifies troubleshooting and reduces downtime during malfunctions.
MRO Electric and Supply offers the TSXP573634M with a 2-year warranty, ensuring reliable operation and peace of mind. The unit is available immediately and includes free shipping, allowing customers to implement or replace this powerful CPU without delay.
What is the TSXP573634M used for?
It is a Unity Processor for controlling medium to extensive industrial automation processes.
How many discrete I/Os does it support?
The CPU supports up to 1024 discrete input/output points.
Does it support analog I/Os?
Yes, up to 128 analog input/output channels are supported.
What software is compatible with it?
The processor is compatible with Schneider Electric's Unity Pro software.
What kind of memory expansion is available?
It supports a PCMCIA card with 16,384 kB for additional data storage.
What Ethernet standards does it support?
The CPU supports 10BASE-T and 100BASE-TX Ethernet connections.
How fast is the instruction execution?
Boolean instructions are executed as fast as 0.12 µs without the PCMCIA card.
What are the communication ports included?
It includes one Ethernet RJ45 port and two RS-485 mini DIN serial ports.
Is this CPU CE marked?
Yes, it carries CE certification for compliance with European standards.
Where can I buy the TSXP573634M?
It is available from MRO Electric and Supply with free shipping and a 2-year warranty.
