TSXPBY100

2-year Warranty

Same Day Shipping

Schneider Electric TSXPBY100

MODICON MICRO PROFIBUS DP V0 - MODULE KIT - FOR PREMIUM PLC
5/5
1 rating

1 Available


Free Shipping

2 Year warranty

Part NumberTSXPBY100
ManufacturerSchneider Electric
TypeCPUs
Model #TSX-PBY-100
Warranty2 Year
Range of productProfibus DP
Product or component typeProfibus DP V0 module kit

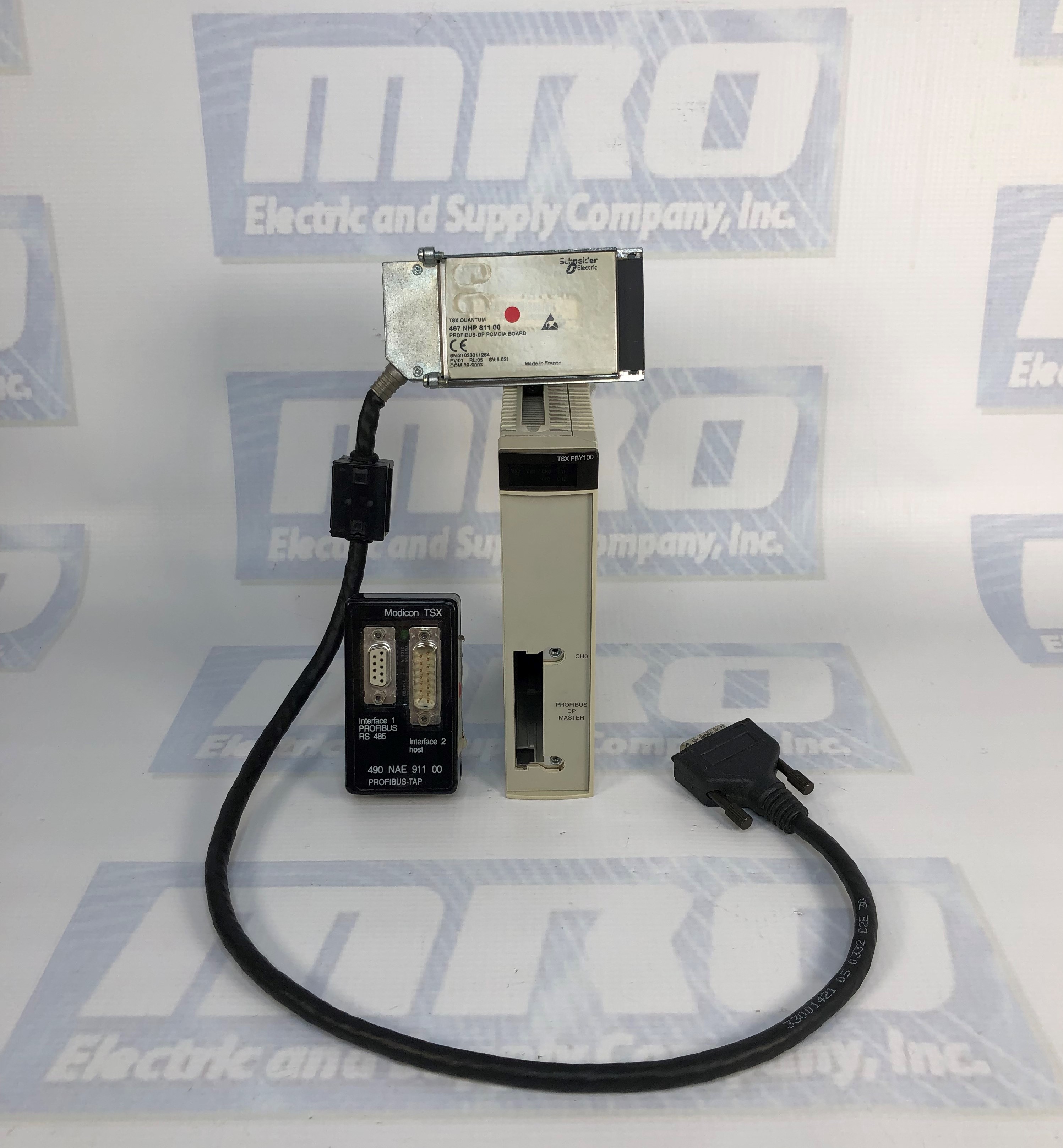

Kit compositionProfibus DP PCMIA card with its integrated connecting cable (0.6 m)
Host module for the PCMCIA card
T-junction box enabling the tap link of the main bus
Product compatibilityFor Premium PLC
For Atrium slot-PLC
Structure typeIndustrial bus
Physical interfaceRS485
Method of accessMaster class 1
Master class 2
Mode of transmissionNRZ
Transmission support mediumTwisted shielded pairs cable
Transmission rate12 Mbit/s for bus length of 100 m without repeater
12 Mbit/s for bus length of 400 m with 3 repeaters
9.6 kbit/s for bus length of 1200 m without repeater
9.6 kbit/s for bus length of 4800 m with 3 repeaters
Number of slave126
Number of inputs3872
Number of outputs3872
Communication serviceRead/Write DP slave I/O data - class 1 master
Transfer slave diagnostic data - class 1 master
Set slave parameters (on power up) - class 1 master
Check slave configuration (on power up) - class 1 master
Profibus FMS message handling not supported - class 1 master
Manage monitoring request (Global CONTROL and Get Master Diag) - class 2 master
No master/master dialogue - class 2 master
Profibus FMS message handling not supported - class 2 master
Current consumption400 mA at 5 V DC (internal)
Module formatStandard

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXPBY100 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXPBY100 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXPBY100, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 18 hours and 27 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXPBY100 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXPBY100 Overview

TSXPBY100 - Profibus DP V0 Module Kit by Schneider Electric

The TSXPBY100, crafted by Schneider Electric, stands as a pinnacle in Profibus DP technology. Tailored for Premium PLC and Atrium slot-PLC systems, this module kit elevates industrial bus connectivity. With its meticulous design and robust features, it exemplifies excellence in automation.

Key Features:

1. Seamless Integration:

Explicitly designed for Premium PLC and Atrium slot-PLC systems, the TSXPBY100 ensures seamless integration into existing setups. Its compatibility extends the functionality of these systems, enhancing their performance manifold.

2. Comprehensive Kit Composition:

The kit comprises essential components for Profibus DP connectivity. It includes a Profibus DP PCMIA card, an integrated connecting cable (0.6 m), and a host module for the PCMIA card. Additionally, a T-junction box facilitates the tap link of the main bus, offering comprehensive connectivity solutions.

3. Enhanced Communication Capabilities:

Equipped with Master class 1 and Master class 2 access methods, the TSXPBY100 enables efficient communication. It supports Reading/Writing DP slave I/O data, transferring slave diagnostic data, setting slave parameters on power-up, and checking slave configuration, among other communication services.

4. High-Speed Transmission:

This module kit leverages NRZ transmission mode and twisted shielded pairs cable to achieve impressive transmission rates. With speeds of up to 12 Mbit/s for a bus length of 100 m without a repeater and 9.6 kbit/s for a bus length of 1200 m without a repeater, it ensures rapid and reliable data transfer over considerable distances.

5. Versatile Slave Configuration:

With support for up to 126 slaves, the TSXPBY100 offers unparalleled versatility in system configuration. It accommodates various inputs and outputs, with 3872 and 3872 outputs efficiently catering to diverse industrial applications.

6. Efficient Power Management:

Despite its powerful performance, the TSXPBY100 maintains efficient power consumption. Drawing only 400 mA at 5 V DC internally ensures minimal energy wastage while maximizing operational efficiency.

7. Standard Module Format:

The TSXPBY100 adheres to a standard module format, ensuring compatibility with various industrial setups. Its standardized design simplifies installation and maintenance procedures, streamlining integration into existing systems.

Frequently Asked Questions (FAQ) about the TSXPBY100 Profibus DP V0 Module Kit:

Q: What is the TSXPBY100? A: The TSXPBY100 is a Schneider Electric Profibus DP V0 Module Kit that facilitates Profibus DP connectivity for Premium PLC and Atrium slot-PLC systems in industrial settings.

Q: What components are included in the TSXPBY100 kit? A: The TSXPBY100 kit comprises a Profibus DP PCMIA card with an integrated connecting cable (0.6 m), a host module for the PCMIA card, and a T-junction box enabling the tap link of the main bus.

Q: What communication services does the TSXPBY100 support? A: The TSXPBY100 supports various communication services, including Read/Write DP slave I/O data, transfer of slave diagnostic data, setting slave parameters on power up, and checking slave configuration. However, it does not support Profibus FMS message handling.

Q: What is the transmission rate of the TSXPBY100? A: The TSXPBY100 achieves transmission speeds of up to 12 Mbit/s for a bus length of 100 m without a repeater and 9.6 kbit/s for a bus length of 1200 m without a repeater, utilizing NRZ transmission mode and twisted shielded pairs cable.

Q: What is the TSXPBY100's power consumption? A: The TSXPBY100 internally consumes 400 mA at 5 V DC, ensuring efficient power management while maintaining optimal performance.

Q: Is the TSXPBY100 compatible with other PLC systems? A: The TSXPBY100 is designed explicitly with Premium PLC and Atrium slot-PLC systems. While it may be compatible with similar systems, its optimal performance is guaranteed with the mentioned systems.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
