TSXPSY2600M

2-year Warranty

Same Day Shipping

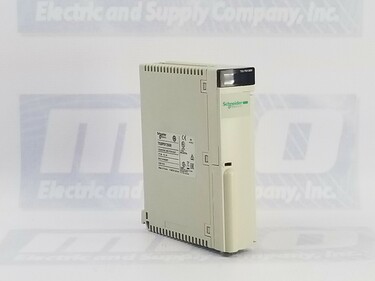

Schneider Electric TSXPSY2600M

MODICON PREMIUM POWER SUPPLY MODULE - 100..240 V AC - 300/500 MA - IP20
5/5
3 ratings

Select Condition

Refurbished

Request Quote

New

3 in stock

$897.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberTSXPSY2600M
ManufacturerSchneider Electric
TypePower Supplies
Model #TSX-PSY-2600M
Warranty2 Year
Module formatStandard
Product or component typePower supply module
Primary voltage100...240 V AC 85...264 V
Network frequency50/60 Hz
Network frequency limits47...63 Hz
Power supply input current500 mA 100 V
300 mA 240 V
Inrush current75 A 240 V
37 A 100 V
I²t on activation2.6 A².s 240 V
0.63 A².s 100 V
It on activation0.067 A.s 240 V
0.034 A.s 100 V
Protection typeShort-circuit protection secondary circuit
Overvoltage protection secondary circuit
Overload protection secondary circuit
Internal fuse 4 A 5 x 20 mm time-delayed primary circuit
Total useful secondary power26 W
Secondary power25 W 5 V DC
15 W 24 V DC
Current at secondary voltage5 A 5 V DC
0.6 A 24 V DC relay power supply
0.5 A 24 V DC sensor power supply
Insulation resistance>= 100 MOhm primary/secondary
>= 100 MOhm primary/ground
MarkingCE
Local signalling1 LED red battery fault (BAT)
1 LED green presence of voltages (OK)
1 LED green presence of sensor voltage (24V)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXPSY2600M to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXPSY2600M we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXPSY2600M, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 2lbs

Want it shipped tomorrow?

  • Order within the next 19 hours and 22 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXPSY2600M for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXPSY2600M Overview

Schneider Electric TSXPSY2600M

The Schneider Electric TSXPSY2600M is a power supply module that is designed for industrial applications and manufactured by Schneider Electric. This power supply module provides power to various electronic devices that require a stable and reliable power source. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Power Supplies from other manufacturers such as Modicon and ABB.

Operation

The TSXPSY2600M has a standard module format and operates with a primary voltage range of 100 to 240 V AC (85 to 264 V). The network frequency range is 50/60 Hz, with network frequency limits of 47 to 63 Hz. The power supply input current for this module is 500 mA at 100 V and 300 mA at 240 V. The inrush current for the module is 75 A at 240 V and 37 A at 100 V. The I²t on activation is 2.6 A².s at 240 V and 0.63 A².s at 100 V, while the It on activation is 0.067 A.s at 240 V and 0.034 A.s at 100 V. These values are important for understanding the performance of the power supply module, as they help determine the amount of power that can be safely delivered to connected devices.

Features

The Schneider Electric TSXPSY2600M is equipped with various protection features to ensure the safety of connected devices. It has short-circuit, overvoltage, and overload protection for the secondary circuit. It also has an internal fuse of 4 A with a 5 x 20 mm time-delayed primary circuit. These protections help prevent damage to connected devices and the power supply module itself.

The TSXPSY2600M provides a total useful secondary power of 26 W. The secondary power output is 25 W for 5 V DC and 15 W for 24 V DC. This makes it suitable for a wide range of industrial applications that require stable and reliable power. The current at secondary voltage is 5 A for 5 V DC, 0.6 A for 24 V DC relay power supply, and 0.5 A for 24 V DC sensor power supply. This current capacity makes it suitable for powering a range of different devices, including sensors, relays, and other electronic components.

Standards

The insulation resistance of the Schneider Electric TSXPSY2600M is greater than or equal to 100 MOhm for primary/secondary and primary/ground. This helps ensure that the power supply module is safe and reliable to use in a range of different applications. The module is CE-marked, indicating that it meets European safety and environmental standards.

Indicators

The TSXPSY2600M has local signaling with three LEDs. There is one red LED to indicate battery fault (BAT), one green LED to indicate the presence of voltages (OK), and one green LED to indicate the presence of sensor voltage (24V). These LEDs provide useful feedback on the status of the power supply module and its connected devices.

Frequently Asked Questions (FAQ):

1. What is the primary function of the Schneider Electric TSXPSY2600M power supply module?

The TSXPSY2600M power supply module serves as a crucial component in industrial automation systems, providing stable and reliable power to various devices and components within the system.

2. What are the primary voltage and network frequency specifications of this power supply module?

The TSXPSY2600M operates with a primary voltage range of 100 to 240 V AC (85 to 264 V), and a network frequency of 50/60 Hz, with limits between 47 to 63 Hz.

3. How much input current does the power supply module draw at different voltage levels?

The input current for the TSXPSY2600M is 500 mA at 100 V and 300 mA at 240 V, ensuring efficient power consumption and compatibility with various electrical systems.

4. What protection features are integrated into the TSXPSY2600M power supply module?

The module includes short-circuit, overvoltage, and overload protection for the secondary circuit, as well as an internal time-delayed fuse (4 A, 5 x 20 mm) for the primary circuit, ensuring the safety and reliability of connected devices.

5. What is the total useful secondary power output of the TSXPSY2600M?

The TSXPSY2600M offers a total useful secondary power output of 26 W, distributed between 25 W for 5 V DC and 15 W for 24 V DC, catering to a wide range of device power requirements.

6. What are the current ratings for the secondary voltage outputs?

The power supply module provides 5 A at 5 V DC, suitable for powering various control systems, as well as 0.6 A for 24 V DC relay power supply and 0.5 A for 24 V DC sensor power supply.

7. How is the TSXPSY2600M power supply module protected against faults or failures?

The module features local signaling through LEDs, including a red LED indicating battery fault (BAT), a green LED indicating the presence of voltages (OK), and another green LED indicating the presence of sensor voltage (24V), allowing for quick identification and troubleshooting of issues.

8. What are the inrush current and activation characteristics of the TSXPSY2600M?

The module exhibits an inrush current of 75 A at 240 V and 37 A at 100 V, with I²t and It values on activation ensuring proper functionality and protection against power surges.

9. What is the insulation resistance of the TSXPSY2600M power supply module?

The insulation resistance of the module is equal to or greater than 100 MOhm for both primary/secondary and primary/ground connections, ensuring electrical safety and reliability.

10. Is the TSXPSY2600M power supply module compliant with regulatory standards?

Yes, the module is marked with CE certification, indicating compliance with applicable safety and quality standards for electrical equipment in the European Economic Area (EEA).

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TSXPSY2600M, take a look at more from our Power Supplies line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TSXPSY2600M products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
