TSXPSY5500M

2-year Warranty

Same Day Shipping

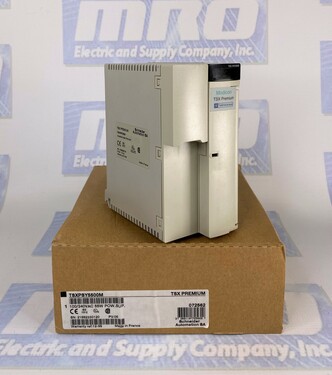

Schneider Electric TSXPSY5500M

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: SCHNEIDER ELECTRIC

DESCRIPTION: Power Supply Module - 24 V DC - 500/1700 Ma - 19 W

PRODUCT TYPE INFO: MODICON PREMIUM

5 in stock


Free Shipping

2 Year warranty

Part NumberTSXPSY5500M
ManufacturerSchneider Electric
TypePower Supplies
Model #TSX-PSY-5500M
Warranty2 Year
Module formatDouble
Product or component typePower supply module
Primary voltage200...240 V AC 190...264 V
100...120 V AC 85...140 V
Network frequency50/60 Hz
Network frequency limits47...63 Hz
Power supply input current500 mA 240 V
1700 mA 100 V
Inrush current38 A 240 V
38 A 100 V
I²t on activation4 A².s 100 V
2 A².s 240 V
It on activation0.11 A.s 240 V
0.11 A.s 100 V
Protection typeShort-circuit protection secondary circuit
Overvoltage protection secondary circuit
Overload protection secondary circuit
Internal fuse 4 A 5 x 20 mm time-delayed primary circuit
Total useful secondary power50 W
Secondary power35 W 5 V DC
19 W 24 V DC
Current at secondary voltage7 A 5 V DC
0.8 A 24 V DC sensor power supply
0.8 A 24 V DC relay power supply
Insulation resistance>= 100 MOhm primary/secondary
>= 100 MOhm primary/ground
MarkingCE
Local signalling1 LED red battery fault (BAT)
1 LED green presence of voltages (OK)
1 LED green presence of sensor voltage (24V)
