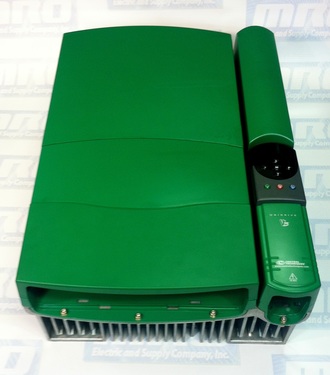

UNI4405

Control Techniques UNI4405

UNI4405

Control Techniques, Unidrive

1 remanufactured in stock
1 year warranty

Instant Price Quote

Categorization
AC Drives

Testimonials

Additional Information

Unidrive UNI4405 AC DRIVE 110KW AC

Specifications

ManufacturerControl Techniques
SeriesUnidrive
Operating ModesOpen Loop
Closed Loop vector
Servo
Regen
Nominal Rating - kW110
Nominal Rating - hp150
Max. Continuous Output Current at 40°C ambient (A)
3kHz202
4.5kHz175
6kHz145
9kHz110
Max. Continuous Output Current at 50°C ambient (A)
3kHz190
4.5kHz150
6kHz125
9kHz95
Typical Input Current (A)181
Max. Continous Output Current (A)224
Minimum Resistance (Ω)5
Instantaneous Powe Rating (kW)120

PDF

PDF Icon

Click to View UNI4405 Manual
