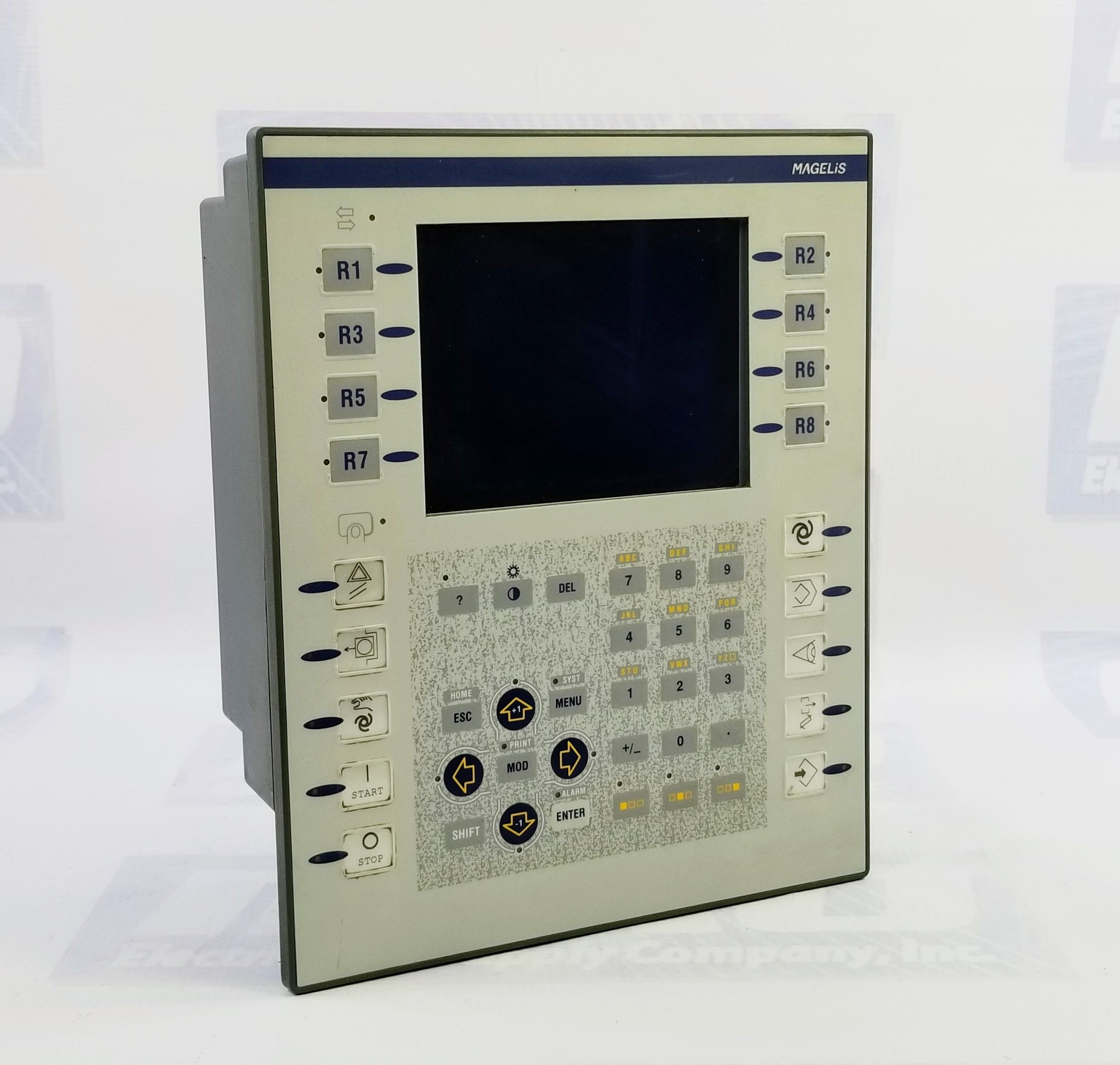

MODICON MAGELIS OPERATOR INTERFACE TERMINAL 5.7INCH 24VDC
| Part Number | XBTF011110 |
| Manufacturer | Schneider Electric |
| Type | HMIs |
| Warranty | 2 Year |
| Rated Voltage | 24 VDC |
| Rated Input | 35 w |
| Side Connection | 9-PIN FEMALE |
| Panel | TFT Screen |
| CONNECTOR | RS232C |
| Destination | PLCs |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed XBTF011110 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this XBTF011110 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty XBTF011110, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty XBTF011110 for credit when ordering from MRO Electric
The Schneider Electric XBTF011110 is a high-performance Modicon Magelis operator interface terminal designed to enhance control and interaction in industrial environments. As part of Schneider Electric's esteemed range of Human-Machine Interfaces (HMIs), this model integrates advanced technology with user-friendly features to offer a versatile and efficient solution for various automation tasks.
The XBTF011110, a notable member of Schneider Electric's Modicon Magelis series, is designed to offer reliable and intuitive operation within industrial settings. This operator interface terminal has a 5.7-inch TFT (Thin Film Transistor) screen that provides clear, high-resolution visuals, making it easy for operators to interact with and monitor system processes. The terminal’s display ensures that all critical information and control elements are presented in a clear and accessible manner, enhancing operational efficiency and reducing the potential for errors.
This HMI operates on a rated voltage of 24 VDC, making it suitable for integration into systems that use low-voltage DC power supplies. With a rated input of 35 watts, the XBTF011110 delivers reliable performance while maintaining energy efficiency. Its power specifications are designed to ensure stable operation and support the terminal's various functionalities without overloading the power system. This efficiency is critical in applications where continuous operation is essential, as it helps to reduce energy consumption and operational costs.
The XBTF011110 has a 9-pin female side connection and an RS232C connector, facilitating seamless communication with other devices and systems. The RS232C interface is a standard serial communication protocol used for data exchange between the HMI and programmable logic controllers (PLCs). This connectivity makes the terminal an effective communication bridge, enabling real-time data exchange and control within automated systems. The 9-pin female connection ensures a secure and reliable physical connection, enhancing the terminal's integration capabilities.
The operator interface terminal features a 5.7-inch TFT screen, which provides vibrant and sharp visual output. TFT technology offers improved color reproduction and contrast compared to traditional LCD screens, making it easier for operators to view and interact with system data under various lighting conditions. The display's size and resolution are well-suited for a detailed graphical representation of control processes, allowing for an efficient and user-friendly interface.
The Schneider Electric XBTF011110 is designed to interface with programmable logic controllers (PLCs), making it an ideal choice for applications requiring robust and reliable human-machine interaction. It is commonly used in industrial automation systems for monitoring, controlling, and displaying real-time data. The terminal's ability to seamlessly connect with PLCs ensures that it can be easily integrated into existing automation frameworks, providing enhanced control and visibility for operators.
The XBTF011110 comes with a 2-year warranty provided by MRO Electric and Supply, offering users peace of mind regarding the product's reliability and durability. Additionally, the terminal is available with free shipping, making it a cost-effective option for businesses looking to enhance their automation systems without incurring additional shipping costs.
What is the Schneider Electric XBTF011110 used for?
The Schneider Electric XBTF011110 Modicon Magelis is an operator interface terminal designed for industrial automation applications. A human-machine interface (HMI) allows operators to interact with and control automated systems. The terminal visualizes system data, controls, and status updates, facilitating efficient management and monitoring of industrial processes.
What type of screen does the XBTF011110 feature?
The XBTF011110 has a 5.7-inch TFT (Thin Film Transistor) screen. TFT technology provides high-resolution and vibrant color displays, making it easier for operators to view detailed graphical data and interact with the system interface under various lighting conditions.
What are the power requirements for this HMI?
The Schneider Electric XBTF011110 operates on a rated voltage of 24 VDC with a rated input of 35 watts. This low-voltage DC power requirement makes it suitable for integration into systems that use DC power supplies, ensuring stable and efficient operation.
Q4: What types of connections does the XBTF011110 support?
The XBTF011110 features a 9-pin female side connection and an RS232C connector. The RS232C interface is a standard serial communication protocol that allows the terminal to communicate with programmable logic controllers (PLCs) and other devices, facilitating real-time data exchange and control.
How does the XBTF011110 integrate with PLCs?
The XBTF011110 is designed to interface with PLCs, making it an ideal choice for applications requiring reliable communication and control. The terminal uses the RS232C connector to establish a connection with PLCs, enabling real-time monitoring and control of automated processes. This integration ensures operators can effectively manage and oversee system operations from the HMI terminal.
What warranty is provided with the XBTF011110?
The Schneider Electric XBTF011110 has a 2-year warranty provided by MRO Electric and Supply.
Is there any additional cost for shipping this terminal?
No, there is no additional cost for shipping. The Schneider Electric XBTF011110 is available with free shipping from MRO Electric and Supply, making it a cost-effective choice for businesses looking to upgrade their automation systems.
Can the XBTF011110 be used in harsh industrial environments?
Yes, the XBTF011110 is designed for use in industrial environments. Its robust construction and reliable display make it suitable for various applications that must endure operational stresses. However, it's essential to ensure that it operates within the specified voltage and environmental limits to maintain optimal performance and longevity.
How easy is it to install and set up the XBTF011110?
The Schneider Electric XBTF011110 is designed for straightforward installation and setup. It has detailed documentation and user manuals to guide users through installation. The terminal's connectivity options, including the RS232C interface, facilitate easy integration with existing PLC systems, simplifying the setup and configuration process.
What are the benefits of using a TFT screen in this HMI?
The XBTF011110's TFT screen provides several benefits, including a high-resolution display, improved color reproduction, and better contrast than traditional LCD screens. This results in more precise and more detailed visual output, making it easier for operators to read data and interact with the interface. The enhanced display quality helps reduce operator errors and improve overall system management.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like XBTF011110, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our XBTF011110 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
