XBTF032110

2-year Warranty

Same Day Shipping

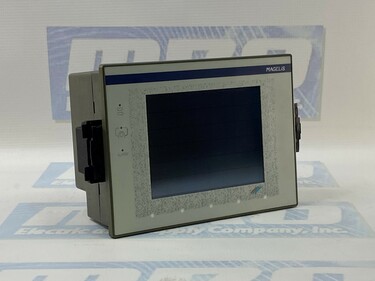

Schneider Electric XBTF032110

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: OPERATOR INTERFACE 5.7IN GRAPHIC TOUCHSCREEN 35W

PRODUCT TYPE INFO: Modicon Magelis

1 Available


Free Shipping

2 Year warranty

Part NumberXBTF032110
ManufacturerSchneider Electric
TypeHMIs
Warranty2 Year
DisplayBack-lit monochrome LCD
Pixel320 x 240 pixels
ScreenColor LCD STN with touch-sensitive
Capacity5.7 in.
Data4 touch-sensitive keys
Memory 8 MB Flash EEPROM
Extension via PCMCIA Type II8 MB or 16 MB
Maximum Number of Pages50 to 450 application, alarm, help, and printout form pages, depending on the memory card used (512 alarms max)
Variables64 per page
CommunicationRS 232 C / RS 485 / RS 422
Downloadable ProtocolsUNI-TELWAY, MODBUS, AEG
Buses and NetworksMODBUS Plus, FIPIO®/FIPWAY® with optional Type III PCMCIA card

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed XBTF032110 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this XBTF032110 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty XBTF032110, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 4lbs

Want it shipped today?

  • Order within the next 5 hours and 4 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty XBTF032110 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric XBTF032110 Overview

The XBTF032110 is a powerful and versatile operator terminal designed by Schneider Electric. It is part of the MAGELiS range of operator terminals and offers advanced functionality and intuitive operation for controlling automated systems. With its sleek design and robust features, the XBTF032110 is an ideal choice for various industrial applications. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.

Display

At the core of the XBTF032110 is its high-resolution color touchscreen display, which measures 3.8 inches diagonally. This display provides clear and vibrant visual feedback, allowing operators to monitor and interact with the system in a user-friendly manner. The touchscreen interface enables easy navigation through menus, pages, and data entry fields, enhancing the overall user experience.

Features

Equipped with a powerful 32-bit RISC processor, the XBTF032110 ensures fast and responsive performance. It can handle complex applications and data-intensive tasks efficiently, enabling smooth operation and real-time control of automated processes. The terminal offers ample memory capacity for storing application programs, data, and graphics, ensuring seamless operation even with large-scale applications.

Options

One of the standout features of the XBTF032110 is its extensive connectivity options. It supports multiple communication protocols, including UNI-TELWAY, FIPIO, FIPWAY, MODBUS, Jbus, MODBUS Plus, and KS, making it compatible with a wide range of industrial devices and equipment. This versatility allows seamless integration into existing automation systems, providing flexibility and convenience for system integration.

Function Keys

The XBTF032110 also features a variety of function keys, both static and dynamic, which can be customized to perform specific actions or access different pages within the application. These keys enable quick and direct access to critical functions, enhancing operator efficiency and productivity. Each key can be assigned a label or bitmap image, providing visual cues and simplifying operation.

Software

The software development environment for the XBTF032110 is the XBTL1004, a comprehensive development software package. It runs on PC compatible with Windows 95, 98, 2000, or NT 4.0 operating systems. The XBTL1004 software offers a WYSIWYG (what you see is what you get) interface, allowing designers to create application pages, alarm pages, help pages, recipe pages, and form pages with ease. It supports the import of graphics and symbols created in other applications, providing flexibility and versatility in designing the operator interface.

Moreover, the XBTF032110 is designed for multilingual support, allowing operators to interact with the terminal in their preferred language. Schneider Electric offers software packages for the XBTF032110 that include different language options, such as French, English, German, Spanish, and Italian, ensuring accessibility and usability for operators worldwide.

In summary, the XBTF032110 operator terminal from Schneider Electric is a feature-rich and versatile solution for controlling automated systems. With its high-resolution color touchscreen, powerful processor, extensive connectivity options, customizable function keys, and multilingual support, it provides an intuitive and efficient user experience. Whether used in industrial processes, manufacturing plants, or any other automation application, the XBTF032110 delivers reliable performance and seamless integration, making it an excellent choice for operators and system integrators alike.
