XBTGC2330T

2-year Warranty

Same Day Shipping

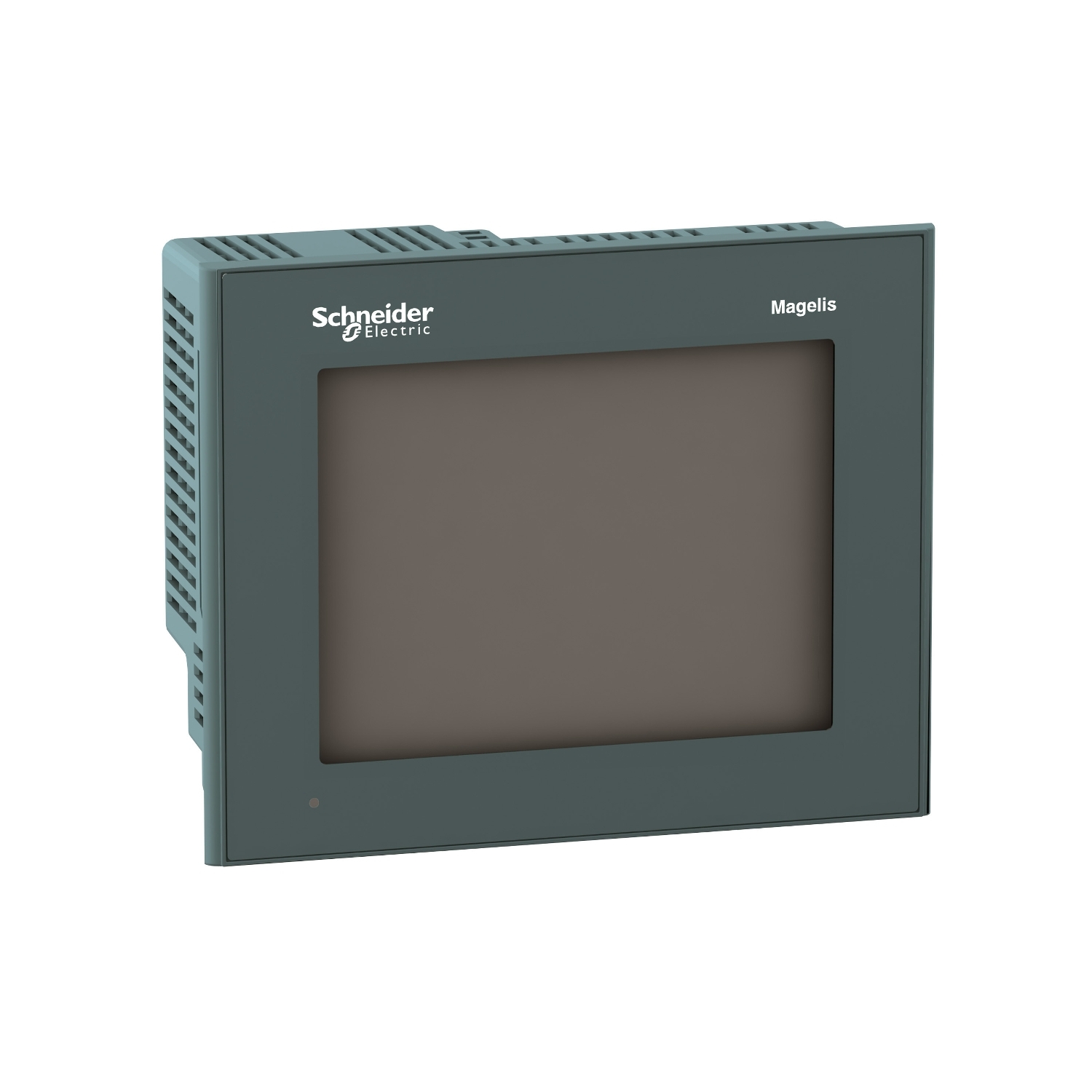

Schneider Electric XBTGC2330T

5”7 LCD TFT COLOR CONTROLLER PANEL - 16 INPUTS/16 OUTPUTS SOURCE

Available


Free Shipping

2 Year warranty

Part NumberXBTGC2330T
ManufacturerSchneider Electric
TypeHMIs
Warranty2 Year
Range of productMagelis XBT GC, GT/GK with control
Product or component typeSmall touch HMI controller
Display size5.7 inch
Display typeBacklit colour TFT LCD
Display colour65000 colours
Pixel resolution320 x 240 pixels QVGA
Touch panelAnalogue
[Us] rated supply voltage24 V DC
SupplyExternal source
Supply voltage limits19.2...28.8 V
Enclosure materialPPT
Backlight lifespan50000 hours
Brightness8 levels via touch panel
Contrast8 levels via touch panel
Character fontASCII
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Korean
Taiwanese (traditional Chinese)
Inrush current<= 30 A
Power consumption27 W
Local signalling1 LED (green) for normal operation
Number of pagesLimited by internal memory capacity
Software designationSoMachine
Operating systemMagelis
Processor nameCPU RISC
Processor frequency131 MHz
Memory descriptionApplication memory, 16 MB
Back up of data, 512 kB
Integrated connection type1 Ethernet TCP/IP RJ45
1 USB port (V1.1) USB type A
Power supply removable screw terminal block
COM1 serial link male SUB-D 9 <= 115.2 kbits/s RS232C/RS422/RS485
I/O expansion capacity3 M238 modules
Realtime clockBuilt-in
Downloadable protocolsModbus
Modbus TCP/IP
Third party protocols
Uni-TE
Fixing modeBy 4 screw clips (1.6...5 mm thick panel)
MarkingCE
Discrete input number16
Discrete input voltage24 V
Discrete input voltage typeDC
Number of common point1I/2O
Input voltage limits20.4...28.8 V
Discrete input logicSource
Discrete input current5 mA on other I0.i
6.5 mA on I0.0, I0.2, I0.4, I0.6
Input impedance3.7 kOhm on I0.0, I0.2, I0.4, I0.6
4.7 kOhm on other I0.i
Filter time0.5...20 ms at state 0
0.5...20 ms at state 1
Isolation between channelsNone
Discrete output number16
Discrete output typeTransistor
Discrete output voltage24 V
Output voltage limits20.4...28.8 V
Discrete output logicSource
Discrete output current0.2 A
Current per output common1.6 A
Response time500 µs at state 0 other Q0.i
5 µs at state 1 Q0.0...Q0.3
500 µs at state 1 other Q0.i
5 µs at state 0 Q0.0...Q0.3
[Ures] residual voltage<= 0.5 V at state 1
Leakage current0.1 mA
Short circuit protection2.5 A fuse
Height135 mm
Width167.4 mm
Depth77.6 mm
