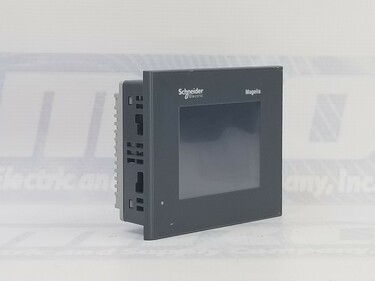

MODICON MAGELIS TOUCHSCREEN PANEL 320 X 240 PIXELS QVGA-3.8"-24 V
| Part Number | XBTGT1105 |
| Manufacturer | Schneider Electric |
| Type | HMIs |
| Warranty | 2 Year |
| Range | Harmony XBTGT |
| Category | Advanced touchscreen panel |
| Display size | 3.8 inch |
| Display characteristics | Backlit monochrome STN LCD |
| Backlight lifespan | 10000 hours with red 50000 hours with amber |
| Brightness | 16 levels |
| Display resolution | 320 x 240 pixels QVGA |
| Contrast | 8 levels via touch panel |
| Operating system | Harmony |
| Processor name | CPU RISC |
| Display color | Amber or red 8 levels of grey |
| Processor name | CPU RISC |
| Software designation | Vijeo Designer |
| Memory | 512 kB SRAM back up of data with lithium battery back-up 32 MB flash EPROM application memory |
| Power supply | 24 V DC |
| Processor frequency | 200 MHz |
| Touch panel | Analogue |
| Supply source | External |
| Signalling | 1 LED (green) for normal operation |
| Inrush current | 60 A |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed XBTGT1105 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this XBTGT1105 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty XBTGT1105, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty XBTGT1105 for credit when ordering from MRO Electric
The Harmony XBTGT1105 Advanced Touchscreen Panel is a powerful and versatile human-machine interface (HMI) device designed to streamline industrial operations. With its impressive features and rugged design, this touchscreen panel is well-suited for a wide range of applications in various industries.
At the heart of the XBTGT1105 is its 3.8-inch backlit monochrome STN LCD display. This panel offers a crisp and clear visual experience with a display resolution of 320 x 240 pixels (QVGA). The display is available in two distinct colors: amber and red, offering users the flexibility to choose the most suitable color scheme for their application.
The touchscreen panel is powered by a capable CPU RISC processor with a clock frequency of 200 MHz. This processing power ensures smooth and responsive operation, making it ideal for real-time control and monitoring tasks.
The XBTGT1105 boasts 512 kB of SRAM for data backup, supported by a lithium battery backup system, ensuring data integrity. Additionally, it offers 32 MB of flash EPROM application memory for storing configurations and application data. The integrated connections include a removable screw terminal block connector for power supply, RJ45 connector COM1 for serial communication (RS232C/RS485), and a USB type A master port (V1.1) compatible with Modicon M340 terminal port communication.
The touchscreen panel features an analog touch panel for intuitive interaction. It offers a long backlight lifespan of up to 50,000 hours with amber, ensuring long-term reliability. Users can adjust brightness levels (16 levels) and contrast (8 levels) via the touch panel to suit their preferences.
Designed for industrial environments, the XBTGT1105 is built to withstand tough conditions. It complies with various industry standards and certifications, including CSA, UL, FCC, EN, and IEC standards, ensuring its reliability and safety in industrial settings. The device is also CE-marked, demonstrating its compliance with European standards.
The panel's front and enclosure are constructed from PPT (Polyphenylene Terephthalate), providing durability and resistance to environmental factors. Its NEMA 4X front panel rating makes it suitable for indoor use, offering protection against dust and water ingress.
The XBTGT1105 can operate effectively in a temperature range from 0°C to 50°C, making it adaptable to varying industrial conditions. It can also withstand storage temperatures from -20°C to 60°C.
The panel supports a range of downloadable protocols, including Telemecanique Modicon Modbus, Mitsubishi Melsec third-party protocols, Omron Sysmac third-party protocols, Rockwell Automation Allen-Bradley third-party protocols, and Siemens Simatic third-party protocols. This broad compatibility makes it a versatile choice for integration into existing industrial setups.
The device offers excellent resistance to shocks, vibrations, electromagnetic fields, and fast transients, ensuring stable operation even in challenging industrial environments.
FAQs for Schneider Electric XBTGT1105
Q1: What is the Schneider Electric XBTGT1105?
A1: The Schneider Electric XBTGT1105 is a Human-Machine Interface (HMI) from the Harmony XBTGT range. It features a 3.8-inch advanced touchscreen panel, designed for industrial automation applications.
Q2: What type of display does the XBTGT1105 have?
A2: The XBTGT1105 features a backlit monochrome STN LCD display, with a resolution of 320 x 240 pixels (QVGA). The display can show amber or red colors with 8 levels of grey, and it has 16 levels of brightness.
Q3: How long is the backlight lifespan of this HMI?
A3: The backlight lifespan of the XBTGT1105 is approximately 10,000 hours for red and 50,000 hours for amber, ensuring durability and longevity in industrial environments.
Q4: What operating system does the XBTGT1105 use?
A4: The XBTGT1105 runs on the Harmony operating system, making it compatible with Schneider Electric's Vijeo Designer software for creating and managing HMI applications.
Q5: What kind of processor does this HMI use?
A5: The XBTGT1105 is powered by a RISC CPU running at a frequency of 200 MHz, providing efficient processing for industrial automation tasks.
Q6: What is the memory capacity of the XBTGT1105?
A6: This HMI has a 512 kB SRAM for data backup (with lithium battery backup) and 32 MB of flash EPROM for application memory, ensuring ample space for storing critical data and applications.
Q7: What power supply does the XBTGT1105 require?
A7: The Schneider Electric XBTGT1105 requires a 24 V DC external power supply to operate, and it has an inrush current of 60 A.
Q8: Can I adjust the display brightness and contrast?
A8: Yes, the display offers 16 levels of brightness and 8 levels of contrast, which can be adjusted through the touch panel to match specific lighting conditions.
Q9: How does the XBTGT1105 signal its operational status?
A9: The HMI has a single green LED that indicates normal operation, allowing users to quickly verify the status of the device.
Q10: Does the XBTGT1105 come with a warranty?
A10: Yes, MRO Electric and Supply offers a 2-year warranty on the XBTGT1105, providing coverage and ensuring reliability.
Q11: Is free shipping available for the Schneider Electric XBTGT1105?
A11: Yes, free shipping is available for the XBTGT1105 when purchased from MRO Electric and Supply.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like XBTGT1105, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our XBTGT1105 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
