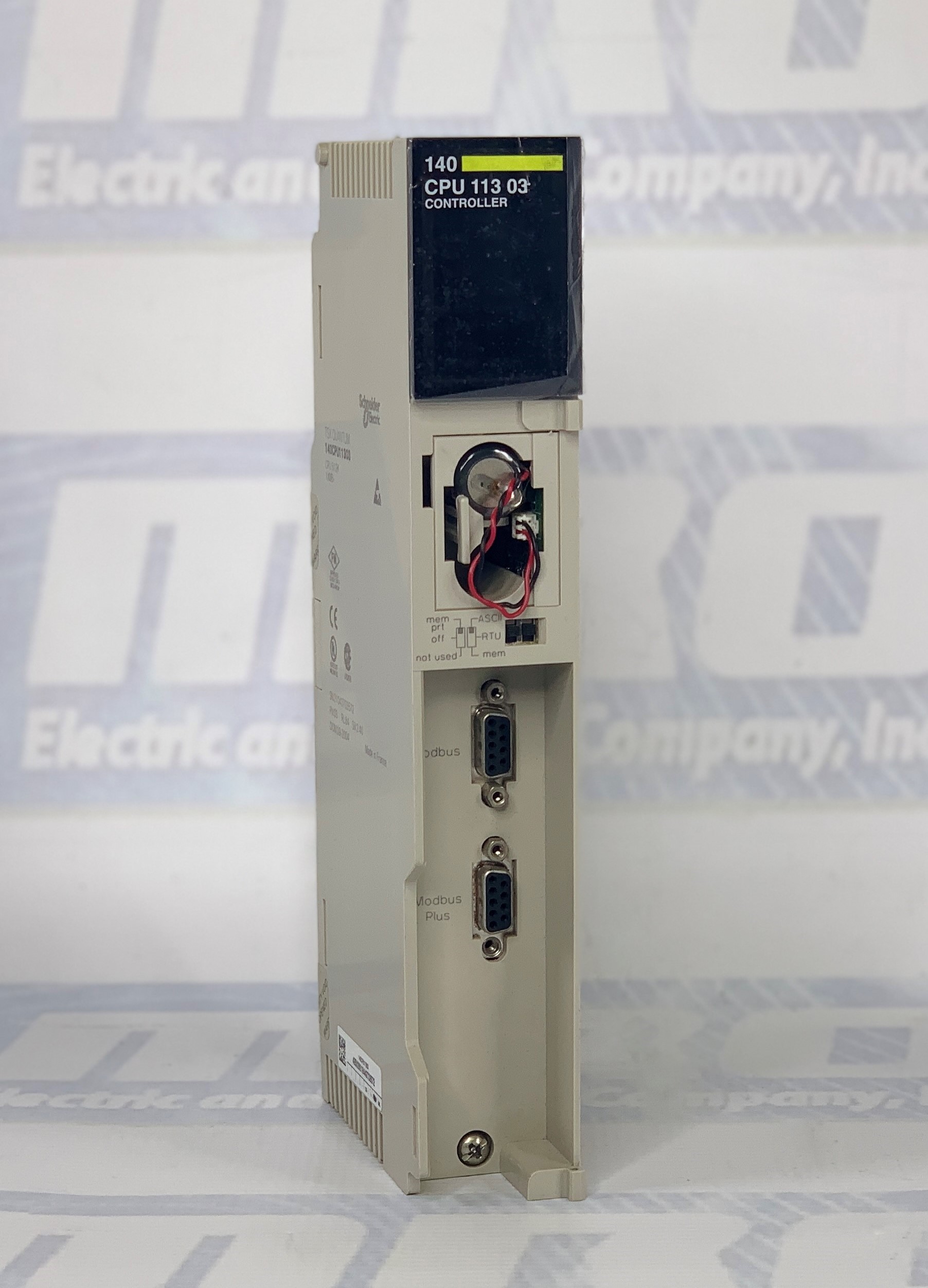

MODICON QUANTUM PROCESSOR 512K RAM 16K USER LOGIC 1XMB+
| Part Number | 140CPU11303 |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | 140-CPU-113-03 |
| Warranty | 2 Year |
| Module format | Standard |
| Range of product | Modicon Quantum automation platform |
| Product or component | Processor |
| type | |
| Software name | Concept |
| ProWORX 32 | |
| Processor name | 80186 |
| Mathematical coprocessor | Without |
| Clock frequency | 20 MHz |
| Memory description | Internal RAM 368 kB |
| Exact time for 1 Kinstruction | 0.3...1.4 ms LL984 |
| Watchdog timer | 250 ms |
| Clock drift | +/-8 s/day at 0...60 °C |
| I/O words | 64 I/64 O remote |
| 64 I/64 O max local | |
| 30 I/32 O distributed | |
| I/O words/network | 500 I/500 O distributed |
| Drops/Network | 63 distributed |
| Number of drops | 31 remote |
| Number of network | 3 distributed |
| 2 remote | |
| Battery type | Lithium 7 µA 210 µA |
| Battery capacity | 1.2 AH |
| Battery life | 10 yr |
| Number of port | 1 Modbus Plus |
| 1 Modbus RS232 | |
| Communication module processor | 2 NOM, NOE, CR, NMS |
| Switch function | Without key switch |
| Marking | CE |
| Bus current requirement | 790 mA |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140CPU11303 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140CPU11303 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140CPU11303, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140CPU11303 for credit when ordering from MRO Electric
The Schneider Electric 140CPU11303 CPU module adopts a standard format, ensuring compatibility and easy integration within the Modicon Quantum automation platform. Designed for seamless operation, this CPU module provides a foundation for efficient and reliable automation processes.
At the heart of the 140CPU11303 module lies a powerful 80186 processor, capable of handling complex tasks with precision and speed. With a clock frequency of 20 MHz, this processor ensures rapid data processing and response times, enhancing the overall performance of the automation system.
The 140CPU11303 module boasts an internal RAM capacity of 368 kB, providing ample space for program storage and execution. Supported by software packages such as Concept and ProWORX 32, users can easily develop and deploy automation programs tailored to their specific requirements, ensuring flexibility and scalability.
Equipped with extensive I/O capabilities, the 140CPU11303 module accommodates various input and output configurations to suit diverse application needs. With support for up to 64 I/O points locally and remotely, as well as distributed I/O networks, this module offers versatility and expandability for complex automation systems.
The module features precise timekeeping capabilities, with a clock drift of +/-8 s/day at 0-60 °C, ensuring accurate synchronization of operations within the automation system. Additionally, a built-in watchdog timer provides enhanced system reliability by monitoring program execution and triggering corrective actions in the event of errors or failures.
With a lithium battery backup system, the 140CPU11303 module ensures uninterrupted operation and data retention in the event of power loss. Featuring a battery capacity of 1.2 AH and a lifespan of up to 10 years, users can rely on the module for long-term performance and reliability in critical applications.
The module offers versatile communication options, including 1 Modbus Plus and 1 Modbus RS232 port, facilitating seamless integration with external devices and networks. Supported by communication module processors such as NOM, NOE, CR, and NMS, the module enables efficient data exchange and network connectivity.
As a mark of quality and compliance, the 140CPU11303 module is CE-marked, indicating conformity with European Union regulations and standards. This certification assures users of the module's adherence to stringent quality and safety requirements, providing peace of mind in demanding industrial environments.
What is the processor type and clock frequency of the 140CPU11303 module?
The 140CPU11303 module is equipped with an 80186 processor with a clock frequency of 20 MHz, ensuring rapid data processing and response times for automation tasks.
What software packages are supported by the 140CPU11303 module for programming?
The 140CPU11303 module supports software packages such as Concept and ProWORX 32, providing users with flexible options for developing and deploying automation programs tailored to their specific requirements.
What are the I/O capabilities of the 140CPU11303 module?
The 140CPU11303 module supports up to 64 I/O points locally and remotely, as well as distributed I/O networks, offering versatility and expandability for complex automation systems.
How long is the battery life of the lithium backup battery in the 140CPU11303 module?
The lithium backup battery in the 140CPU11303 module has a lifespan of up to 10 years, ensuring uninterrupted operation and data retention in the event of power loss.
What communication options are available with the 140CPU11303 module?
The 140CPU11303 module offers versatile communication options, including 1 Modbus Plus and 1 Modbus RS232 port, supported by communication module processors such as NOM, NOE, CR, and NMS, facilitating seamless integration with external devices and networks.
Does the 140CPU11303 module comply with regulatory standards?
Yes, the 140CPU11303 module is CE marked, indicating conformity with European Union regulations and standards, ensuring adherence to stringent quality and safety requirements for industrial applications.
