140CPU11302

2-year Warranty

Same Day Shipping

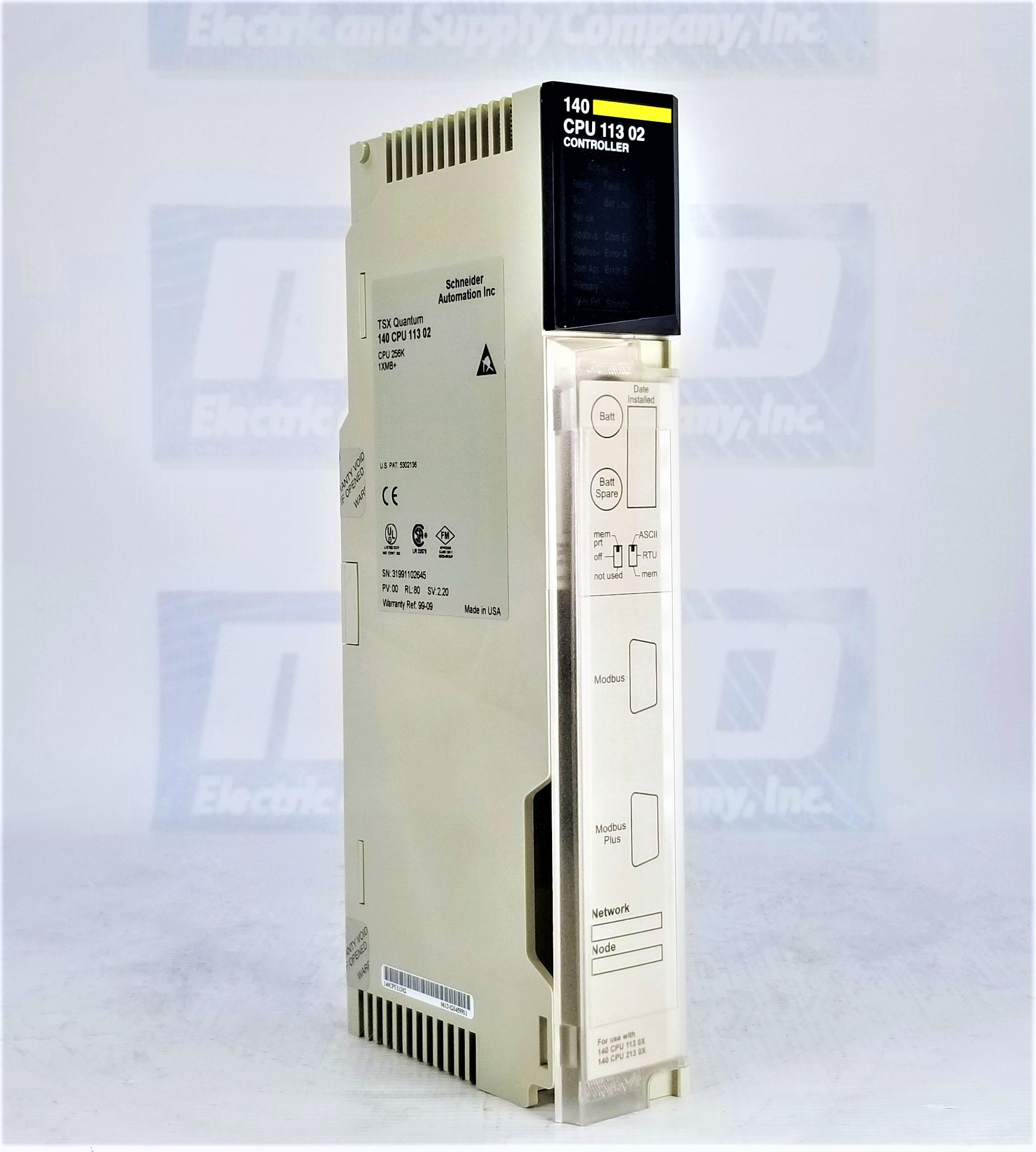

Schneider Electric 140CPU11302

MODICON QUANTUM PROCESSOR 256K RAM 8K USER LOGIC 1XMB

5/5
2 ratings

Select Condition

Refurbished

4 in stock

New

3 in stock

$969.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number140CPU11302
ManufacturerSchneider Electric
TypeCPUs
Model #140-CPU-113-02
Warranty2 Year
Module formatStandard
Software nameConcept
ProWORX 32
Processor name80186
Mathematical coprocessorWithout
Clock frequency20 MHz
Memory descriptionInternal RAM 109 kB
Exact time for 1 Kinstruction0.3...1.4 ms LL984
Watchdog timer250 ms
Clock drift+/-8 s/day at 0...60 °C
I/O words64 I/64 O remote
64 I/64 O max local
30 I/32 O distributed
I/O words/network500 I/500 O distributed
Drops/Network63 distributed
Number of drops31 remote
Number of network3 distributed
2 remote
Battery typeLithium 5 µA 110 µA
Battery capacity1.2 AH
Battery life10 yr
Number of port1 Modbus Plus
1 Modbus RS232
Communication module processor2 NOM, NOE, CR, NMS
Switch functionWithout key switch
MarkingCE
Bus current requirement780 mA

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140CPU11302 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140CPU11302 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140CPU11302, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 23 hours and 22 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140CPU11302 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140CPU11302 Overview

Schneider Electric 140CPU11302 CPU Module

The Schneider Electric 140CPU11302 CPU Module is a cornerstone of industrial automation, offering advanced processing capabilities and seamless integration with Schneider Electric systems. As a standard-format CPU module, it provides a reliable and efficient solution for various applications, from manufacturing to process control. With its robust design and versatile features, the 140CPU11302 CPU Module ensures optimal performance and flexibility in industrial environments.

Powerful Processor and Software:

Equipped with an 80186 processor running at a clock frequency of 20 MHz, the 140CPU11302 CPU Module delivers high-speed processing capabilities for complex automation tasks. It supports software packages such as Concept and ProWORX 32, providing users with comprehensive programming and configuration options to meet their specific requirements. With its mathematical coprocessor, the module enhances computational efficiency and accuracy, ensuring smooth operation even in demanding applications.

Extensive Memory and I/O Capabilities:

The 140CPU11302 CPU Module boasts a generous internal RAM capacity of 109 kB, enabling storage of program logic, data, and variables for efficient control task execution. It supports up to 64 inputs and 64 outputs for remote and local I/O and distributed I/O configurations with up to 30 inputs and 32 outputs. With a network capacity of 500 I/O words, the module facilitates seamless communication and data exchange across distributed systems.

Reliable Timekeeping and Communication:

With its precise watchdog timer and clock drift of +/-8 s/day at 0-60°C, the 140CPU11302 CPU Module ensures accurate timekeeping and synchronization within industrial networks. It features a built-in lithium battery with a capacity of 1.2 AH, providing long-lasting power backup for uninterrupted operation and data retention. The module supports communication via Modbus Plus and Modbus RS232 ports, offering versatile connectivity options for interfacing with external devices and systems.

Scalable Network Configuration:

The 140CPU11302 CPU Module supports flexible network configurations, with up to 63 distributed and 31 remote drops. It enables seamless integration with Schneider Electric networks, allowing users to create scalable and expandable automation systems tailored to their needs. With support for multiple network interfaces, including NOM, NOE, CR, and NMS, the module facilitates efficient data exchange and control across diverse network topologies.

User-Friendly Design and Compliance:

Featuring a user-friendly design with CE marking, the 140CPU11302 CPU Module ensures ease of installation, operation, and maintenance. It does not require a key switch for switch function, simplifying setup and configuration processes. Moreover, the module complies with industry standards and regulations, providing users with peace of mind regarding safety, reliability, and performance.

FAQs about the Schneider Electric 140CPU11302 CPU Module:

What is the Schneider Electric 140CPU11302 CPU Module?

The 140CPU11302 is a CPU module manufactured by Schneider Electric. It is designed for industrial automation applications to control and monitor processes.

What type of processor does the 140CPU11302 CPU Module have?

The module has an 80186 processor running at a clock frequency of 20 MHz, providing high-speed processing capabilities.

What software packages does the 140CPU11302 CPU Module support?

The module supports software packages such as Concept and ProWORX 32, offering comprehensive programming and configuration options.

What are the memory and I/O capabilities of the 140CPU11302 CPU Module?

The module features 109 kB of internal RAM and supports up to 64 inputs and 64 outputs for remote and local I/O, as well as distributed I/O configurations with up to 30 inputs and 32 outputs.

How does the module ensure accurate timekeeping and synchronization?

The module features a precise watchdog timer, clock drift of +/-8 s/day at 0-60°C, and a built-in lithium battery for power backup and data retention.

What communication options are available with the 140CPU11302 CPU Module?

The module supports communication via Modbus Plus and Modbus RS232 ports, offering versatile connectivity options for interfacing with external devices and systems.

Can the module be integrated into existing network configurations?

The module supports flexible network configurations, supporting up to 63 distributed and 31 remote drops, enabling seamless integration into existing network topologies.

Does the module comply with industry standards and regulations?

The module features CE marking and complies with industry standards, ensuring safety, reliability, and performance.

What is the battery life of the lithium battery used in the module?

The lithium battery has a capacity of 1.2 AH and a battery life of approximately ten years.
