MANUFACTURER: Schneider Electric

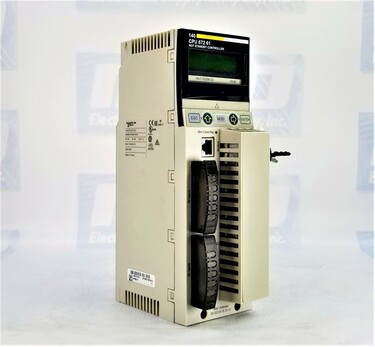

DESCRIPTION: Unity Hot Standby Processor With Single Mode Ethernet
PRODUCT TYPE INFO: Modicon Quantum
Part Number | 140CPU67261 |
Manufacturer | Schneider Electric |
Model # | 140CPU67261 |
Type | CPUs |
Warranty | 2 Year |
Marking | CE |
Product or component type | Unity processor |
Mode of transmission | Single mode |
Clock frequency | 266 MHz |
Number of slots | 2 |
4 | |
10 | |
6 | |
16 | |
Number of racks | 2 - local rack(s) |
Number of distributed I/O station | 63 station(s) - 1 rack(s) - 3 Modbus Plus network(s) |
Number of remote I/O station | 31 - 2 S908 remote I/O rack(s) |
31 - 2 ethernet Quantum remote I/O rack(s) | |
31 - 2 ethernet X80 remote I/O rack(s) | |
Discrete I/O number | Unlimited (31 drops of 28 slots max) - ethernet remote I/O |
0 - local - forbidden in Hot Standby application | |
8000 inputs, 8000 outputs - distributed - per network Modbus Plus | |
31744 inputs, 31744 outputs - remote |
Analogue I/O number | Unlimited (31 drops of 28 slots max) - ethernet remote I/O |
0 - local - forbidden in Hot Standby application | |
500 inputs, 500 outputs - distributed - per network Modbus Plus | |
1984 inputs,1984 outputs - remote | |
Application specific I/O | Accurate time stamping |
Counter | |
High-speed interrupt inputs | |
Serial link | |
Communication service | Ethernet router |
Number of optional modules | 6 ( Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
Maximum number of connections | 1 ( USB) |
2 ( AS-Interface) - distributed | |
4 ( AS-Interface) - remote | |
6 ( Ethernet TCP/IP) - local | |
6 ( Modbus Plus) - local | |
6 ( Profibus DP) - local | |
1 ( Modbus) - RS232/485 Modbus/ASCII | |
Integrated connection type | 1 Modbus Plus with |
1 Modbus with | |
1 USB with | |
1 optic fibre with Hot Standby protocol | |
Checks | Process control |
Hot standby | |
Memory description | Internal RAM 3072 kB - 1536 kB for data |
Expandable 7168 kB - program with PCMCIA card | |
Expandable 8 MB - file storage with PCMCIA card | |
Switch function | Key switch memory port on/off |
Application structure | 1 cyclic/periodic master task - |
1 periodic fast task - forbidden in Hot Standby application | |
128 I/O interrupt tasks - forbidden in Hot Standby application | |
128 interrupt tasks - forbidden in Hot Standby application | |
32 timer interrupt tasks - forbidden in Hot Standby application | |
4 auxiliary tasks - forbidden in Hot Standby application | |
Execution time per instruction | 0.0525...0.075 µs Boolean |
0.045...0.06 µs on word | |
0.045...0.06 µs on fixed-point arithmetic | |
0.4...0.5 µs floating points | |
Number of instructions per ms | 15 Kinst/ms if 65 % Boolean and 35 % numerical |
20 Kinst/ms if 100 % Boolean | |
System overhead | 1 ms - master task |
0.2 ms - fast task | |
Bus current requirement | 2760 mA |
Local signalling | 1 LED green for Ethernet activity (COM) |
1 LED red for Ethernet collision |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140CPU67261 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140CPU67261 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140CPU67261, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140CPU67261 for credit when ordering from MRO Electric
Additional Information
The 140CPU67261 is a Unity Hot Standby Processor With Single Mode Ether... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products come with a 2 year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140CPU67261, take a look at more from our CPUs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140CPU67261 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
