MANUFACTURER: schneider electric

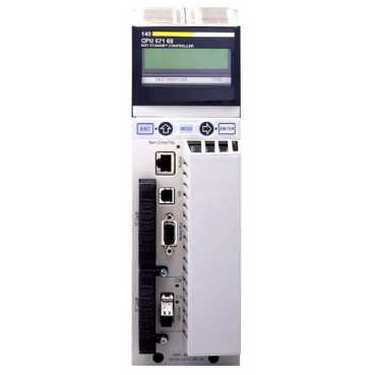

DESCRIPTION: Unity Hot Standby Processor With Multimode Ethernet - 1024 Kb - 266 Mhz - Coated
PRODUCT TYPE INFO: Modicon Quantum
Available
Free Shipping
2 Year warranty
| Part Number | 140CPU67160C |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | 140-CPU-671-60C |
| Warranty | 2 Year |
| Electrical connection | 1 connector, connector type: MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs up to 4 Km |
| 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network | |
| 1 connector, connector type: RJ45 for connecting Modbus bus | |
| 1 connector, connector type: RJ45 for connecting Ethernet network | |
| Product or component | Unity processor |
| Mode of transmission | Multi mode |
| Clock frequency | 266 MHz |
| Number of slots | 10 |
| 16 | |
| 2 | |
| 4 | |
| 6 | |
| Number of racks | 2 - local rack(s) |
| Number of distributed I/O station | 63 station(s) - 1 rack(s) - 3 Modbus Plus network(s) |
| Number of remote I/O station | 16 - 2 ethernet X80 remote I/O rack(s) |
| 31 - 2 ethernet Quantum remote I/O rack(s) | |
| 31 - 2 S908 remote I/O rack(s) | |
| Discrete I/O number | 0 - local - forbidden in Hot Standby application |
| Unlimited (31 drops of 28 slots max) - ethernet remote I/O |
| 8000 inputs, 8000 outputs - distributed - per network Modbus Plus | |
| 31744 inputs, 31744 outputs - remote | |
| Analogue I/O number | 0 - local - forbidden in Hot Standby application |
| 1984 inputs,1984 outputs - remote | |
| Unlimited (31 drops of 28 slots max) - ethernet remote I/O | |
| 500 inputs, 500 outputs - distributed - per network Modbus Plus | |
| Application specific I/O | Accurate time stamping |
| Counter | |
| High-speed interrupt inputs | |
| Serial link | |
| Communication service | Ethernet router |
| Number of optional modules | 6 ( Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections | 1 ( Modbus) - RS232/485 Modbus/ASCII |
| 6 ( Profibus DP) - local | |
| 6 ( Modbus Plus) - local | |
| 6 ( Ethernet TCP/IP) - local | |
| 4 ( AS-Interface) - remote | |
| 2 ( AS-Interface) - distributed | |
| 1 ( USB) | |
| Integrated connection type | 1 optic fibre with Hot Standby protocol |
| 1 USB with | |
| 1 Modbus with | |
| 1 Modbus Plus with |
| Checks | Hot standby |
| Process control | |
| Memory description | Internal RAM 1024 kB - 512 kB for data |
| Expandable 8 MB - file storage with PCMCIA card | |
| Expandable 7168 kB - program with PCMCIA card | |
| Switch function | Key switch memory port on/off |
| Application structure | 1 cyclic/periodic master task - |
| 4 auxiliary tasks - forbidden in Hot Standby application | |
| 32 timer interrupt tasks - forbidden in Hot Standby application | |
| 128 interrupt tasks - forbidden in Hot Standby application | |
| 128 I/O interrupt tasks - forbidden in Hot Standby application | |
| 1 periodic fast task - forbidden in Hot Standby application | |
| Execution time per instruction | 0.4...0.5 µs floating points |
| 0.0525...0.075 µs Boolean | |
| 0.045...0.06 µs on word | |
| 0.045...0.06 µs on fixed-point arithmetic | |
| Number of instructions per ms | 20 Kinst/ms if 100 % Boolean |
| 15 Kinst/ms if 65 % Boolean and 35 % numerical | |
| System overhead | 1 ms - master task |
| 0.2 ms - fast task | |
| Bus current requirement | 2500 mA |
| Local signalling | 1 LED red for Ethernet collision |
| 1 LED green for Ethernet activity (COM) |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140CPU67160C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140CPU67160C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140CPU67160C, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140CPU67160C for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140CPU67160C, take a look at more from our CPUs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140CPU67160C products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
