140DAI55300C

2-year Warranty

Same Day Shipping

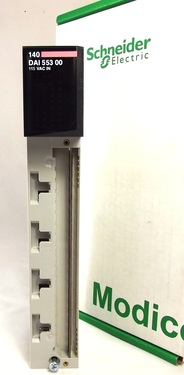

Schneider Electric 140DAI55300C

MODICON QUANTUM DISCRETE INPUT MODULE MODICON QUANTUM - 32 INPUTS - 115 V AC
5/5
1 rating

Available


Free Shipping

2 Year warranty

Part Number140DAI55300C
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-DAI-553-00C
Warranty2 Year
Module formatStandard
Product or component typeVAC discrete input modules
Software nameConcept
Unity Pro
ProWORX 32
Discrete input number32
Group of channels4
Addressing requirement2 input words
Discrete input voltage115 V AC
Input current<= 11.1 mA 57...63 Hz
<= 13.2 mA 47...53 Hz
Voltage state1 guaranteed79...132 V AC at 57...63 Hz
85...132 V AC at 47...53 Hz
Voltage state 0 guaranteed0...20 V AC at 57...63 Hz
0...20 V AC at 47...53 Hz
Input impedance12000 Ohm capacitive at 57...63 Hz
14400 Ohm capacitive at 47...53 Hz
Network frequency limits47...63 Hz
Leakage current<= 2.1 mA
Absolute maximum input132 V continuous
156 V 10 s
200 V 1 cycle
Response time4.9...0.75 ms x line cycle Off-On
7.3...12.3 ms On-Off
Isolation between group1780 Vrms for 1 minute
Isolation between group and bus1780 Vrms for 1 minute
Bus current requirement250 mA
Power dissipation in W<= 10.9 W
Local signalling1 LED green bus communication is present (Active)
1 LED red external fault detected (F)
32 LEDs green input status
MarkingCE

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140DAI55300C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140DAI55300C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140DAI55300C, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 17 hours and 15 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140DAI55300C for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140DAI55300C Overview

The Modicon 140DAI55300C is a discrete input module working with a voltage of 115 V ˞ with 32 inputs. It does this with 4 groups of 8 inputs. It weighs 0.728 lbs.

The ability to add and or remove discrete as well as analog I/O modules has never been easier with the Modicon 140DAI55300C module. This module is compatible with the Quantum CPU, or central processing unit, is a product of Schneider Electric. Schneider Electric is one of the most trusted names in automation and you can be sure the unit 140DAI55300C is on par with all units in this automation line where quality is concerned.

Useful online function modification configuration, also called CCOTF, can be used.  This is changing the configuration on the fly is useful to add or remove discrete or analog I/O modules with the Quantum PCU configuration while it is in RUN mode. Another thing it does is enable Ethernet RIO drops that are supposed to be added in the RUN mode which is going to requires Unity Pro on some CPU modules. You can configure parameters of new I/O modules that already exist right online. This eases interruptions that con be disruptive to your system.

Supporting the CCOTF function are some (version 5 or later of Unity Pro) standalone CPU’s and also (version 4.1 or later Unity Pro) Hot Standby CPU’s.

Which *standalone CPUs and which **Hot standby CPUs support this discrete I/O module? The following are considered compatible with the 140DAI55300C:

*140 CPU31110                                              **140CPU67060

*140CPU43412A (1)                                      **140CPU67160

*140CPU53414B (1)                                      **140CPU67260 (2)

*140CPU43412U                                            **140CPU67261 (2)

*140CPU65150                                               **140CPU67861 (2)

*140CPU65160

*140CPU65260N (2)

*140CPU65860 (2)

The product is considered a VAC discrete input module and works communicating input to the CPU, the brains of your system. It utilizes the 4 channel groups to address the 2 input words using 115 V AC. Response time can be critical. Knowing how quickly your input brings this information is important. So, what exactly is the response time with this Modicon input unit? The response time is 4.9…0.75 ms x line cycle Off-On and 7.3…12.3 ms On-Off.

The local signaling indicators on this unit uses LED to signal. It offers the following: 1 LED (green) bus communication is present and will indicate (Active), 1 LED (red) external when a fault is detected, and will indicate (F), and finally there are 32 LEDs (green) which are there for input status.

Everyone incurs varied monitoring of program disparity, and we understand that you may have a redundant PLC application that requires you to utilize identical application programs on more than one CPU. What happens then? A comparison is then required for both PLC’s and it will occur at once when the system is powered up. It will keep repeating when the standby system is still active. When a difference in the program is detected, by default, the PLC that is in standby will disconnect from the system. Applications for this unit are as varied as automation needs.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
