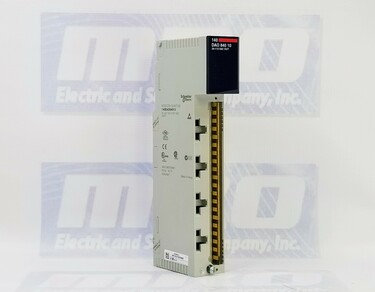

MODICON QUANTUM DISCRETE OUTPUT MODULE - 16 O - 20..132 V AC
Part Number | 140DAO84010 |
Manufacturer | Schneider Electric |
Type | I/O Modules |
Model # | 140-DAO-840-10 |
Warranty | 2 Year |
Module format | Standard |
Product or component type | AC discrete output modules |
Discrete output number | 16 |
Discrete output type | Isolated |
Group of channels | 16 groups of 1 channel |
Supply frequency | 47...63 Hz |
Voltage drop | 1.5 V |
Discrete output voltage | 20...132 V AC |
Addressing requirement | 1 output word |
Absolute maximum output | 200 V during one cycle AC |
156 V for 10 s AC | |
Minimum load | 5 A |
Minimum load current | 2 mA rms 115 V off state leakage/points |
1 mA rms 48 V off state leakage/points | |
1 mA rms 24 V off state leakage/points | |
<= 4 mA rms 20...132 V each point | |
<= 4 A rms any 4 contiguous points | |
<= 16 A rms per module | |
Surge current | <= 30 A during 3 cycles per point |
<= 30 A during 1 cycle per point |
<= 20 A during 2 cycles per point | |
DV/Dt | 400 V/ms |
Response time | <= 0.5 ms at state 1 to state 0 |
<= 0.5 ms at state 0 to state 1 | |
Protection type | Internal by RC filter |
Power dissipation | 1.85 + (1.1 V x total module load current) |
Associated fuse rating | 5 A |
Marking | CE |
Local signalling | 16 LEDs green input status |
1 LED red external fault detected (F) | |
1 LED green bus communication is present (Active) | |
Bus current requirement | 350 mA |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140DAO84010 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140DAO84010 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140DAO84010, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 140DAO84010 for credit when ordering from MRO Electric
What is the UPC code for the 140DAO84010?
The Schneider Electric 140DAO84010 is an AC discrete output module for the Modicon Quantum automation platform. It is designed for high performance and reliability, making it ideal for industrial automation applications requiring isolated control of AC outputs. MRO Electric and Supply offers a two-year warranty and free shipping. With its robust design and advanced features, the 140DAO84010 ensures seamless operation and power in various automation environments.
The 140DAO84010 is a standard-format module, categorized as an AC discrete output module. It consists of 16 discrete outputs, each isolated into separate channels to provide safety and flexibility in industrial operations. Each output channel is grouped individually, allowing precise control and independent monitoring of each output. The isolated outputs protect the connected devices and maintain the module’s reliability in controlling various loads.
This module supports a supply frequency range of 47 to 63 Hz, making it compatible with different power sources. It operates within a discrete output voltage range of 20 to 132 V AC, effectively handling various electrical loads. The voltage drop for each output channel is maintained at 1.5 V, ensuring efficient energy usage and minimal power loss during operation.
The module requires one output word for addressing, simplifying its integration into automation systems. Its absolute maximum output capacity is 200 V AC for one cycle and 156 V AC for up to 10 seconds, making it capable of withstanding short-term voltage fluctuations without affecting its performance or durability.
The 140DAO84010 module offers flexibility in load control with a minimum load requirement of 5 A. It supports up to 4 A rms for any four contiguous points, providing sufficient current capacity to handle different load configurations. Additionally, the module is rated for a maximum load of 16 A rms per module, which is suitable for a wide range of industrial applications.
The module is designed to handle high surge currents, with a capacity of up to 30 A for one or three cycles per output point and 20 A for two cycles per output point. This surge protection capability ensures the module remains safe and functional during brief periods of high current.
The 140DAO84010 module boasts a rapid response time, transitioning from State 0 to State 1 and vice versa in 0.5 ms or less. This fast response ensures accurate signal processing and reliable control in time-sensitive applications. The module includes an internal RC filter to protect against electrical noise and transient voltage spikes, enhancing the system's overall reliability.
The module features comprehensive local signaling, with 16 green LEDs indicating the status of each input. Additionally, one green LED indicates active bus communication and a red LED signals the detection of external faults. These visual indicators facilitate quick diagnostics and troubleshooting, minimizing downtime and ensuring smooth operation.
The power dissipation is calculated as 1.85 W plus 1.1 V times the total module load current, ensuring energy efficiency. The module requires a bus current of 350 mA, which is well within the standard requirements for industrial automation systems.
Q1. How many discrete outputs does the Schneider Electric 140DAO84010 module offer?
The 140DAO84010 module provides 16 discrete outputs, each isolated into separate channels, allowing for precise and independent control of each production.
Q2. What type of protection does the 140DAO84010 module provide for its outputs?
The module features internal protection through an RC filter, which mitigates electrical noise and transient voltage fluctuations. Each output point is safeguarded with a 5 A fuse, preventing overcurrent damage.
Q3. What is the maximum load current that the module can handle?
The module can handle a maximum load of 4 A rms for any four contiguous output points and 16 A rms per module, making it suitable for various industrial applications.
Q4. How does the 140DAO84010 module indicate its operational and fault status?
The module includes 16 green LEDs to indicate input status, a green LED for active bus communication, and a red LED to alert users to external faults, providing comprehensive status monitoring.
Q5. What is the response time for the Schneider Electric 140DAO84010 module?
The response time for this module is ≤ 0.5 ms for transitions between State 0 and State 1, ensuring quick and accurate signal processing for real-time control tasks.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140DAO84010, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140DAO84010 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
