140DDI84100

2-year Warranty

Same Day Shipping

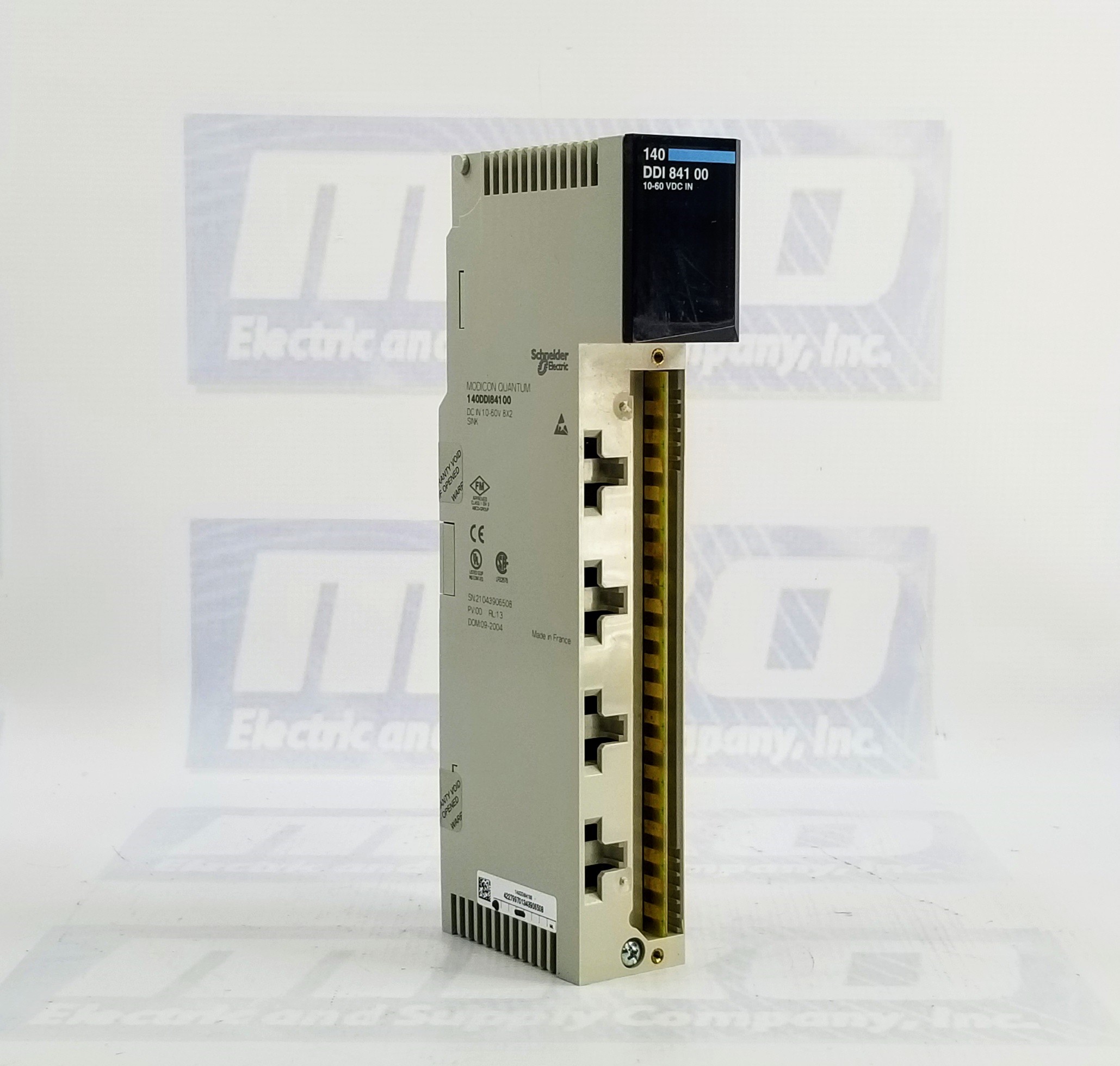

Schneider Electric 140DDI84100

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: Discrete Input Module - 16 I - 10..60 V DC

PRODUCT TYPE INFO: Modicon Quantum

27 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number140DDI84100
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-DDI-841-00
Warranty2 Year
Module formatStandard
Product or component typeDc discrete input modules
Discrete input number16
Group of channels8
Logic inputPositive (sink)
Input voltage limits10...60 V
Input voltage60 V 1...5 mA DC
48 V 2...15 mA DC
24 V 6...30 mA DC
12 V 5...10 mA DC
Voltage state 1 guaranteed9...12 V 12 V +/- 5 %
45...60 V 60 V +/- 20 %
34...48 V 48 V +/- 20 %
11...24 V 24 V +/- 20 %
Voltage state 0 guaranteed0...9 V 60 V +/- 20 %
0...5 V 24 V +/- 20 %
0...10 V 48 V +/- 20 %
0...1.8 V 12 V +/- 5 %
Absolute maximum voltage75 V
Addressing requirement1 input word
Response time4 ms from state 1 to state 0
4 ms from state 0 to state 1
Switching frequency<= 100 Hz
Isolation between group and bus2500 Vrms DC for 1 minute
Isolation between group700 Vrms DC for 1 minute
Power dissipation1 W + (0.62 x number of points on)
MarkingCE
Local signalling16 LEDs green input status
1 LED red external fault detected (F)
1 LED green bus communication is present (Active)
Bus current requirement200 mA

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140DDI84100 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140DDI84100 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140DDI84100, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 15 hours and 7 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140DDI84100 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140DDI84100 Overview

The Schneider Electric Part Number 140DDI84100 is a DC Discrete Input Module designed for industrial automation applications. As an I/O (Input/Output) module, it serves as a crucial interface between field devices and a control system, allowing the monitoring of external digital signals. This module is part of Schneider Electric's product line and comes with a 2-year warranty, ensuring reliability and performance.

Function

The 140DDI84100 module format follows the standard format for ease of integration into various industrial setups. It offers 16 discrete input channels, grouped into 8 channels. The logic input for these channels is positive (sink), meaning it detects a signal when the input voltage is brought to a low level (0 V).

The input voltage limits for this module range from 10 to 60 V. Depending on the input voltage range, the module supports different input current levels. For example, for a 60 V input, the supported current is 1 to 5 mA DC, while for a 48 V input, the supported current is 2 to 15 mA DC.

The module guarantees specific voltage states for accurate signal detection. For voltage state 1, the module guarantees a voltage range that varies depending on the input voltage, ranging from 9 to 12 V for a 60 V input to 12 V ± 5% for a 12 V input. For voltage state 0, the guaranteed voltage range is 0 to 9 V for a 60 V input to 0 to 1.8 V for a 12 V input.

It's crucial to observe the absolute maximum voltage, which is 75 V. Operating beyond this limit can damage the module and connected devices.

Communication

Addressing the module requires 1 input word, which means it occupies one data word in the control system's memory. The response time for switching between voltage states is 4 ms, both from state 1 to state 0 and vice versa. The switching frequency for the module is limited to a maximum of 100 Hz, ensuring stable and reliable operation.

The module provides isolation between the group and the bus, which is essential for safety and noise reduction. The isolation level between the group and the bus is 2500 Vrms DC for 1 minute, and between the individual group members, it is 700 Vrms DC for 1 minute.

Features

The power dissipation of the 140DDI84100 module is 1 W plus an additional 0.62 W for each point connected to it. The power dissipation indicates the amount of heat generated during operation.

The module features local signaling through LEDs. There are 16 green LEDs to indicate the input status, 1 red LED to indicate external fault detection (F), and 1 green LED to show that bus communication is active.

Operation

For proper operation, the module requires a bus current of 200 mA.

The 140DDI84100 module is marked with the CE mark, indicating its compliance with relevant European Union regulations and standards for safety and electromagnetic compatibility.

Overall, the Schneider Electric 140DDI84100 DC Discrete Input Module is a reliable and versatile device that facilitates the integration of external digital signals into industrial control systems. Its high-quality design, protection features, and local signaling capabilities make it suitable for various automation applications, enhancing the efficiency and reliability of industrial processes.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
