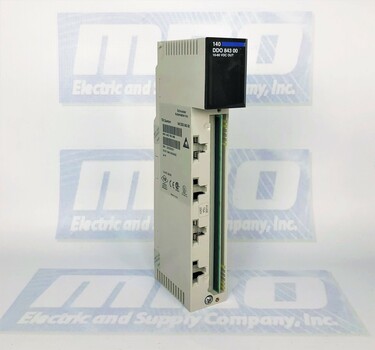

Schneider Electric 140DDO84300

MODICON QUANTUM DISCRETE OUTPUT MODULE- 16 O - 10..60 V DC

5/5
2 ratings

Select Condition

Refurbished

33 in stock

New

7 in stock

$673.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number140DDO84300
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-DDO-843-00
Warranty2 Year
Module formatStandard
Product or component typeDc discrete output module
Discrete output number16
Group of channels2 groups of 8
Discrete output logicNegative logic (sink)
Addressing requirement1 output word
Discrete output voltage10...60 V DC
Output voltage limits10.2...72 V
Absolute maximum output72 V permanent
Voltage drop<= 1 V 2 A
Maximum load current12 A per module
6 A per group
Surge current<= 7.5 A for 50 s
Response time<= 1 ms at state 0 to state 1
<= 1 ms at state 1 to state 0
Leakage current<= 1 mA 60 V
Load inductanceInductance(H) = 0.5/((current(A))² x (switching frequency(Hz)))
Associated fuse rating2 A each point
8 A per group
Isolation between channels and bus2500 Vrms DC for 1 minute
Isolation between group700 Vrms DC for 1 minute
Protection typeInternal output protection by 8 A fuse per group
Power dissipation1 W + (1 V x total module load current)
MarkingCE
Local signalling1 LED green bus communication is present (Active)
1 LED red external fault detected (F)
16 LEDs green input status
Bus current requirement160 mA
