Schneider Electric 140NOE77111

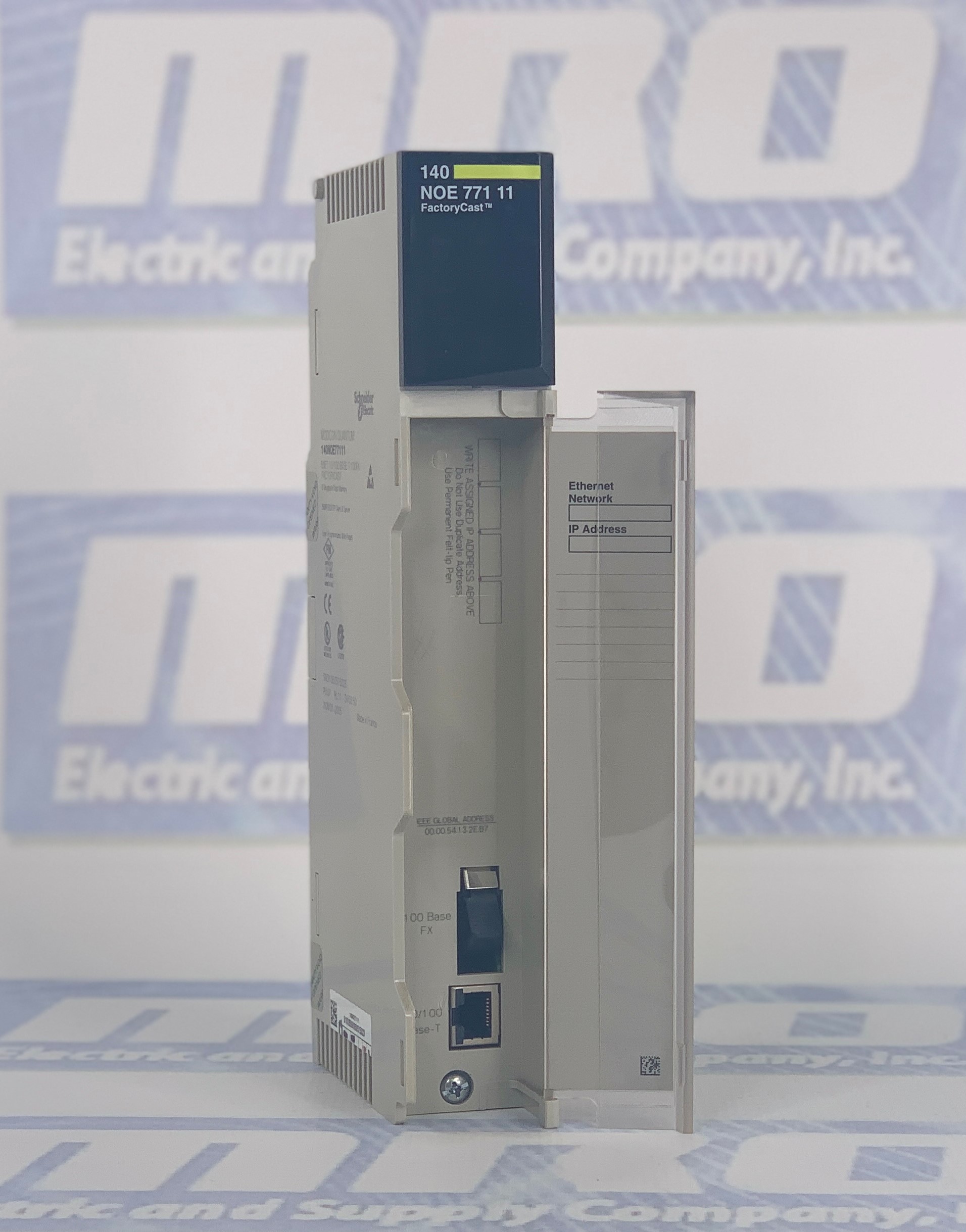

Modicon 140NOE77111 Ethernet TCP/IP

The 140NOE77111 Ethernet TCP/IP module facilitates the integration of Modicon Quantum PLCs into Ethernet networks. The module supports various Ethernet protocols and services, providing users with the ability to seamlessly connect with other devices and systems, such as HMI, SCADA, and other controllers.

Specifications:

• Product Range: Modicon Quantum Automation Platform
• Module Type: Communication
• Communication Port Protocol: Ethernet TCP/IP
• Number of Ports: 2 Ethernet ports
• Data Rate: 10/100 Mbps
• IP Addressing: DHCP or static IP
• Communication Service: Modbus TCP, HTTP, SNMP, FTP, etc.
• Memory: Integrated web server for diagnostics and configuration
• Status LED Indicators: Link, Activity, Status, Error
• Power Consumption: Typically 800 mA at 5V DC

Installation:

• Mount the module into the Quantum backplane in any slot.
• Connect the Ethernet cables to the RJ45 ports on the module.
• Power up the PLC rack, and the module will initialize.

Configuration:

• Use Schneider Electric’s Unity Pro software (or the appropriate software version) to configure the module settings.
• Assign IP addresses, either statically or via DHCP.
• Configure communication parameters, like port numbers and communication services.

Diagnostics:

• The integrated web server allows users to access diagnostic information through a standard web browser.
• The LED indicators on the module provide quick status information.

Usage in Industrial Applications:

The Modicon 140NOE77111 plays a crucial role in industrial applications, especially within Schneider Electric's Modicon Quantum automation platform. By facilitating high-speed Ethernet connectivity for Quantum programmable controllers, it empowers efficient communication and seamless data exchange with other devices and systems. This is particularly vital for industries where real-time data sharing and control are paramount, such as manufacturing, energy, and process automation.

Enhanced Connectivity and Compatibility:

This Ethernet TCP/IP module within the Modicon Quantum Automation Platform offers users the flexibility to integrate Quantum PLCs into Ethernet networks with ease. It boasts compatibility with various Ethernet protocols and services, including Modbus TCP, HTTP, SNMP, and FTP, thereby enabling a wide range of connectivity options. Whether connecting to Human-Machine Interfaces (HMI), Supervisory Control and Data Acquisition (SCADA) systems, or other controllers, this module ensures a seamless interface.

Robust Performance:

With two Ethernet ports supporting data rates of 10/100 Mbps, the 140NOE77111 is well-equipped to handle high data throughput. Users can choose between dynamic IP addressing via DHCP or static IP assignment to suit their network configuration needs. Additionally, the module offers robust diagnostic capabilities, with an integrated web server for diagnostics and configuration, and status LED indicators providing quick visual feedback.

Configuration and Support:

To harness the full potential of this module, users can rely on Schneider Electric's Unity Pro software for configuration and programming. Whether assigning IP addresses, configuring communication parameters, or setting up redundancy for Ethernet connections, Unity Pro streamlines the process. Comprehensive guidance, advanced configuration options, wiring diagrams, and troubleshooting steps can be found in the module's detailed manual, available on Schneider Electric's official website or through their technical support.

FAQ:

Q: Can I use the 140NOE77111 for remote I/O communication?

A: Yes, the module supports remote I/O communication using Modbus TCP.

Q: Is there any redundancy feature for the Ethernet connections?

A: The module comes with two Ethernet ports which can be set up for redundancy or to connect to separate networks.

Q: What software do I use for module configuration?

A: Unity Pro from Schneider Electric is the recommended software for configuration and programming.

Q: Does the module support third-party device integration?

A: Yes, as long as the devices support standard Ethernet protocols like Modbus TCP, the module can integrate with them.

Q: How do I reset the module to factory settings?

A: Refer to the module's manual for the detailed procedure. Typically, there's a hardware reset option available on the module.

FAQ Clarifications:

• Remote I/O Communication: The module indeed supports remote I/O communication via Modbus TCP, extending its versatility in various applications.
• Redundancy Feature: With its two Ethernet ports, users can configure redundancy or connect to separate networks, ensuring network reliability.
• Software for Configuration: Schneider Electric recommends using Unity Pro for module configuration and programming, ensuring compatibility and optimal performance.
• Third-Party Device Integration: Yes, the module can integrate with third-party devices as long as they support standard Ethernet protocols like Modbus TCP, expanding its interoperability.
• Resetting to Factory Settings: For detailed instructions on resetting the module to factory settings, users can refer to the module's manual, which typically includes a hardware reset option for convenience.
