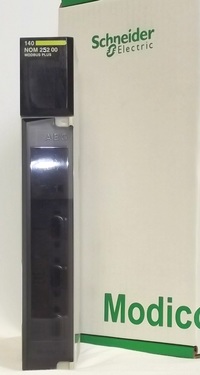

Modicon Quantum Dio Head-End Adaptor - Fibre Optic Cable Medium
Available - call for stock

2 year warranty


Part Number140NOM25200C
ManufacturerSchneider Electric
SeriesModicon Quantum
TypeIO Modules
Warranty2 year
Bus current requirement750 mA
Product or component typeDIO head-end adaptor
Number of port1 Modbus Plus fiber optic single copper
1 Modbus RS232 twisted pair
Transmission rate1 Mbit/s
Electrical connection1 connector RJ45
2 connectors TX/RX
I/O words30 I/32 O
RAM address
Power dissipation in W4 W
Pulse width distortion/jitter>= 5 ns
Wavelength820 nm
Power loss budget11 dB 62.5/125 µm
16.5 dB 100/140 µm
6.5 dB 50/125 µm
Optical transmission-16...-9 dBm 100/140 µm
-19.8...-12.8 dBm 50/125 µm
-3.5...110.5 dBm 62.5/125 µm
Rise/Fall time20 ns
Dynamic range20 dB
Detected silence-36 dBm
Sensitivity scale> 30 dBm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140NOM25200C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 12-month warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140NOM25200C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140NOM25200C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

This product weighs 1lb. Want it shipped tomorrow?

  • Order within the next 16 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140NOM25200C for credit when ordering from MRO Electric

Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140NOM25200C, take a look at more from our Modicon Quantum line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
