MANUFACTURER: Schneider Electric

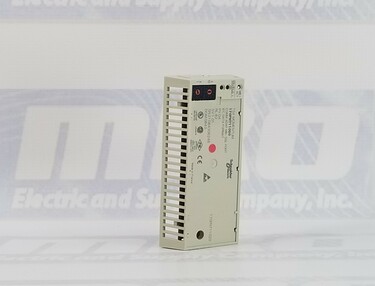

DESCRIPTION: Modbus PLus Communication Adaptor
PRODUCT TYPE INFO: Modicon Momentum
|Electrical connection||1 connector SUB-D 9 for connecting Modbus Plus network|
|Range of product||Modicon Momentum automation platform|
|Product or component type||Modbus Plus communication adaptor|
|Bus manager PLC||Quantum|
|Communication port protocol||Modbus Plus|
|Method of access||Peer to peer|
|Transmission rate||1 Mbit/s|
|Transmission support medium||Twisted pair|
|Topology||Multidrop, device connecting by extension or tap off cable|
|Number of devices||0...31 per segment|
|0...63 all segment|
|Cable length||<= 16404.2 ft (5000 m) with repeater|
|Data format||IEC 61131-2|
|Fail state||Full scale value|
|Fallback to zero|
|Forcing to state zero|
|Supply||From I/O base|
|Local signalling||1 LED green module powered up or communicating (MB + ACT)|
|1 LED red communication error network A (ERR A)|
|1 LED red communication error network B (ERR B)|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 170PNT11020 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 170PNT11020 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 170PNT11020, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 170PNT11020 for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
The 170PNT11020 Communication Adaptor is a pivotal component within the Modicon Momentum automation platform, designed to facilitate seamless communication in industrial automation settings. Operating on the Modbus Plus protocol, this communication adaptor sets a high standard with a 1 Mbit/s transmission rate, making it a reliable choice for demanding applications.
As a Modbus Plus communication adaptor, the 170PNT11020 serves as a bus manager for PLC Premium and Quantum systems. Its industrial-grade structure ensures durability and resilience in challenging environments. The communication port protocol, Modbus Plus, employs a token bus method of access, supporting both peer-to-peer communication and multidrop topologies.
The standout feature of the 170PNT11020 is its impressive 1 Mbit/s transmission rate, ensuring rapid and efficient data exchange. Utilizing a twisted pair as the transmission support medium, this communication adaptor provides flexibility while maintaining high-speed communication.
The communication adaptor supports a multidrop topology, allowing devices to connect by extension or tap-off cable. With the capability to accommodate 0 to 31 devices per segment and up to 63 devices across all segments, the 170PNT11020 offers a scalable solution for diverse automation setups.
In scenarios requiring extended cable distances, the 170PNT11020 proves its adaptability, supporting cable distances of up to 16404.20 ft (5000 m) between devices with the use of repeaters. This feature enhances the reach and flexibility of the automation network.
Adhering to the IEC 61131-2 data format, the communication adaptor ensures compatibility and consistency in data exchange. Fail-safe options, including full-scale value, forcing to state zero, maintain value, and fallback to zero, provide a robust response in case of system failures.
For ease of monitoring and diagnostics, the 170PNT11020 is equipped with LED indicators. A green LED signifies module power-up or communication activity (MB + ACT), while red LEDs (ERR A and ERR B) indicate communication errors on networks A and B, respectively. The electrical connection is facilitated by two SUB-D 9 connectors, one for connecting the Modbus Plus network and another for the redundant Modbus Plus network, ensuring reliability and redundancy.
Certified by CSA and UL, and compliant with FM Class 1 Division 2 standards, the 170PNT11020 is designed to thrive in demanding industrial environments. With protective treatment, resistance to electrostatic discharge, and resistance to electromagnetic fields, this communication adaptor offers reliable performance in challenging conditions.
Operating within a wide ambient air temperature range of 32 to 140 °F (0 to 60 °C) and a storage temperature range of -40 to 185 °F (-40 to 85 °C), the 170PNT11020 remains operational in diverse climates. Additionally, it can function at altitudes up to 16404.2 ft (5000 m), ensuring adaptability to different operational environments.
In conclusion, the Modicon Momentum automation platform's 170PNT11020 Communication Adaptor combines advanced communication capabilities, flexible connectivity, and robust environmental resilience, making it an indispensable component in industrial automation applications.
