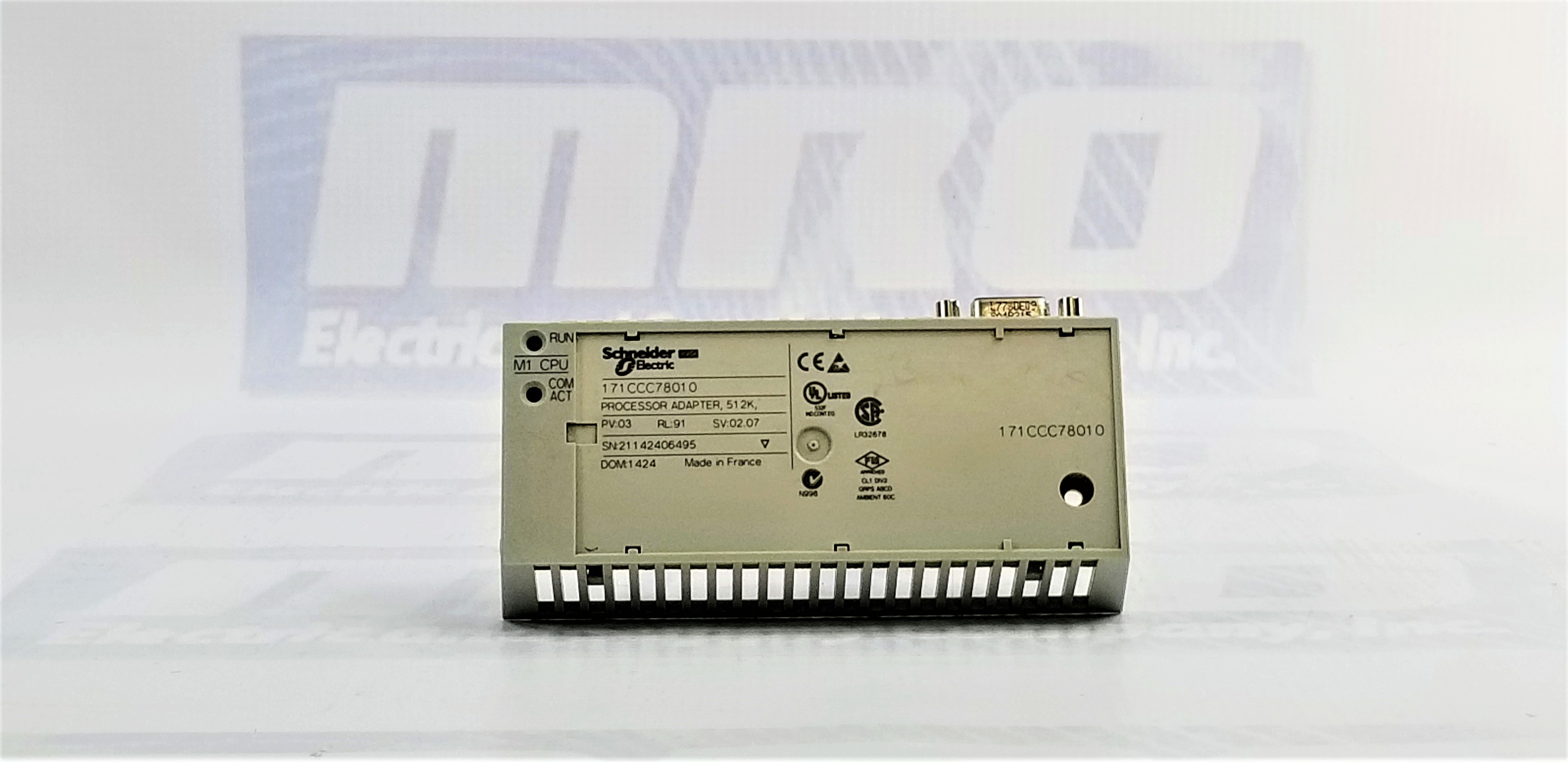

Schneider Electric 171CCC78010

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: M1/M1E processor adaptor - 2 Modbus - 32 MHz

PRODUCT TYPE INFO: Modicon Communication

9 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number171CCC78010
ManufacturerSchneider Electric
TypeCPUs
Warranty2 Year
MarkingCE
Range of productModicon Momentum automation platform
Product or component typeM1/M1E processor adaptor
Software designationConcept V2.6
Modsoft >= V2.5
ProWORX 32
ProWORX NxT V2.0
Communication port protocolModbus
Processor nameX 86 based (INTEL, AMD)
Clock frequency32 MHz
Discrete I/O processor capacity8192 I/8192 O
Memory typeFlash 512 kB
RAM 512 kB
Memory descriptionData 24 kB
Program memory 18 kB LL984
Program memory 240 kB IEC
MaterialLexan
Word length16 bit
[Us] rated supply voltage5.0 V DC +/-5 %
SupplyBy Momentum I/O base
Exact time for 1 K instruction1 ms
Register I/O processor capacity26048 I/26048 O
I/O limit processor capacityI/O local on Modbus
Number of port1 RS232C non isolated
1 RS485
