171CCC96020

171CCC96020

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: M1/M1E processor adaptor - 1 Ethernet, 1 I/O bus - 50 MHz

PRODUCT TYPE INFO: Modicon TSX

2 in stock

Free Shipping
2 Year warranty

Categories

Part Number171CCC96020
ManufacturerSchneider Electric
SeriesModicon Communication
Model #171CCC96020
TypePLC
Warranty2 Year
MarkingCE
Range of productModicon Momentum automation platform
Product or component typeM1/M1E processor adaptor
ConceptTransparent Ready
Level or classClass B10
Software designationConcept V2.6
Modsoft >= V2.5
ProWORX 32
ProWORX NxT V2.0
Communication port protocolEthernet
Processor nameX 86 based (INTEL, AMD)
Clock frequency50 MHz
Web servicesRack viewer
Web page loader software tool
Data editor
Web page loader
Ethernet serviceModbus TCP messaging
I/O scanning
Discrete I/O processor capacity8192 I/8192 O
Memory typeFlash 512 kB
RAM 544 kB
Memory descriptionData 24 kB
Program memory 18 kB LL984
MaterialLexan
Word length16 bit
[Us] rated supply voltage5.0 V DC +/-5 %
SupplyBy Momentum I/O base
Exact time for 1 K instruction1 ms
Register I/O processor capacity26048 I/26048 O
I/O limit processor capacity8192 bits max
I/O words/drop128 I/O Concept
80 I/O ProWORX
Number of port1 Ethernet
1 I/O bus

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 171CCC96020 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 171CCC96020 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 171CCC96020, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 22 hours.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 171CCC96020 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Schneider Electric 171CCC96020 Overview

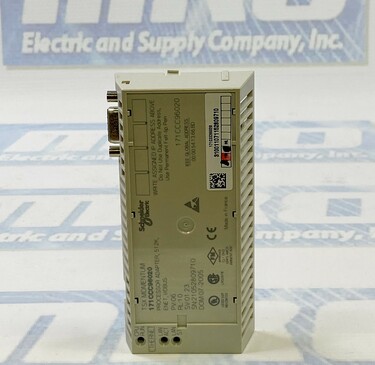

The Modicon M1/M1E processor adaptor module 171CCC96020 is a 1 Ethernet, 1 I/O bus unit manufactured by Schneider Electric for use on a Momentum I/O base. When the Modicon M1 processor is connected to the Momentum I/O base you form a central processing unit. The central processing unit, or CPU, offers programmable logic control to both local and distributed I/O.

Features

The Modicon M1 processor 171CCC96020 has several key features that distinguish it from the other processor adapter modules. The four main features of the 171CCC96020 are an Ethernet port located on the top left, and I/O bus port located on the opposite side top front, 544 K bytes of internal memory, and 50 MHz clock speed. Although the Ethernet port closely resembles a Modbus port connector, the two are not interchangeable. A Modbus connector will not work in the Ethernet port.

The Schneider Electric M1 171CCC96020 processor module has 544 K bytes of internal memory.  This module has 18 K word user memory. The Flash RAM is 512 K bytes on the Modicon processor adaptor module 171CCC96020, and the clock speed is 50 MHz.

The input and output references for the Modicon processor adaptor module 171CCC96020 are 26048 registers. The discrete for this unit is 8192 0x references and 8192 1x references.

The local I/O servicing on the 171CCC96020 module is for all points on any host Momentum I/O base with a watchdog timeout of 335 ms.

Advantages

The processor module front includes 171CCC96020 three LED indicators. The three indicators on the Modicon 171CCC96020 unit are for RUN LAN ACT(IVE), and LAN ST(ATUS). Upon startup, the LED indicator flashes a single flash indicating that it is in good working condition. In RUN the LED lights green and will continue to stay on the green as long as the CPU receives power and is solving logic.  If the RUN LED is not green, the CPU is not powered up or solving logic. If the RUN green is flashing, this is an error code indicating the CPU is in kernel mode.

The LAN ACT (Active) LED indicator is green and may stay solid green or it may be flashing green. The solid green or the flashing green indicated activity on the Ethernet port.

The LAN ST (Status) LED indicator is green and stays on the solid green as long as there is normal operation. The LAN ST LED green fast blink indicates the Ethernet has been initialized when powering up. The LAN ST will blink green 3 times to indicate that no 10BASE-T link pulse is detected. This lets you know to check for a possible loose connection at the cable or hub. The LAN ST LED will flash green 4 times to indicate a detection of duplicate IP addresses.  The LAN ST LED will flash green 5 times to indicate that no IP address has been found. If the LAN ST LED is not lit, this indicates there is no valid MAC address is present.

The Modicon M1/M1E processor adaptor module 171CCC96020 by Schneider Electric comes with a two-year warranty.

Product Description

The 171CCC96020 is a M1/M1E processor adaptor - 1 Ethernet, 1 I/O bus -... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-communication line come with a 2 year warranty from MRO Electric. We also carry Momentum from other manufacturers such as Modicon and ABB.
