MANUFACTURER: Schneider Electric
DESCRIPTION: M1/M1E processor adaptor - 1 Ethernet, 1 I/O bus - 50 MHz
PRODUCT TYPE INFO: Modicon Communication
|Range of product||Modicon Momentum automation platform|
|Product or component type||M1/M1E processor adaptor|
|Level or class||Class B10|
|Software designation||Concept V2.6|
|Modsoft >= V2.5|
|ProWORX NxT V2.0|
|Communication port protocol||Ethernet|
|Processor name||X 86 based (INTEL, AMD) IEC executive|
|Clock frequency||50 MHz|
|Web services||Rack viewer|
|Web page loader|
|Web page loader software tool|
|Ethernet service||I/O scanning|
|Modbus TCP messaging|
|Discrete I/O processor capacity||8192 I/8192 O|
|Memory type||Flash 1 MB|
|RAM 544 kB|
|Memory description||Data 24 kB|
|Program memory 18 kB LL984|
|Program memory 200 kB IEC|
|Word length||16 bit|
|[Us] rated supply voltage||5.0 V DC +/-5 %|
|Supply||By Momentum I/O base|
|Exact time for 1 K instruction||1 ms|
|Register I/O processor capacity||26048 I/26048 O|
|I/O limit processor capacity||8192 bits max|
|I/O words/drop||128 I/O Concept|
|80 I/O ProWORX|
|Number of port||1 Ethernet|
|1 I/O bus|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 171CCC96030 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 171CCC96030 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 171CCC96030, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 171CCC96030 for credit when ordering from MRO Electric

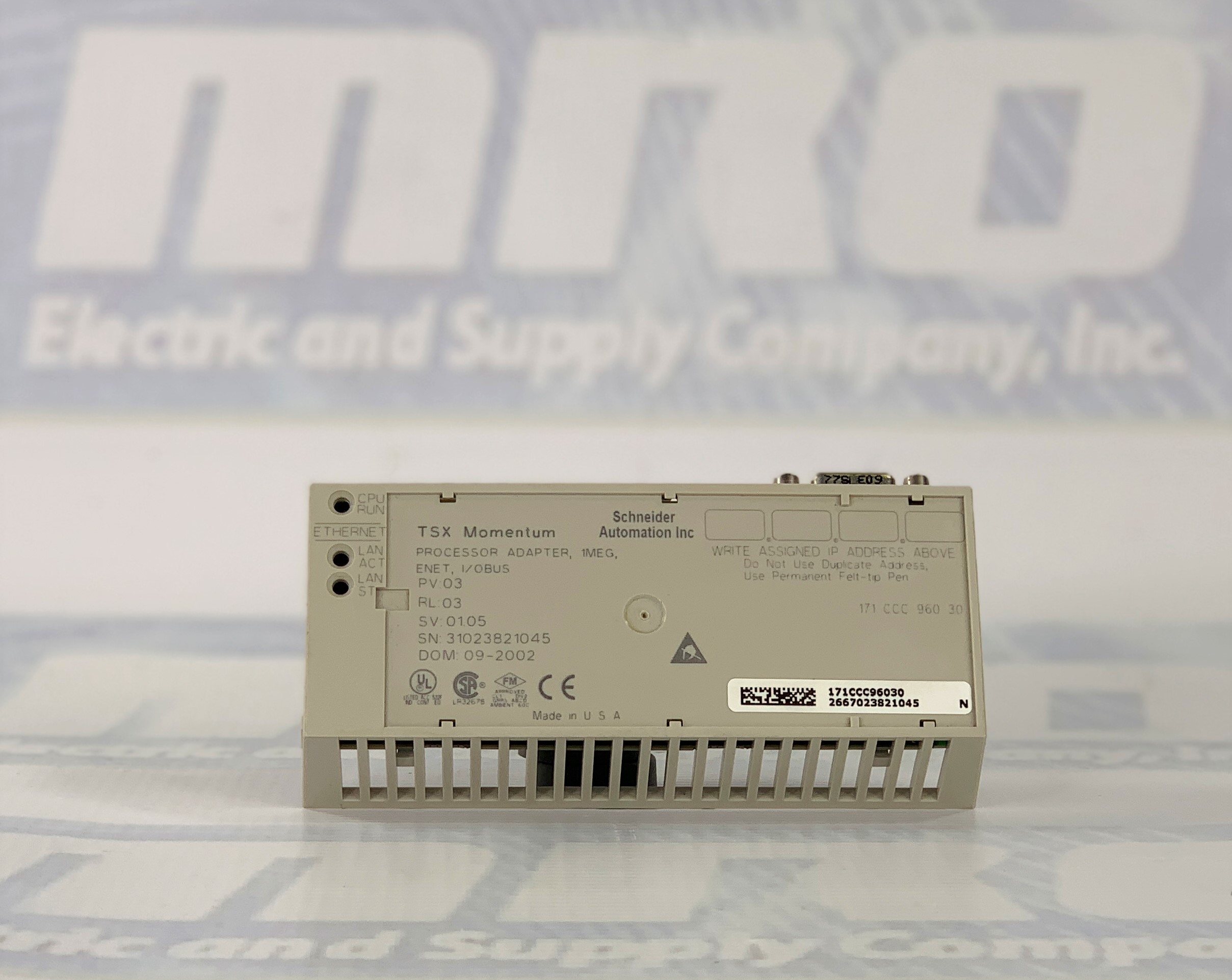

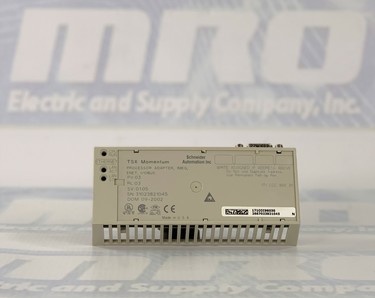

The 171 CCC 960 30 is a M1/M1E Processor Adapter that is part of the Modicon Momentum Quantum™ Ethernet I/O automation platform manufactured by Schneider Electric. This processor module has one Ethernet Port located on the top left, and one I/O bus port located on the top right. It has three LED indicators located on the front. The 171 CCC 960 30 M1 Processor Adapter has 544 K bytes of internal memory and a clock speed of 50 MHz.
The Modicon processor adaptor 171 CCC 960 30 relies on an Ethernet protocol for its communication port. The 171 CCC 960 30 has a variety of web services included. It contains a data editor, rack viewer, web page loader, and web page loader software tool. Its Ethernet services include I/O scannning and Modbus TCP messaging. The process module 171 CCC 960 30 has 544 kB of RAM and 1MB of flash memory. When you combine the M1 processor with ProWORX software, it is able to process 80 I/O words per drop. If you combine the Modiocn 171 CCC 960 30 with Concept, it can process 128 I/O words per drop.
This processor adapter contains 3 LED indicators – RUN, LAN ACT(IVE), and LAN ST(ATUS). If the RUN indicator is Green and on continuously, the CPU has received power and is solving logic. If this indicator is flashing, then there is an error pattern if the CPU is in kernel mode. If this indicator is completely off, then the CPU is not powered up or solving logic. If the LAN ACT(TIVE) indicator is continuously on OR blinking, then this indicates activity at the Ethernet port. If the indicator is off, then there is no activity detected. The LAN ST(ATUS) indicator should be continuously green during normal operation. A fast blink indicates normal Ethernet initialization at power up. Three flashes on the LAN ST indicates that no 10BASE-T link pulse is detected. When no pulse is detected the cable and hub should be checked for disconnection. When the LAN ST displays four flashes, this indicates that a duplicate IP address is detected. When the indicator displays five flashes, the LED indicates that no IP address is detected. If the LAN ST is off, then there is no valid MAC address detected.
The 171 CCC 960 30 processor module is compatible with a variety of software. The software that is compatible includes ProWORX NxT V2.0, ProWORX 32, Modsoft V2.5 and above, and Concept V2.6. The 171CCC96030 unit also contains a I/O Bus port. The Ethernet adaptor on the Modicon processor 171CCC96030 is similar looking to the Modbus connector, but the two are not interchangeable. The Ethernet connector does operate the same as a Modbus connector and will not work in that capacity.
It is important to note that the 984LL exec used in the 171 CCC 960 30 will not operate in a 171 CCC 960 30.
The Modicon 171 CCC 960 30 processor module by Schneider Electric comes with a two-year warranty.
The 171CCC96030 is a M1/M1E processor adaptor - 1 Ethernet, 1 I/O bus -... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products come with a 2 year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
