3RV2711-1DD10

2-year Warranty

Same Day Shipping

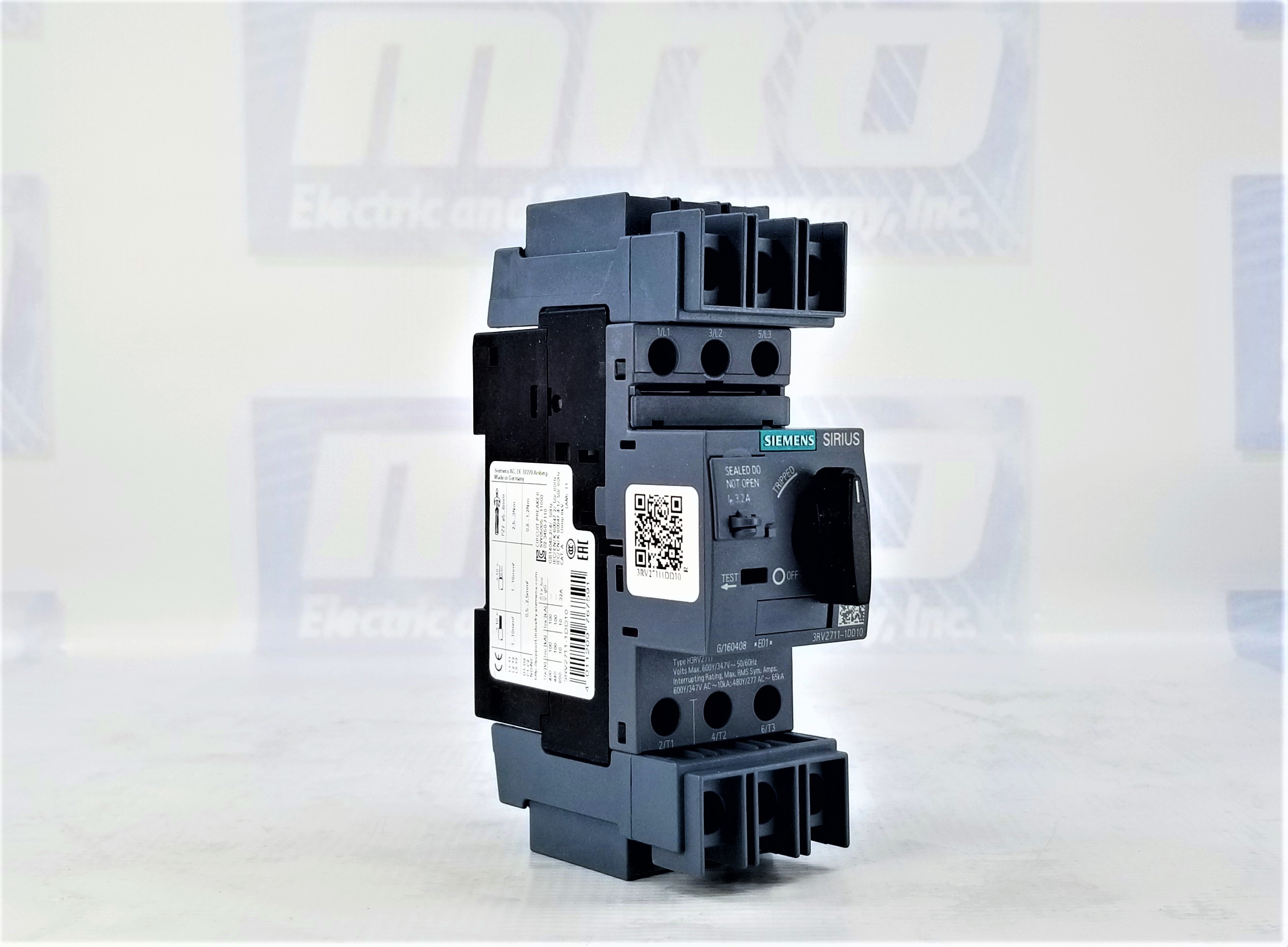

Siemens 3RV2711-1DD10

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Siemens
DESCRIPTION: CIRCUIT-BREAKER SZ S00
PRODUCT TYPE INFO: Sirius


2 in stock


Free Shipping

2 Year warranty

Part Number3RV2711-1DD10
ManufacturerSiemens
TypeContactors
Model #3RV27111DD10
Warranty2 Year
RangeSirius
CategoryS00
DescriptionCircuit breaker
Breaking capacity100 kA at AC, 10 kA at DC
Power rating550W to 2200W
Power loss 6 W
Operation temp-20°C to +60°C
StandardsUL 489/CSA C22.2 No. 5
ProtectionIP20 (front), IP00 (terminal)
MountingScrew and snap on
Frequency50/60 Hz
Pole3-pole

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 3RV2711-1DD10 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 3RV2711-1DD10 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 3RV2711-1DD10, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 17 hours.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 3RV2711-1DD10 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 3RV2711-1DD10 Overview

The 3RV2711-1DD10: Advanced Circuit Breaker for Plant Protection

Overview: Understanding the Role and Specifications

The 3RV2711-1DD10, part of the Sirius product brand by Control Techniques, is a circuit breaker designed for system protection according to UL 489/CSA C22.2 No. 5 standards. It operates within the product type designation of 3RV2 and falls under the category of circuit breakers.

Technical Data: Size, Power Loss, and Insulation

This circuit breaker is classified as Size S00 and boasts a power loss of 6W. With an insulation voltage of 690V and surge voltage resistance rated at 6kV, it ensures reliable operation in demanding industrial environments. Additionally, it offers protection against electrical shock and is rated at IP20 on the front and IP00 on the terminal.

Performance and Endurance: Operating Conditions and Power

Operating temperature ranges from -20°C to +60°C during operation, storage, and transport, ensuring versatility in various environments. The circuit breaker's main circuit comprises three poles for the main current circuit, with operating voltages ranging up to 690V and operating frequencies from 50 to 60 Hz. Its operational power at AC-3 ratings varies from 550W to 2200W, depending on the voltage.

Protection and Monitoring: Short Circuit and Overload Protection

The 3RV2711-1DD10 offers comprehensive protective and monitoring functions, including short-circuit protection. It features a magnetic trip for short-circuit protection and utilizes fuse links for short-circuit protection of the main circuit. With breaking capacities ranging up to 100 kA at AC and 10 kA at DC, it ensures robust protection against electrical faults.

Installation and Dimensions: Mounting and Connectivity

Mounting options include screw and snap-on mounting onto a 35mm standard mounting rail. With dimensions of 144mm x 45mm x 97mm, it offers a compact yet robust design suitable for various applications. Required spacing for installation ensures safety and compliance with installation standards.

Connections and Terminals: Screw-Type Terminals and Electrical Connectors

The circuit breaker features screw-type terminals for the main current circuit, accommodating conductor cross-sections ranging from 1mm² to 10mm². The terminals allow for single or multi-stranded conductors, ensuring flexibility in connectivity. Tightening torque for the terminals is specified between 2.5 to 3 N·m.

Safety and Reliability: Failure Rate and Service Life

With a B10 value of 5000, the 3RV2711-1DD10 demonstrates reliability even under high-demand rates. It has a proportion of dangerous failures of 50% and a failure rate of 50 FIT under low-demand rates, ensuring safety and compliance with industry standards. The proof test interval or service life is specified at 10 years.

FAQ (Frequently Asked Questions)

What standards does the 3RV2711-1DD10 adhere to?

The 3RV2711-1DD10 is designed to meet UL 489/CSA C22.2 No. 5 standards for system protection.

What are the operating conditions for the circuit breaker?

The circuit breaker operates within a temperature range of -20°C to +60°C, making it suitable for various industrial environments.

What types of protective functions does it offer?

The 3RV2711-1DD10 provides comprehensive protection against short circuits and overloads, ensuring the safety of electrical systems.

What is the installation method for the circuit breaker?

The circuit breaker can be mounted using screw and snap-on mounting onto a 35mm standard mounting rail.

What is the service life of the 3RV2711-1DD10?

The proof test interval or service life of the circuit breaker is specified at 10 years, ensuring long-term reliability and performance.
